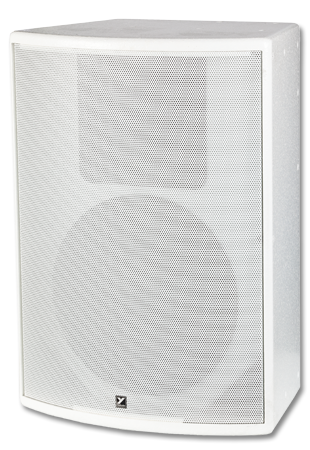

Yorkville C15W - 500 watts - 15" spkr & 1 inch driver on 80°x50° rotatable horn, flying hdwr, plus Omnimount compatible rigging points. White Finish - 8 ohms


Enlarge ↗
×
BrandYorkville ›
Price:$ 949.00




DESCRIPTION
Features
500 Watts / 8 ohms
15-inch Woofer
1-inch Horn Driver with 3-inch Voicecoil
80° x 50° Rotatable Horn
Optional Versatile FH2W Flying Hardware Available
Also Compatible with 120.0WA Omnimount Bracket
Solid Birch Cabinet Construction
Extensive Internal Metal Bracing for Added Security and Long Term Reliability
All Metal Grille
Speakon™ & Terminal Strip Input
Made in Canada

Overview
Additional Omnimount compatible rigging points make the 500 watt C15 an ideal solution for larger commercial installation or House of Worship PA applications.

The optional FH2W hardware kit has been specifically designed to expand the C12W and C15W's already advanced mounting capabilities. A single FH2W installation kit is the ideal rigging solution for installing either Yorkville Coliseum Series C12W or C15W speakers in single point hangs for solo cabinets or two-box arrays.

The staggered hole pattern in the FH2W allows for a multitude of tilt angles simply by moving the shackle towards front or the rear of the bracket. If further down-tilt is required, simply attach an eyebolt in the pullback position of the cabinet in addition to the hang point. When using C12W or C15W cabinets in two cabinet arrays, the FH2W splays the loudspeakers at the ideal angles to minimize interference and lobing.

Specifications
System Type Two Way
Active or Passive Passive
Power Rating (Watts) 500
Biampable No
Nominal Impedance (Ohms) 8
Sensitivity (dB @1Watt/1m) 99
Max SPL (dB) 126
Frequency Response (Hz +/- 3dB) 50 - 20k
Crossover Frequency (Hz) 1100
Driver Configuration 15 inch / 1 inch
HF Driver(s) 1 inch
HF Horn Rotatable ABS Waveguide
HF Dispersion (°H x °V) 80 x 50 Rotatable
HF Protection CTL
Inputs - Speakon 4-pin 2
Inputs - Screw Terminal 1 Pair
Flying Hardware 1/4 inch
Optional Flying Hardware FH2W Flyware is available
Pole Mount Adapter (1 3/8"-3.5cm) No
Enclosure Materials 15mm (5/8inch) 11-ply Russian birch
Grille Perforated Metal
Covering / Finish Two Part White Epoxy
Other Details Has rear mounted rigging points for Omnimount 120.0WA bracket
Dimensions (DWH xbackW, inches) 15.4 x 20.9 x 28.7 x 15.7
Dimensions (DWH xbackW, cm) 39.1 x 53.1 x 72.9 x 39.8
Weight (lbs/kg) 75 / 34.2
Specifications subject to change without notice
