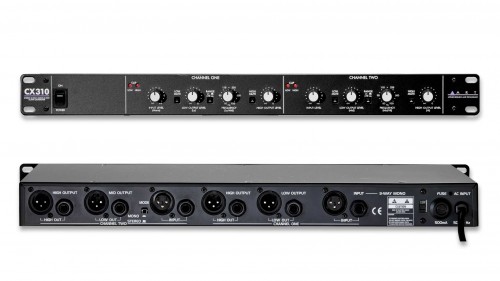

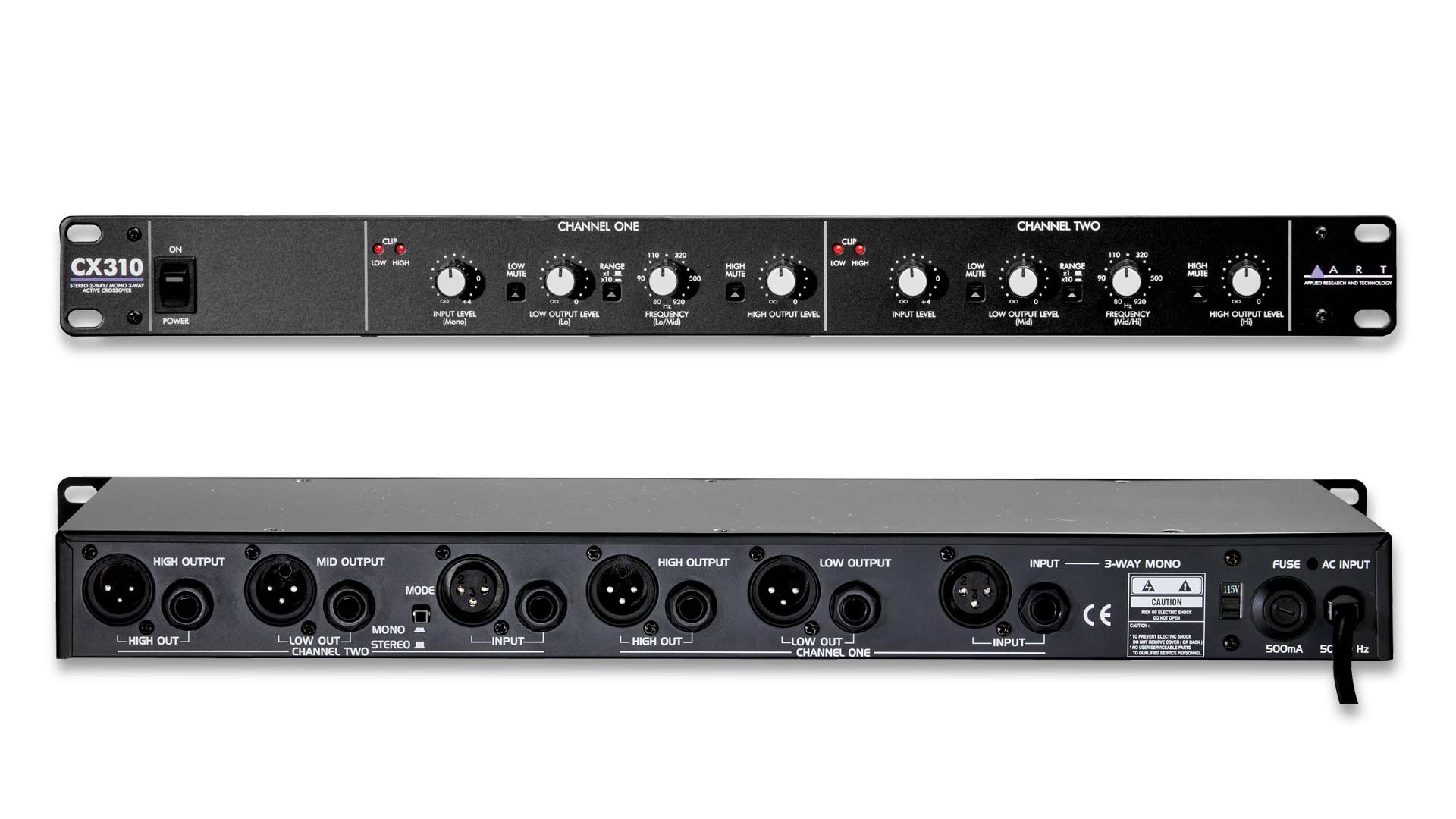

Art CX310 - Stereo two-way / Mono Three Way Crossover - 24dB per octave - 1U

Enlarge ↗
BrandArt ›
Price:$ 225.99

The ART CX310 is a perfect addition to any sound reinforcement system. Designed for PA and fixed-installation applications, the CX310 employs 24dB/ octave state-variable, fourth-order, Linkwitz-Riley filters. These filters guarantee in-phase outputs at all frequencies. This ensures the proper acoustic summing of common signals from adjacent drivers in the crossover region. Housed in a rugged all-steel chassis, the model CX310 will provide years of reliable and continuous service.

The CX310 may be used as either a stereo 2-way crossover network, splitting the signal in each channel into two separate frequency ranges (Lo and Hi), or as a mono 3-way crossover network, splitting one signal into three separate frequency ranges (Lo, Mid and Hi).

CX310 Highlights:

Each channel features input level, high and low output level and crossover frequency rotary controls
Frequency x10 switch provided for varying the crossover frequency from the standard 80Hz -920Hz to 800Hz – 9200Hz.
Front-panel output mute switches for each individual output to ease system setup.
Rear panel features balanced XLR and 1/4” TRS input and output connectors as well as a 2- way/ 3-way mode selector switch.
Power for the CX310 is internal
Key Features
Stereo Two-Way or Mono Three-way Configurations
Fourth-Order Linkwitz-Riley Filters
Active Balanced XLR and 1/4″ TRS Input and Output Connectors
Individual Output Muting Switches
x10 Frequency Range Adjusting Switch
Clipping Indicators on all Outputs Designed for Years of continuous, reliable performance
Rugged all-steel Construction
