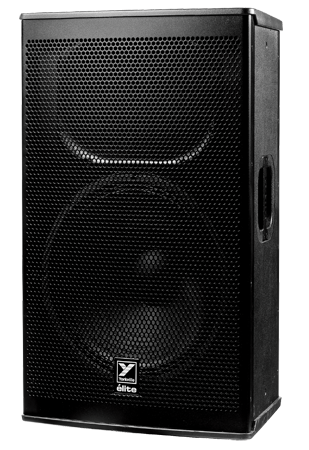

Yorkville EF15 - 1/15" & 2 inch HF driver on 60°x40° horn - 700w PGM, 1400w peak - Dedicated FOH Cabinet



EF15 - 1/15 & 2 inch HF driver on 60°x40° horn - 700w PGM, 1400w peak - Dedicated FOH Cabinet
EF15 - 1/15 & 2 inch HF driver on 60°x40° horn - 700w PGM, 1400w peak - Dedicated FOH Cabinet
Enlarge ↗
BrandYorkville ›
Price:$ 1259.00



Features
15-inch Two-way Passive Loudspeaker
700 Watts (1400 Watts Peak / 450 Watts Continuous)
128.5dB Peak (125.5dB Continuous) Max SPL
55 - 18k (Hz +/- 3dB)
Made In Canada

Overview
Building on the market success and positive user reaction to the Elite powered cabinets, Yorkville Sound introduces three new elite passive speakers. Now available in 10, 12 and 15-inch configurations, the passive elites' provide the perfect solution for installations and venues with existing power amps.

Specifications
System Type Two Way
Active or Passive Passive
Power Rating (Watts) 700 Watts (1400 Watts Peak / 450 Watts Continuous)
Biampable No
Nominal Impedance (Ohms) 8
Sensitivity (dB @1Watt/1m) 97
Max SPL (dB) 128.5dB Peak (125.5dB Continuous)
Frequency Response (Hz +/- 3dB) 55 - 18k
Crossover Frequency (Hz) 1900
Driver Configuration 15-inch, 3-inch Diaphragm
HF Driver(s) 3-inch Voicecoil (Titanium Diaphragm)
HF Horn ABS plastic custom Waveguide
HF Dispersion (°H x °V) 60x40
HF Protection 3xSK3 protection bulbs
LF Driver(s) 15-inch (3-inch voicecoil)

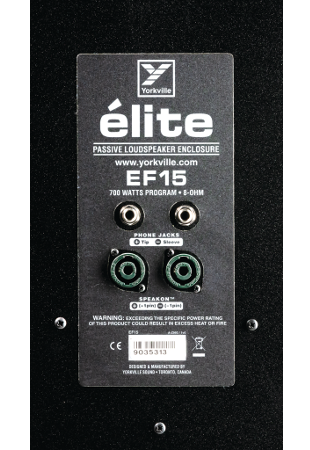

Inputs - 1/4" Jacks 2
Inputs - Speakon 4-pin 2
Bar Handles 2
Flypoints 8 x ¼-20 (2 Top, 2 Bottom, 2 Each Side, 2 Pullback)
Pole Mount Adapter (1 3/8"-3.5cm) Yes
Enclosure Materials 15mm (5/8inch) 11-ply Russian Birch
Grille Perforated Metal
Covering / Finish Black Ultrathane Paint
Dimensions (DWH xbackW, inches) 14 x 18.5 x 30 x 12
Dimensions (DWH xbackW, cm) 35.5 x 47 x 76 x 30.5
Weight (lbs/kg) 61 / 27.8
Specifications subject to change without notice
