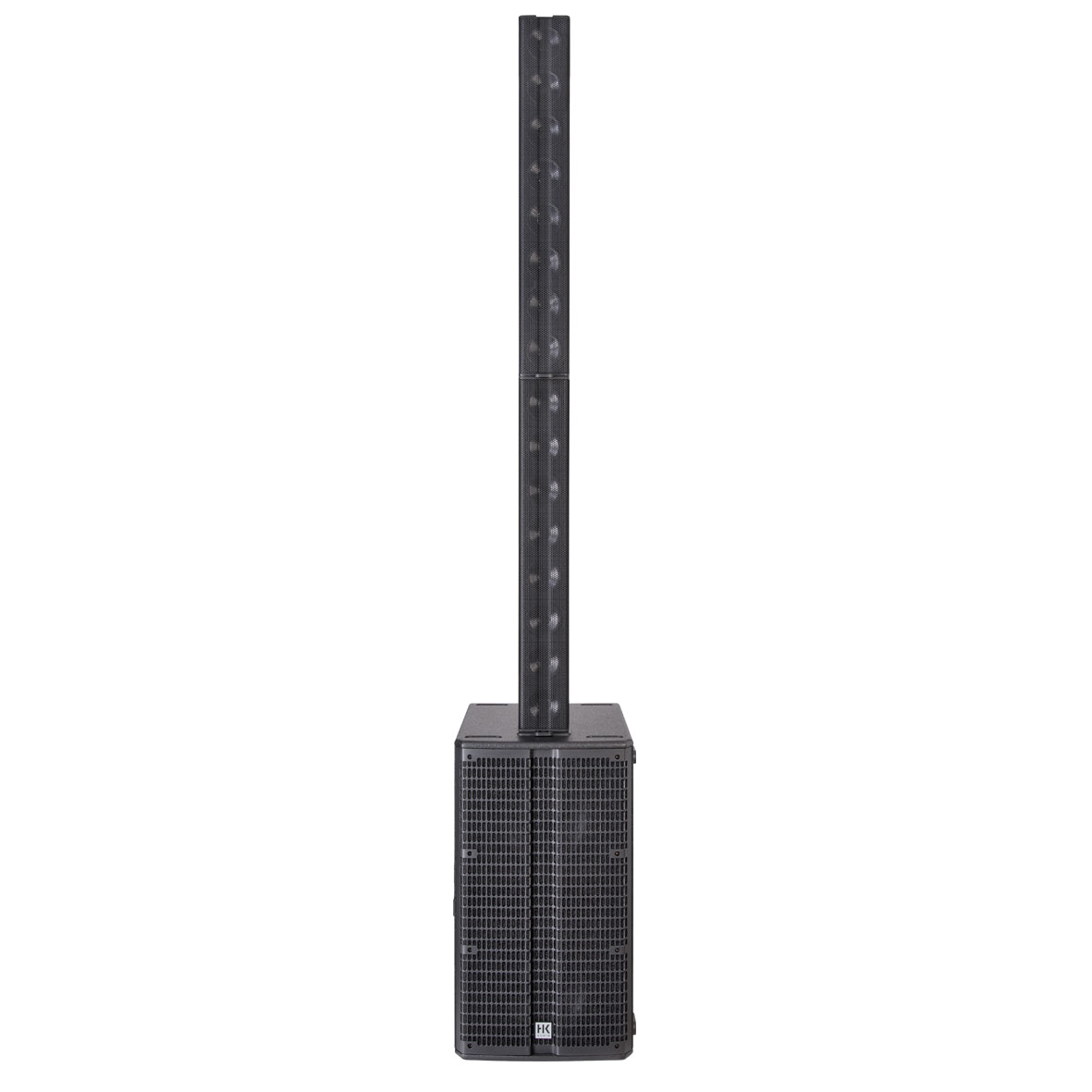

HK Audio EL-BIG - Big Base Single System with 1x E210AS and 2x E835

Enlarge ↗
BrandHK Audio ›
Price:$ 3639.00

The Big Base single system combines the power reserves of a large PA system with all the ELEMENTS sound and handling advantages – and it”s easy and flexible when it comes to expansion too.

The 2,400-watt E 210 SUB AS system subwoofer can drive up to three E 835 mid/high units and an additional passive Linear Sub 1200. For the ultimate low end, the system can be easily extended with the active 1200-watt L Sub 1800 A from the Linear series. For open air applications, ELEMENTS Big Base can also be combined with larger subarrays.

Elegant design
Scalable and flexible to expand
Practically cable-free
Lightweight and compact
Maximum output: 4,800 watts
5-year HK Audio warranty

Active mono PA system, 2 x E 835 mid/high units, 1 x E 210 SUB AS subwoofer, flexibly extendable for a maximum output of 4,800 watts

Power-handling nominal (RMS) 300 W
Nominal impedance 8 ohms
Sensitivity 1W/1m 100 dB (half space)
Frequency response -10 dB 140 Hz – 20 kHz, via active system
Speaker 8 x 3,5" broadband
Directivity 70° horizontal
Crossover frequency 140 Hz, 12 dB/oct.
Connections 1 x E-Connect-In
1 x E-Connect-Out 1 x E-Connect-Out
Dimensions (WxHxD) 11 x 74,5 x 12 cm (exkl. E-Connect- sleeves)
Weight 4,5 kg, 9.9 lbs

210 SUB AS:
Headline System Subwoofer
Nominal impedance 8
Frequency response -10 dB 38Hz – 150Hz via active system x-over
Power Rating 2400 W
Amplifier Class D
Active protection circuits RMS limiter, subsonic filter; DC, load, & thermal temp.- controlled fan)
LF Speaker 2x 10" (2.5“ voice coil)
Connections 1 x XLR Combo In 1 x XLR Through 2 x Speakon-Out 1 x SUB + 1 x Mid/ High 2 x E-Connect Out
Input Sensitivity +4dBu
Pole mount 2x E-Connect
Dimensions (WxHxD) 38 x 67 x 56 cm
Weight 36,7 kg, 80.8 lbs
