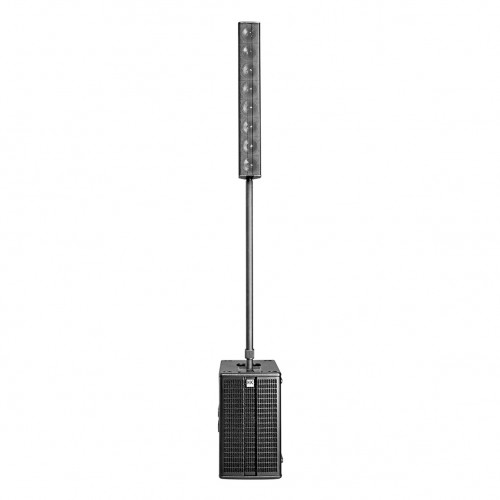

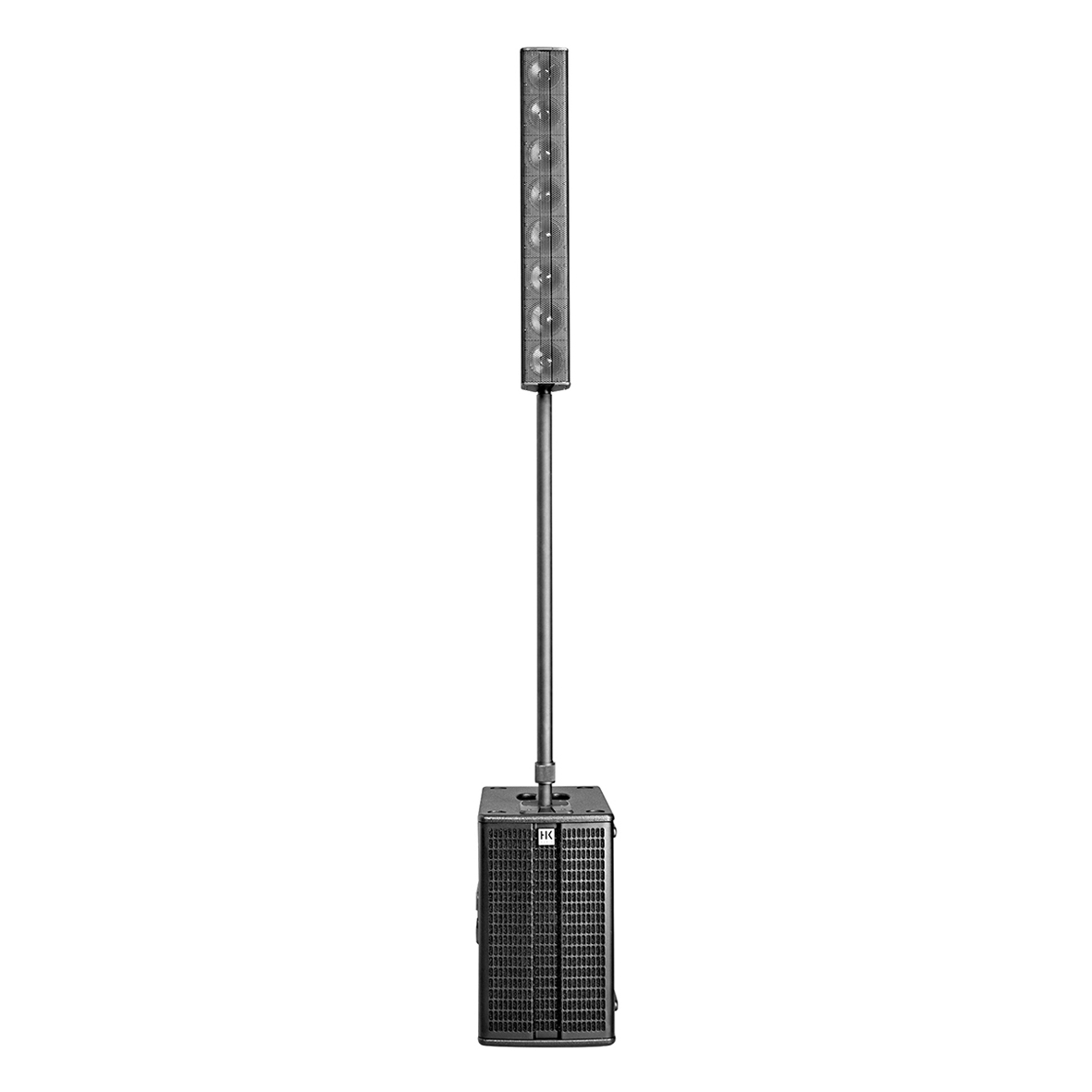

HK Audio EL-SMART - 2400 Watt Active Mono PA System with 1x E110AS, 1x EP1 Pole, 1x E835

Enlarge ↗
BrandHK Audio ›
Price:$ 2065.00

The Smart Base single system is incredibly flexible and easy to expand, making it the perfect PA solution for anything from clubs to open air gigs. For DJ applications where more bass is required, an E 110 SUB subwoofer and/or an active L Sub 1500 A of the Linear Series will do the trick, while a second E 835 mid/high unit can be added for open air shows that require far-reaching mid/high frequencies. For DJ applications or open-air applications, where more low end is required, the 1200-watt 15 “subwoofer is the first choice. If an even wider mid / high range is needed, a second E 835 can be used instead of the distance pole.

Elegant design
Scalable and flexible to expand
Practically cable-free
Lightweight and compact
Maximum output (with all add-ons): 2,400 watts
5-year HK Audio warranty

Active mono PA system, 1 x E 835 mid/high unit, 1 x EP 1 distance pole, 1 x E 110 SUB AS subwoofer, flexibly extendable for deeper bass with a passive E 110 SUB subwoofer or for far-reaching mid/high frequencies with a second E 835, maximum output 2,400 watts

Power-handling nominal (RMS) 300 W
Nominal impedance 8 ohms
Sensitivity 1W/1m 100 dB (half space)
Frequency response -10 dB 140 Hz – 20 kHz, via active system
Speaker 8 x 3,5" broadband
Directivity 70 degree horizontal
Crossover frequency 140 Hz, 12 dB/oct.
Connections 1 x E-Connect-In
1 x E-Connect-Out 1 x E-Connect-Out
Dimensions (WxHxD) 11 x 74,5 x 12 cm (exkl. E-Connect- sleeves)
Weight 4,5 kg, 9.9 lbs

E-110 Sub AS:
Headline System Subwoofer
Frequency response -10 dB 45 Hz – 150 Hz (measured with active separation)
Power Rating 1200 W
Amplifier Class D
Active protection circuits RMS limiter, subsonic filter; DC, load, & thermal (temp.- controlled fan)
LF Speaker 1x 10" (2" voice coil)
Connections 1 x XLR-Kombi-In, 1 x XLR-Through, 2 x Speakon-Out (1 x Sub + 1 x Mid-High), 2 x E-Connect-Out
Input Sensitivity (selectable) +4 dBu / -10 dBu
Pole mount 2x E-Connect
Dimensions (WxHxD) 30 x 48 x 46 cm
Weight 18,5 kg / 40,8 lb
