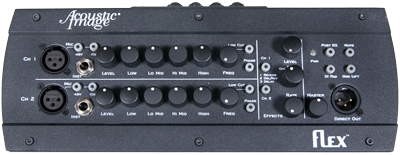

Acoustic Image Flex Pre Two-Channel Preamp with Effects

Flex Pre Two-Channel Preamp with Effects
Flex Pre Two-Channel Preamp with Effects
Flex Pre Two-Channel Preamp with Effects
Enlarge ↗
BrandAcoustic Image ›
Price:$ 629.00

Extended frequency range, high fidelity sound
Light weight (2.5 lbs.), small size
Unique, slanted front chassis
Mounts anywhere for player’s convenience
Separate XLR and 1/4 inch inputs in each channel can be used simultaneously
48V phantom power and 10 dB gain select for mic input
Input level control per channel
Four band EQ per channel
Selectable phase reverse and sweepable low cut filter per channel (phase reverse can be converted to low pass speaker emulation filter with internal jumper option)
Effects loop per channel
Selectable reverb and delay effects with level and rate controls and pseudo stereo output
Direct out with selectable 10 dB pad, pre/post switch and ground lift
Headphone output
Switchable limiter
Mute switch
Mono or stereo output from the preamp section
Selectable internal jumper options for gain and stereo operation
High fidelity, low noise operation: 110 dB SNR at direct out
Comes with external DC power supply

Frequency Response: 20 Hz - 20 kHz (±0.5 dB)
Signal to Noise Ratio: >110 dB at direct out
Power: Proprietary through RJ-45 connector or 18V via DC adapter (AC 100V to 240V)

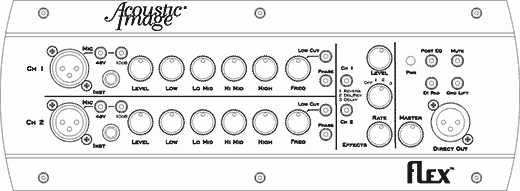

Controls and Inputs
Mic Input: 600O balanced, XLR connector, switchable 10 dB gain
Phantom Power: 48 volts, on/off switch w/LED indicator
Instrument Input: 1 MO impedance, 1/4 inch jack
Direct Out: +4 dB, balanced, XLR connector, ground lift, pre/post EQ selector , switchable 10 dB pad
Effects Loop: Parallel type
Low Control: Shelving type, ±12 dB @ 50 Hz
Low Mid Control: ±12 dB @ 250 Hz
Hi Mid Control: ±12 dB @ 1200 Hz
Treble Control: Shelving type, ±12 dB @ 8 kHz
Low Cut Filter: -12 dB/oct sweepable from 30 to 150 Hz
Phase Reverse: Switchable 180 degree phase reverse
Speaker Emulator: (if selected) -12 dB/octave at 4 kHz
Effects: Type: 24 bit digital with 3 programs

- Reverb with variable decay time,
- Delay/Reverb with variable delay time
- Delay with variable delay time
- All have variable wet/dry mix and
- “pseudo stereo” capability

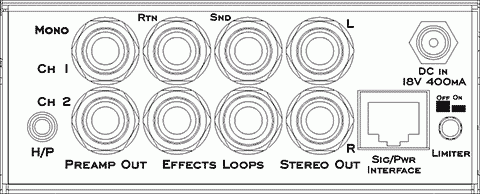

Output Interface
- Proprietary balanced signal and power
= interface via RJ-45 connector (100 ft max Cat5 cable length)
- 1/4 inch unbalanced outputs

Supplied Accessories
Padded gig bag, 10 ft Cat5 cable, mic stand adapter, DC power supply and AC plug adapters

Optional Accessories
Mic stand mounting bracket
