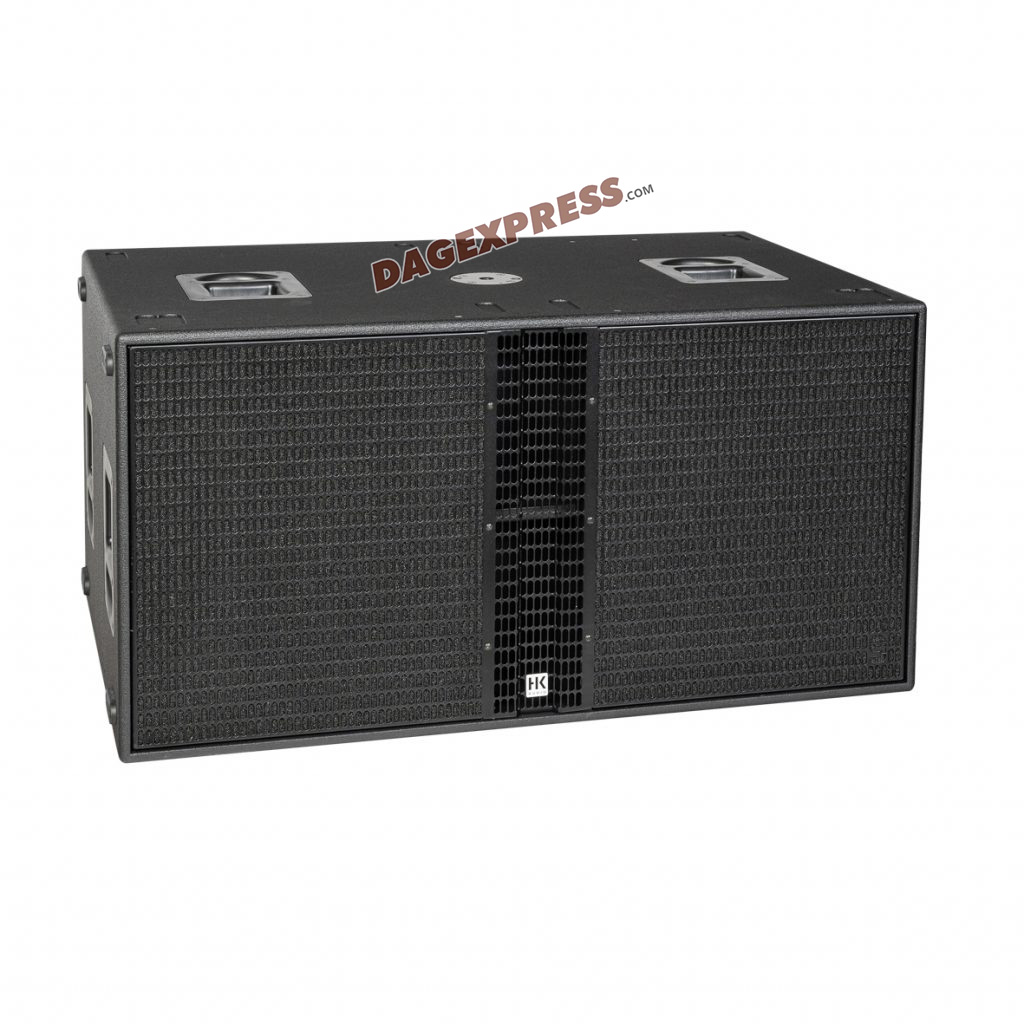

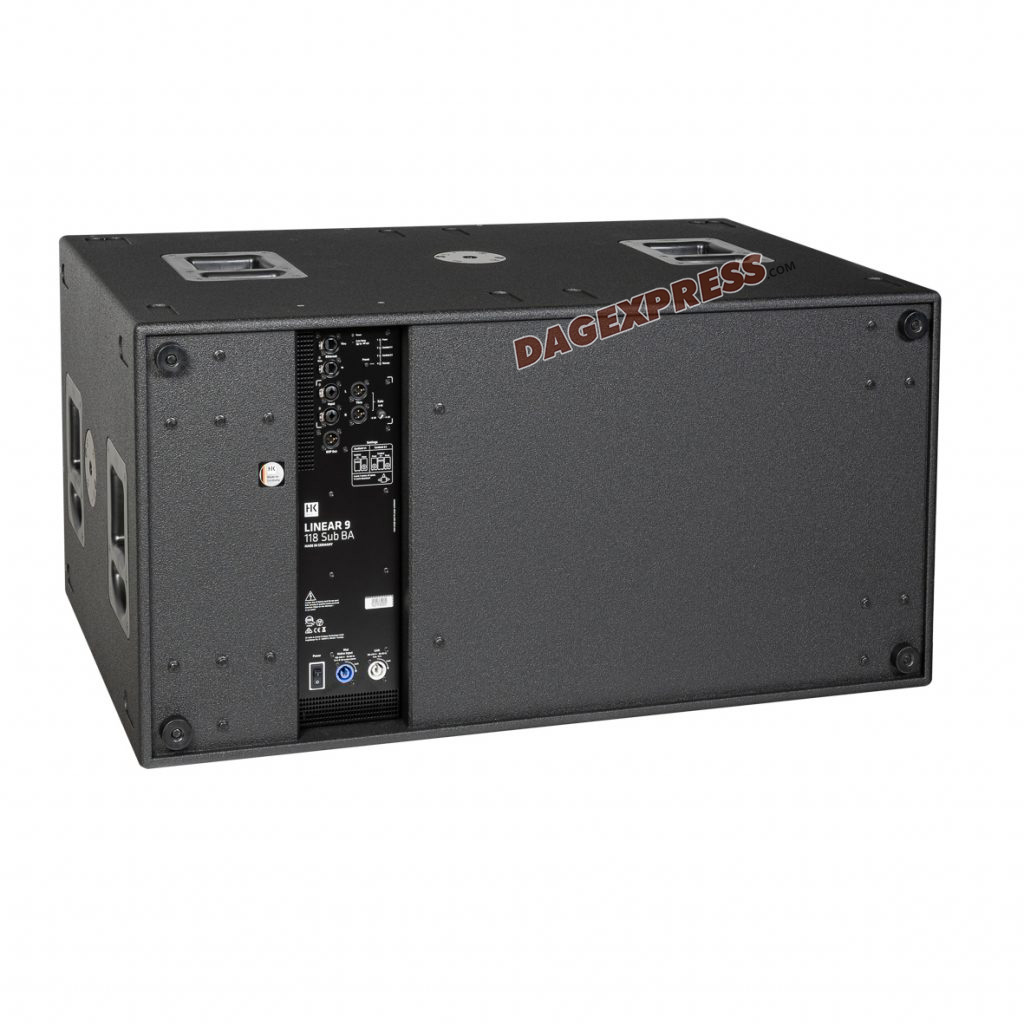

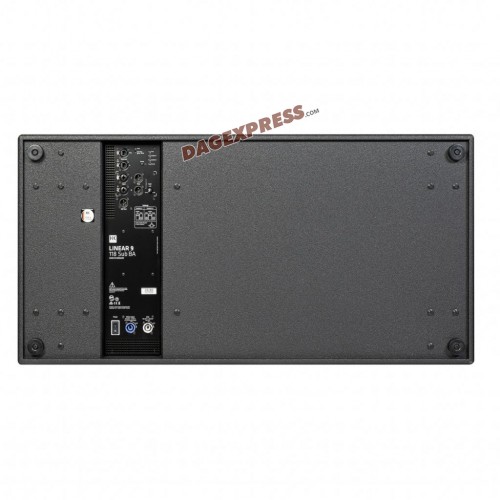

HK Audio LINEAR 9 118 Sub BA - Powerful 18-Inch Dual Vented Bandpass Subwoofer

Enlarge ↗

❮❯

sites/dagexpress/products/Yorkville/thumbnails_60_60/-L9-118SUBBA.jpg

sites/dagexpress/products/Yorkville/thumbnails_60_60/HK-Audio-L9-118SUBBA.jpg

sites/dagexpress/products/Yorkville/thumbnails_60_60/HK-Audio-L9-118SUBBA-1.jpg

Brand	HK Audio ›
Price:	$ 3259.00

DESCRIPTION

Documentation ↗

Powerful and deep

The LINEAR 9 118 Sub BA is a powerful 18" dual vented bandpass subwoofer. The generous size of the cabinet allows for an exceptionally high sound pressure level with a low cut-off frequency at the same time. This makes this subwoofer not only a perfect partner for powerful full-range speakers, but also an ideal sub low extension for the direct-radiating LINEAR 9 118 Sub A. Thanks to the integrated presets, cardioid setups can be implemented quickly and easily. The LINEAR 9 118 Sub BA is compatible with all LINEAR 9 Mid/High models.

Technical data
Max. SPL @ 10% THD 134 dB half space (40 Hz – 110 Hz averaged)
Max. SPL peak @ 10 % THD 136 dB half space
Frequency response +/-3 dB 38 Hz – X-over
Frequency response -10 dB 31 Hz – X-over
Power amp output (RMS) 1100 W
Amp type Class D
LF driver 1x 18", 4" voice coil
Low-/mid speaker -
HF driver -
Horn directivity -
Active crossover frequency -
Maximum input level +20 dBu
Analog inputs 2x XLR combo balanced
Analog thru 2x XLR balanced
DSP Out balanced
Network port Ethercon RJ45, 1x In, 1x Thru
Filter presets Front, Cardioid 1:1, Cardioid 2:1, Remote
Remote software DSP CONTROL (Windows, macOS)
DSP functions Fully parametric 10-band EQ with variable filter characteristics, Low-Pass Filter, Polarity, Level, Delay, Limiter, Mute
Sample rate 96 kHz
System latency Less than 2.6 ms
Mains connector 1x Powercon NAC3 In, 1x Powercon NAC3 Thru, 100–240 V
Power consuption 1.9 A / 100–240 V nominal according to EN 62368-1
Clustering angle -
Angles up (Monitor angle) -
Pole mount 2x M20
Rigging points -
Carrying handles 8x MultiGrip
Housing Birch multiplex
Finish PU coating black
Front grille 2 mm metal grille backed with black acoustic foam
Dimensions (WxHxD) 111 x 56 x 69 cm 43-9/32 x 22-3/64 x 27-11/64"
Weight 63.5 kg / 139.9 lbs
