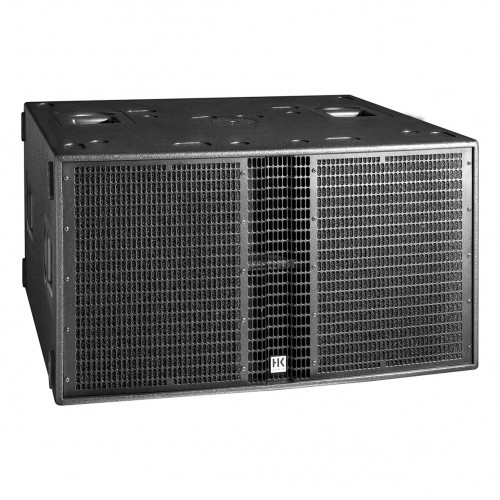

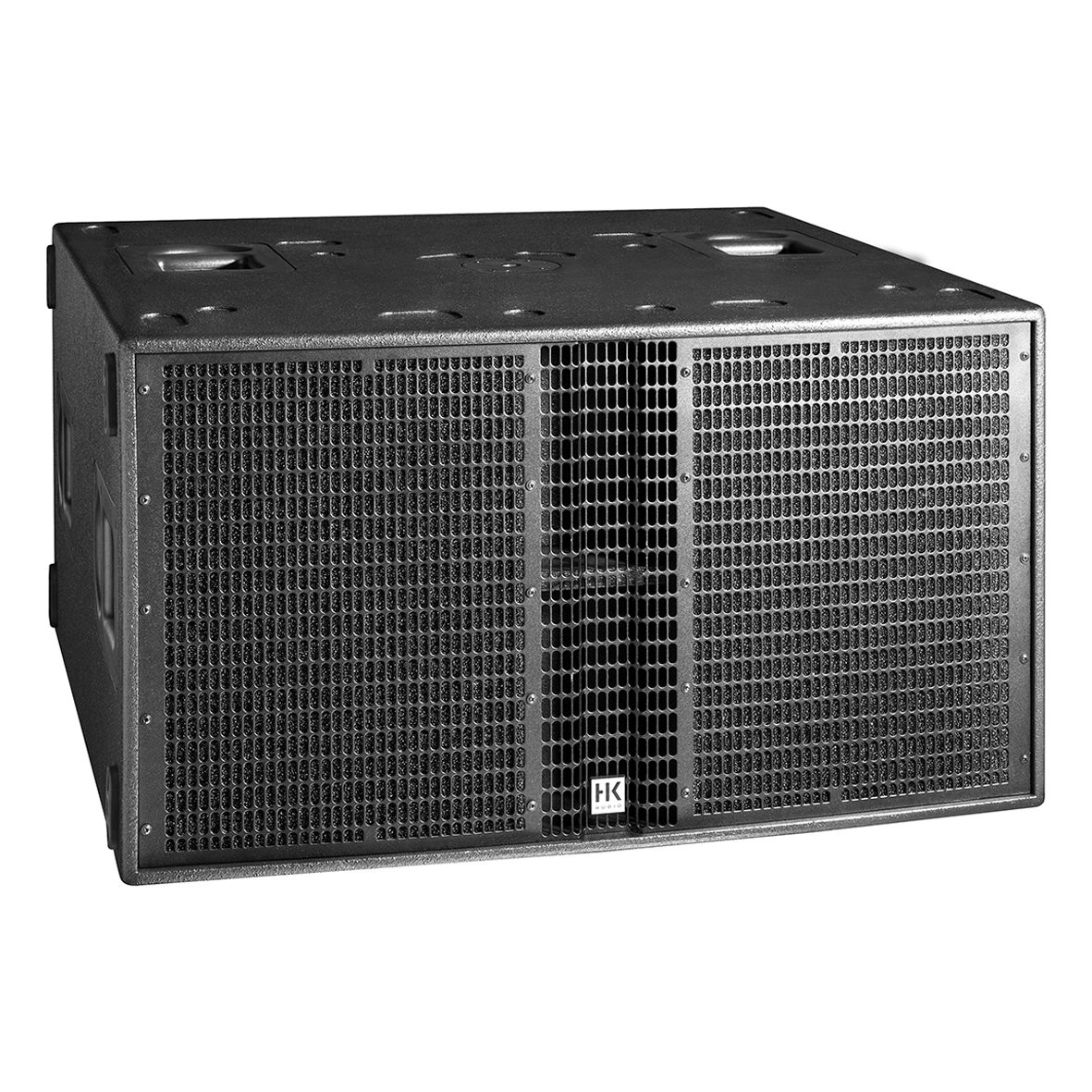

HK Audio LSUB-4000A - Hk Audio Linear Sub 4000 - 18-Inch Dual Vented Bandpass Subwoofer

Enlarge ↗

❮❯

sites/dagexpress/products/Yorkville/thumbnails_60_60/HK-Audio-LSUB-4000A.jpg

sites/dagexpress/products/Yorkville/thumbnails_60_60/HK-Audio-LSUB-4000A-1.jpg

Brand	HK Audio ›
Price:	$ 2619.00

DESCRIPTION

Documentation ↗

LINEAR SUB 4000 A is a powerful 18″ dual vented bandpass subwoofer. It is compatible with all LINEAR 5 full-range speakers and mid/high units and delivers an impressively powerful low-frequency response from 30 to 100 Hertz. The subwoofer is the recommended extension to the LINEAR 5 LTS A long-throw powerhouse. It can also be used as a sub-low extension to the existing LINEAR SUB 2000 (A), delivering powerful low bass in the range of 30 to 70 Hertz.

Made in Germany

Technical data
Max. SPL @ 10% THD 135 dB half space (41 Hz – 110averaged)
Max. SPL peak @ 10 % THD 137 dB half space
Frequency response +/-3 dB 39 Hz – X-Over
Frequency response -10 dB 31 Hz – X-Over
Power amp output (peak power) 1200 W
Amp type Class D
Active protection circuits Undervoltage-Protection, Thermoprotection, Short-Circuit-Protection, Overcurrent-Protection, Subsonic 24 dB/oct., Peak-Limiter
LF driver 1x 18", 4" voice coil
Active crossover frequency 100 Hz / 120 Hz variable with 24 dB/oct.

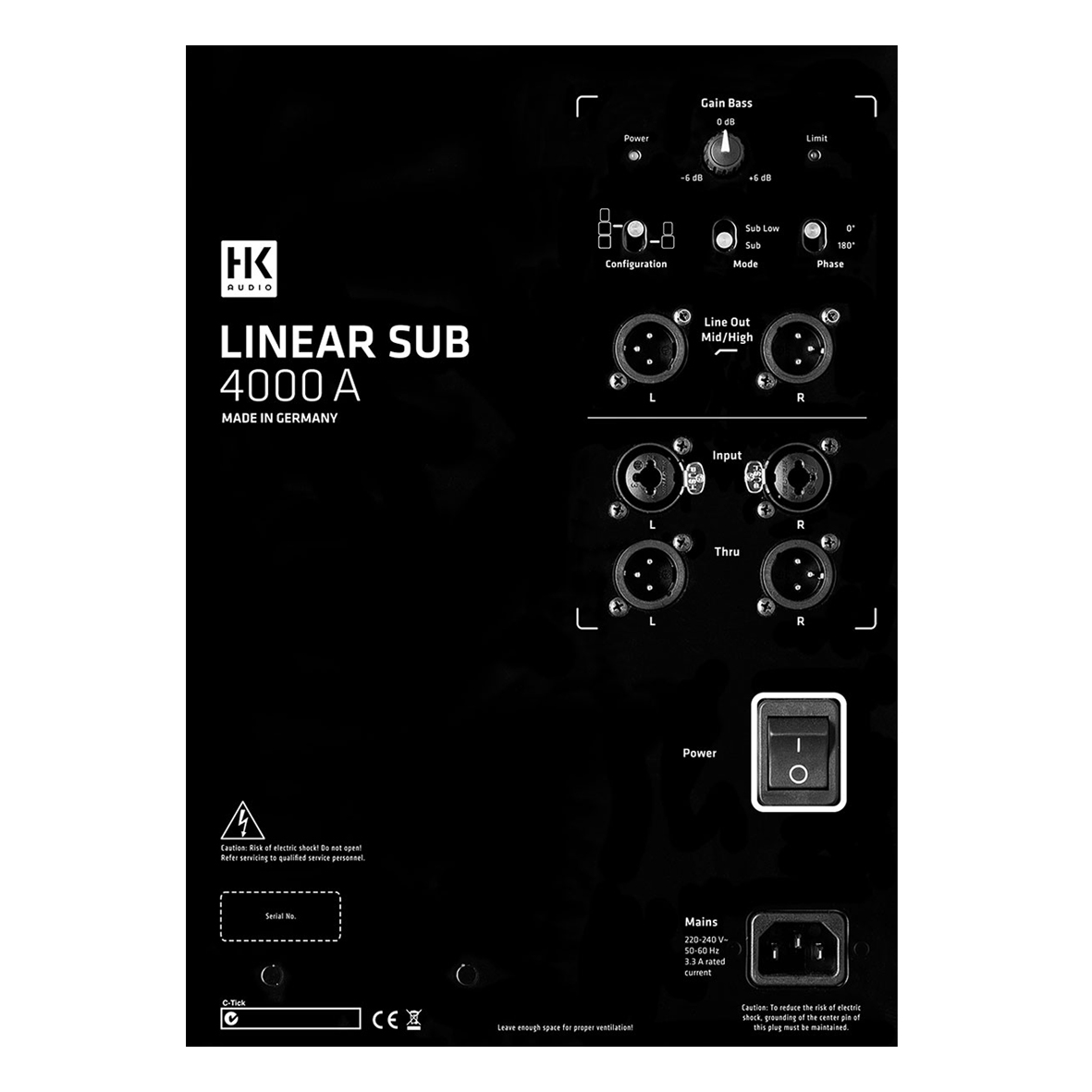

Analog inputs 2x XLR combo balanced
Analog outputs 2x XLR Thru balanced, 2x XLR Mid/High Out
Input sensitivity +4 dBu @ Gain center-notched
Mains connector 1x IEC socket with V-Lock cord retainer
Power consuption 3.3 A / 220-240 V (6.6 A / 100-120 V) nominal according to EN 60065
Pole mount 2x M20
Carrying handles 8x MultiGrip
Housing Birke-Multiplex
Finish Black acrylic enamel
Front grille 2 mm metal grille backed with black acoustic foam
Dimensions (WxHxD) 91 x 51 x 81 cm 35-3/4 x 20 x 31-25/32"
Weight 59 kg / 130.1 lbs
