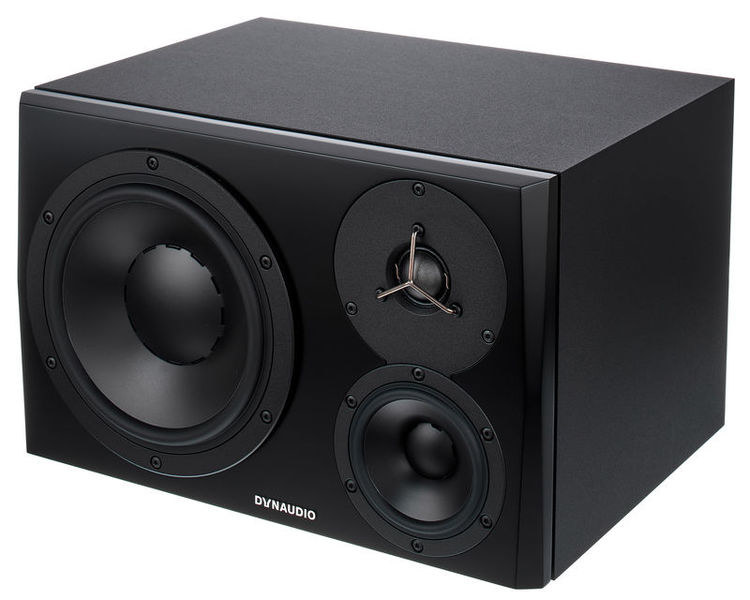

Dynaudio Pro LYD-48 - Mid & Nearfield 3-Way Monitor - 8" woofer, 4" mid driver and soft dome tweeter - dedicated Left and Right skus



LYD-48 - Mid & Nearfield 3-Way Monitor - 8 woofer, 4 mid driver and soft dome tweeter - dedicated Left and Right skus
LYD-48 - Mid & Nearfield 3-Way Monitor - 8 woofer, 4 mid driver and soft dome tweeter - dedicated Left and Right skus
Enlarge ↗
BrandDynaudio Pro ›
Price:$ 1149.00




DESCRIPTION
Specification sheet for LYD part 2
Max SPL (1m, pair): 112dB
Principle: Bass reflex
Crossover Frequencies: 460Hz / 5.5kHz
Tweeter: 1in soft dome
Midrange: 4in
Woofer: 8in
Dimensions (W x H x D): 369 x 234 x 328mm
Weight: 12kg
Sensitivity (85dB @ 1m, free field):
+6dB: 50mV
0dB: 100 mV
-6dB: 200 mV
Specification sheet for LYD part 1
Amplifier:
Power (Tweeter/Midrange/Woofer): 50W/50W/80W
Type: Class D
Power consumption standby: <0.5W
Power consumption max.: 100W
Input voltage: 90 - 264V AC, 50 - 60Hz

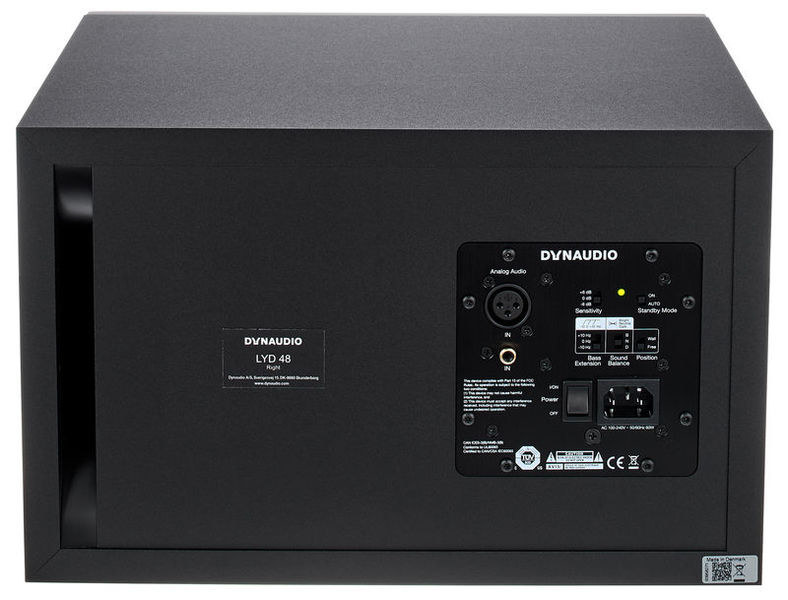

Inputs: XLR balanced/RCA unbalanced
Outputs: N/A
Frequency response -6dB limits:
Bass extension +10Hz: 60Hz - 21kHz
Bass extension 0Hz: 50Hz - 21kHz
Bass extension -10Hz: 40Hz - 21kHz
Free field frequency response: 50Hz - 19kHz
Frequency response -10dB limits:
Bass extension +10Hz: 52Hz - 24kHz
Bass extension 0Hz: 42Hz - 24kHz
Bass extension -10Hz: 32Hz - 24kHz
