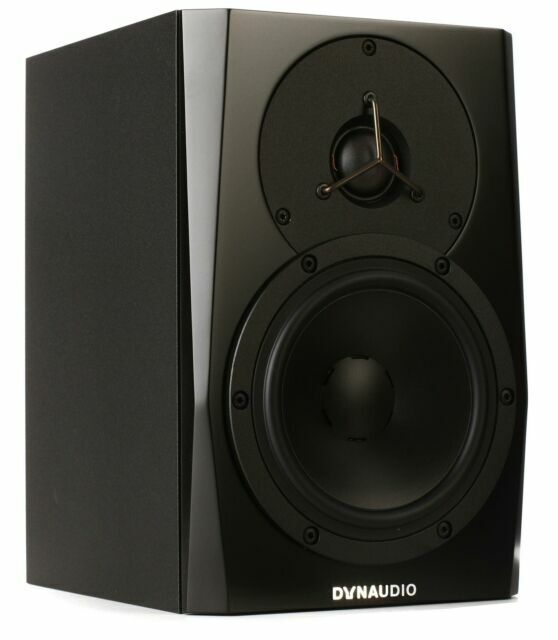

Dynaudio Pro LYD-5 - Nearfield Monitor - 5" woofer and soft dome tweeter, 50W LF and 50W HF Class D Amp with Bass Extension

Enlarge ↗

❮❯

sites/dagexpress/products/Yorkville/thumbnails_60_60/Dynaudio-Pro-LYD-5.jpg

sites/dagexpress/products/Yorkville/thumbnails_60_60/Dynaudio-Pro-LYD-5-1.jpg

Brand	Dynaudio Pro ›
Price:	$ 599.00

DESCRIPTION

Specification sheet for LYD part 2
Max SPL (1m, pair): 106dB
Principle: Bass reflex
Crossover Frequency: 5.2kHz
Tweeter: 1in soft dome
Mid: N/A
Woofer: 5in
Dimensions (W x H x D): 170 x 260 x 211mm
Weight: 5.7kg
Sensitivity (85dB @ 1m, free field):
+6dB: 50mV
0dB: 100mV
-6dB: 200mV
Specification sheet for LYD part 1
Amplifier:
Power (Tweeter/Woofer): HF 50W/LF 50W
Type: Class D
Power consumption standby: <0.5W
Power consumption max.: 100W
Input voltage: 90 - 264V AC, 50 - 60Hz
Inputs: XLR balanced/RCA unbalanced
Outputs: N/A
Cut-off frequencies -6dB limits:
Bass extension +10Hz: 70Hz - 21kHz
Bass extension 0Hz: 60Hz - 21kHz
Bass extension -10Hz: 50Hz - 21kHz
Free field frequency response: 62Hz - 19kHz
