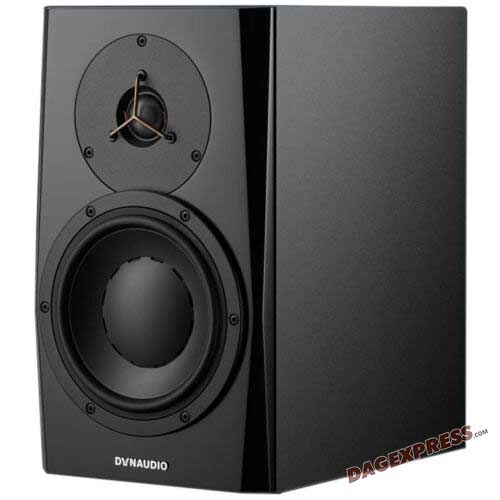

Dynaudio Pro LYD-7 - Nearfield Monitor - 7" woofer and soft dome tweeter, 50W LF and 50W HF Class D Amp with Bass Extension
Enlarge ↗
×
❮
❯
Brand
Dynaudio Pro ›
Price:
$ 669.00
DESCRIPTION
Specification sheet for LYD part 2
Max SPL (1m, pair): 109dB
Principle: Bass reflex
Crossover Frequency: 4.3kHz
Tweeter: 1in soft dome
Mid: N/A
Woofer: 7in
Dimensions (W x H x D): 186 x 320 x 296mm
Weight: 8kg
Sensitivity (85dB @ 1m, free field):
+6dB: 50mV
0dB: 100mV
-6dB: 200mV
Specification sheet for LYD part 1
Amplifier:
Power (Tweeter/Woofer): HF 50W/LF 50W
Type: Class-D
Power consumption standby: <0.5W
Power consumption max.: 100W
Input voltage: 90 - 264V AC, 50 - 60Hz
Inputs: XLR balanced / RCA unbalanced
Outputs: N/A
Cut-off frequencies -6dB limits:
Bass extension +10Hz: 65Hz - 21kHz
Bass extension 0Hz: 55Hz - 21kHz
Bass extension -10Hz: 45Hz - 21kHz
Free field frequency response: 55Hz - 19kHz
