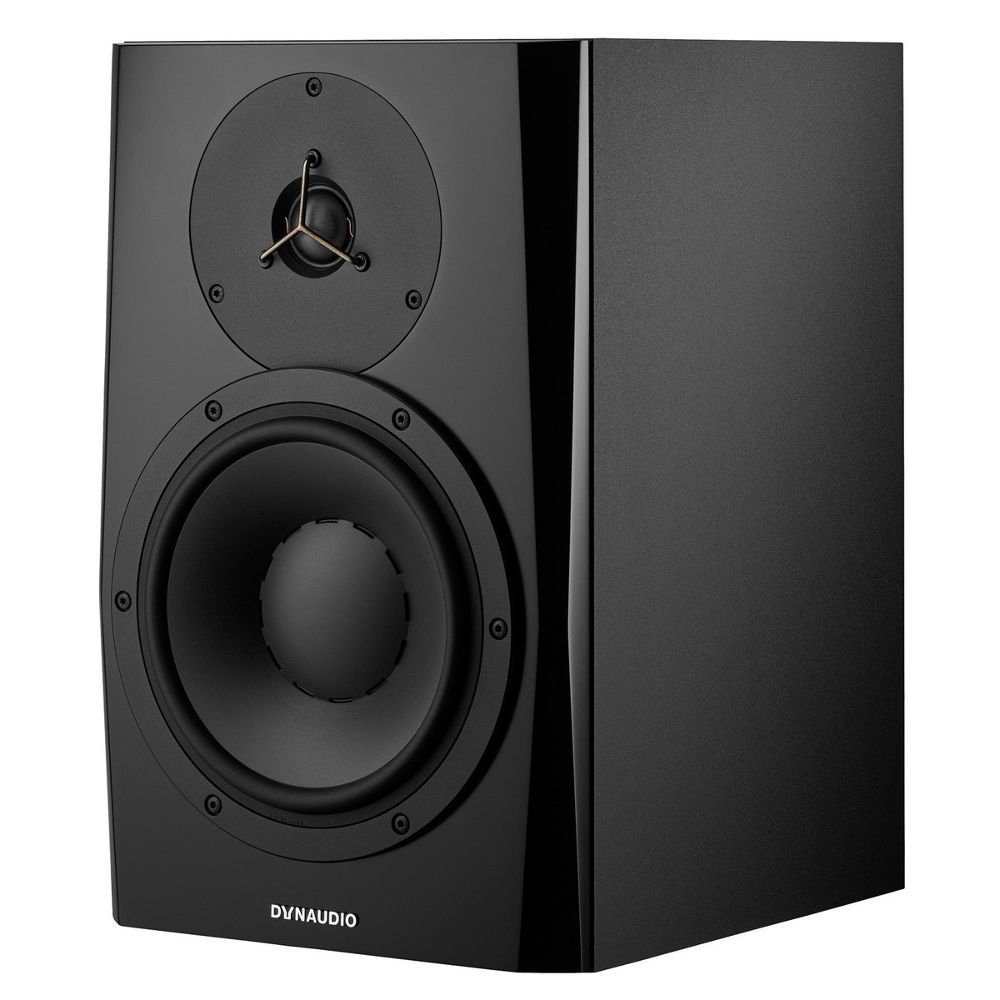

Dynaudio Pro LYD-8 - Nearfield Monitor - 8" woofer and soft dome tweeter, 80W LF and 50W HF Class D Amp with Bass Extension

Enlarge ↗

Brand	Dynaudio Pro ›
Price:	$ 789.00

DESCRIPTION

Specification sheet for LYD part 2
Max SPL (1m, pair): 112dB
Principle: Bass reflex, rear port
Crossover Frequencies: 3.9kHz
Tweeter: 1in soft dome
Mid: N/A
Woofer: 8in
Dimensions (W x H x D): 234 x 369 x 328mm
Weight: 10.2kg
Sensitivity (85dB @ 1m, free field):
+6dB: 50mV
0dB: 100mV
-6dB: 200mV
Specification sheet for LYD part 1
Amplifier:
Power (Tweeter/Woofer): HF 50W/LF 80W
Type: Class D
Power consumption standby: <0.5 W
Power consumption max.: 100 W
Input voltage: 90 - 264 V AC, 50 - 60 Hz
XLR balanced
Inputs: RCA unbalanced
Outputs: N/A
Cut-off frequencies -6dB limits:
Bass extension +10Hz: 65Hz - 21kHz
Bass extension 0Hz: 55Hz - 21kHz
Bass extension -10Hz: 45Hz - 21kHz
Free field frequency response: 55Hz - 19kHz
