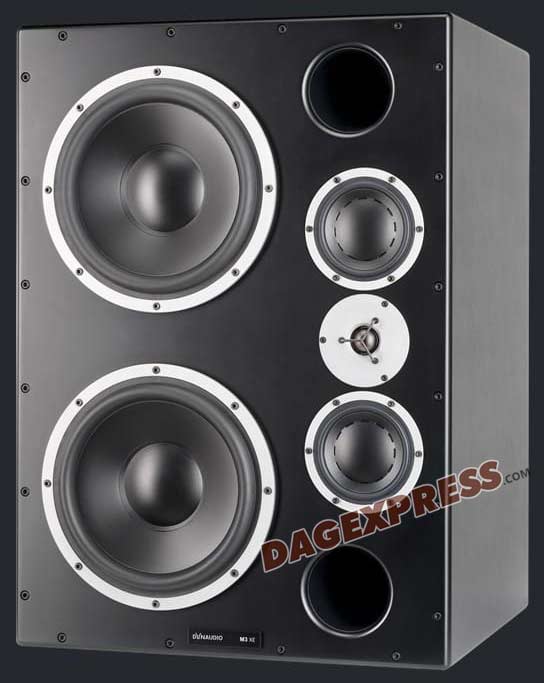

Dynaudio Pro M3VE/LEFT - Studio Main Systems - Bi-Amped, Dual 12 inch ESOTAR Woofers, Dual 6 inch Midrange Drivers
Enlarge ↗
×
Brand
Dynaudio Pro ›
Price:
$ 9500.00
DESCRIPTION
Documentation ↗
Studio Main Systems - Bi-Amped, Dual 12" ESOTAR Woofers, Dual 6" Midrange Drivers
For Mastering, Tracking and Mixing. Bi-amped / passive crossover between mid and high.
The Dynaudio Professional M3VE monitor system that takes monitoring to a whole new level with a significant upgrade from its predecessor - the renowned M3A 3-way monitor. Two speakers are powered by a single four channel Lab.gruppen PLM 12k44 amplifier, using the integrated Lake active cross-over between LF and MF, while passively filtering the MF/HF cross-over point.
With Dynaudio ESOTAR2 driver technology, M3VE takes over where most other monitor systems give up. Attention to detail, underpinned by a 22Hz - 21kHz frequency response and beyond 133dB SPL, M3VE leaves no room for desire in terms of resolution, range or power.
Three-Way Main Monitor
Handcrafted drivers
For in-wall or free standing setups
Passive MF/HF crossover
Matched with Lab.gruppen PLM 12k44 amplifier
Made in Denmark
System: 3-way Active Main Monitor
Frequency Response ( -3dB): 22Hz - 21kHz
Peak SPL 1m, pair (IEC Short Term): > 133dB peak
Amplifier minimum: 2 x Lab.gruppen PLM10000Q
Resonance Frequency: 24Hz
Internal Cabinet Volume: 145 liters
Bass Principle: Bass reflex
Amplifier: 1/2 Lab-gruppen PLM10000Q (2 channels pr speaker). Preset: M3VE V05
Tweeter: Esotar2 28mm soft dome Magnetic fluid, Metal rear chamber, Pure alu wire voice coil, 4 mm die-cast alu front, Neodym magnet material
Midranges: 15cm with 75mm diameter pure aluminum wire voice coil, one-piece molded MSP cone
Woofer: Esotar 30cm with 75mm diameter pure copper wire voice-coil, MSP-cone, long stroke
Weight: 65kg
Dimensions (WxHxL): 555 x 775 x 505mm
Cabinet: 25mm MDF, strategically braced and damped. Low turbulence reflex-ports. Separate chambers for each woofer.
Crossover: Woofers/hightone: active dsp-based, in-amp Lake processor. Midrange/tweeter: passive wir air-coils only, low dielectrium capacitors and zero-compression resistors.
Specification sheet for M Series part 1
Model: 12k44
Number of amplifier channels: 4
Max out Power per Channel (4 ohms, all channels driven): 3000W
THD N at 1kHz and 1dB below clipping: < 0.04 %
Dynamic Range: > 114dB
Channel separation (Crosstalk) at 1 kHz: > 70dB
Inputs: Analog, AES/EBU & Dante
Analog Input Sample Rate / Resolution: 96kHz / 24bit
Weight: 16.5kg (36lbs)
Dimensions (W x H x D): 483 (19") x 88 (2 U) x 424(16")
