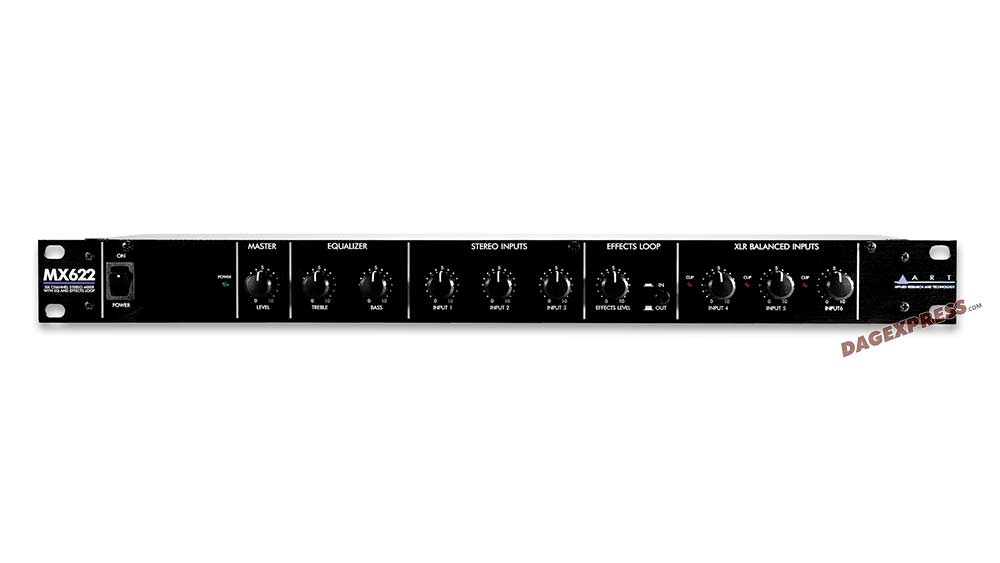

Art MX622 - Six Channel Stereo Mixer with EQ and Effects Loops

Enlarge ↗

Brand	Art ›
Price:	$ 189.99

DESCRIPTION

Documentation ↗

Overview
The MX622 is a versatile mixer combining three balanced microphone or line level inputs with three stereo line inputs into a single stereo line level mix. Essential features include external effects loop (mono send with stereo return), independent stereo record outputs, stereo TRS 1/4-inch balanced outputs and full range master two-band equalizer. The internal power supply and single rack-space 19-inch rack mount format allows for easy installation and reliable long-term operation.

Specifications
Input Connections XLR-F balanced (x3)
1/4-inch unbalanced (x2)
3 pairs stereo RCA (6 total)
Output Connections TRS balanced 1/4-inch (x2)
1/4-inch unbalanced (x1)
RCA (x2)
Input Impedance 600/22K Ω mic/line XLR inputs / 10K Ω RCA inputs / 22K Ω 1/4-inch effects returns
Output Impedance 50 Ω 1/4-inch main outputs / 1K Ω RCA record outputs / 100 Ω effects output
Total Harmonic Distortion .01% Typical
Signal to Noise Ratio > 90dB typical
Maximum Input Level -10dBu/+20dBu mic/line XLR inputs / +20dBu RCA line inputs / +20dBu Effects inputs
Maximum Output Level +24dBu balanced main outputs / +20dBu RCA record outputs / +20dBu Effects output
Maximum Gain 56dB/26dB mic/line / 26dB RCA inputs
Phantom Power +15Volts DC (regulated / low noise)
Power Requirements USA – 105 to 125 VAC / 50-60Hz, 15 W typical
Equalizer Range +/-12dB @ 100Hz & 10kHz
Dimensions 1.75″H x 19″W x 6.0″D (44.5mm x 483mm x 152mm)
Weight 6.2 lbs (2.8 kg)
