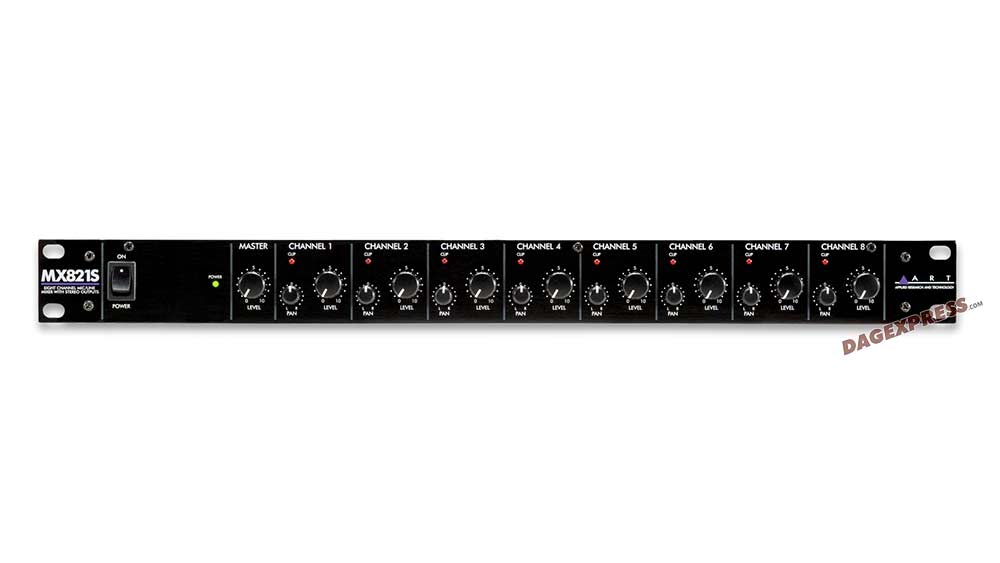

Art MX821S - Eight Channel stereo mic/line mixer with +48v phantom power


Enlarge ↗
×
BrandArt ›
Price:$ 209.99



Overview
The ART MX821S is a versatile rack mount mixer combining eight independent input channels into a stereo line-level output. Each input channel accepts a balanced XLR microphone input or unbalanced 1/4-inch TS line-level signal and provides independent level and pan controls.

+48 Volt phantom power may be independently selected on each microphone input. A master level control adjusts the signal output to the low-impedance balanced 1/4-inch TRS jacks.

Prefade output (not affected by the master level control) and Aux Bus input RCA jacks allow patching of multiple units when more channels are needed
.
The ART MX821S may be used on stage, in the studio, or for permanent install applications including conference rooms, corporate boardrooms, churches, restaurants, small clubs, health clubs and more. A built-in power supply and single high 19-inch rack mount format allows for easy installation and reliable long-term operation.

Specifications
Input Connections XLR female balanced (Mic, channels 1-8)
1/4-inch TS unbalanced (Line, channels 1-8)
RCA unbalanced (Aux Bus In, Left and Right)
Output Connections 1/4-inch TRS balanced (Main Outputs, Left and Right)
RCA unbalanced (Prefade Out, Left and Right)
Input Impedance 2k Ω (Mic), 20k Ω (Line), 51k Ω (Aux Bus In)
Output Impedance 200 Ω (Main Outputs, balanced),
100 Ω (Prefade Out)
Frequency Response 20 Hz – 20 kHz (+0, -1 dB) (CH 1-8 in, M
Total Harmonic Distortion <0.01% @ 1 kHz, typical
Phase Response All connections are phase coherent
Signal to Noise Ratio >99dB typical (Ref 0dBu)
CMRR >43 dB typical
Maximum Input Level -4 dBu (Mic), +22 dBu (Line)
Maximum Output Level +24 dBu (balanced), +18 dBu (unbalanced)
Maximum Gain 54 dB (Mic), 29 dB (Line)
Phantom Power Switch Selectable, +48V DC (regulated and filtered), 7 mA current limiting per leg
Power Requirements USA: 95-125 VAC, 50-60 Hz, <15W
Dimensions 1.75″ x 19″ x 6″ (4.5cm x 48.3cm x 15.2cm)
Weight 6.3 lbs (2.9 kg)
