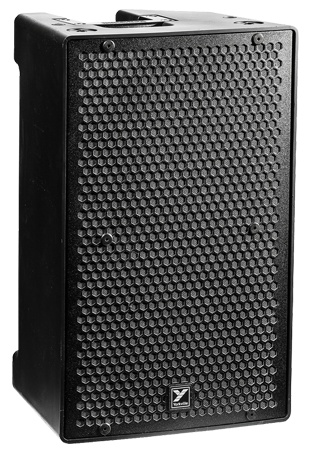

Yorkville PS10P - ParaSource Active 10 -- 800 watts program (1600 watts peak), on-board mixer, and more

Enlarge ↗

❮❯

sites/dagexpress/products/Yorkville/thumbnails_60_60/Parasource-PS10P.jpg

sites/dagexpress/products/Yorkville/thumbnails_60_60/Yorkville-PS10P.jpg

Brand	Yorkville ›
Price:	$ 1189.00

DESCRIPTION

Documentation ↗

Features
Integrated 1600 Watt Amplifier Peak Power (800 Watts Program)
10-inch Woofer with 2-inch Voicecoil
1-inch Compression Driver
90° x 70° Horn with Thermal and Peak Protection
Max SPL 127dB Peak (124dB Continuous)
High Efficiency Bi-Amplified Class-D Power Module
Passive Cooling Scheme (No Loud Fans Required)
Designed for Front-of-House or Monitor Applications
Integrated Two Channel Mini Mixer with XLR Microphone, and 1/4-inch Line Inputs
Multiband Limiting Delivers Extremely Transparent Listening Experience (Vocals Are Not Modulated By Bass)
Integrated All Metal Speaker Standmount Adaptor
Integrated Reinforced Flypoints
Lightweight ABS Cabinet Construction
Optional PS10PCOVER available
Made in Canada

Overview
Designed for maximum versatility, the PS10P works equally well as a Front-of House cabinet, side fill cabinet or floor monitor. Innovative and highly efficient passive cooling scheme ensures the PS10P will operate in any environment without need of noisy internal dust collecting fans. Integrated reinforced flypoints ensure the PS10P can be flown quickly and easily in any fixed installation.

Integrated DSP ensures the PS10P can operate in any application without complex external processing. A simple one-button high pass filter switch rolls off low frequency material when PS10P is used with any Paraline Series or powered élite System subwoofer. Bass boost delivers remarkably improved bottom end response from the PS10P without cluttering midrange program or affecting the cabinet's overall intelligibility - making it the perfect small speaker solution for larger events where additional subwoofer support is not available.

Innovative multi-band limiting allows the cabinet to deliver maximum output and remarkably event frequency response while protecting the PS10P's speaker components. Unlike competitive powered cabinets, the Parasource Series multi-band limiting scheme ensures essential elements like vocals and solo instruments in the essential midrange band aren't being modulated by transient attacks of low frequency material like kick drums and bass tracks. This delivers an extremely smooth and precise mix even at the highest output levels the cabinet can produce.

Rugged yet lightweight ABS cabinet and baffle design ensure unmatched long term reliability in the field.

Specifications
System Type Active Loudspeaker
Active or Passive Active
Power Rating (Watts) 800 watts (1600 watts peak)
Max SPL (dB) 127dB Peak (124dB Continuous)
Frequency Response (Hz +/- 3dB) 55hz to 20kHz
Driver Configuration 10-inch / 1-inch
HF Dispersion (°H x °V) 90 x 70
HF Protection Thermal/Peak Limiter
LF Driver(s) 10-inch Ceramic w/ 2-inch Voicecoil
LF Protection Thermal/Multiband Peak Limiter
LF Processing Dynamic Bass Extension
Cooling Scheme Passive
Power Cable Detachable IEC
Inputs 1/4-inch, XLR
Inputs - 1/4" Jacks Yes (x2)
Inputs - XLR Yes (x2)
Input Sensitivity (Vrms Sine) 1.23 Vrms +4dBu

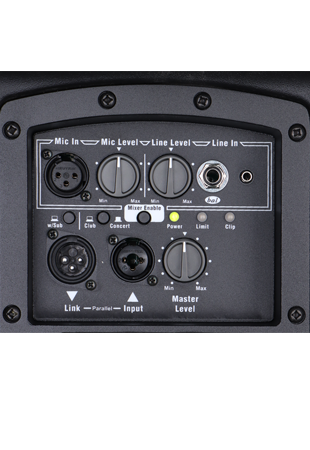

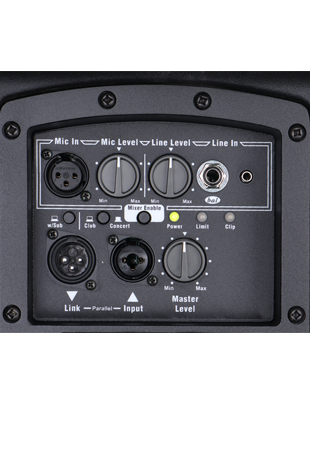

Mixer Controls Sub Mode HPF, Bass Boost, Mixer Enable
Level Controls Master Level, Mic Level, Line Level
LED Indicators Power, Limit, Clip
Bar Handles Yes
Flying Hardware EYEBOLT1/4A
Pole Mount Adapter (1 3/8"-3.5cm) Yes
Enclosure Materials ABS
Baffle Material ABS
Grille Perforated Metal
Dimensions (DWH xbackW, inches) 12 x 14 x 23
Dimensions (DWH xbackW, cm) 30.5 x 35.5 x 58.5
Weight (lbs/kg) 40 / 18.2
Specifications subject to change without notice
