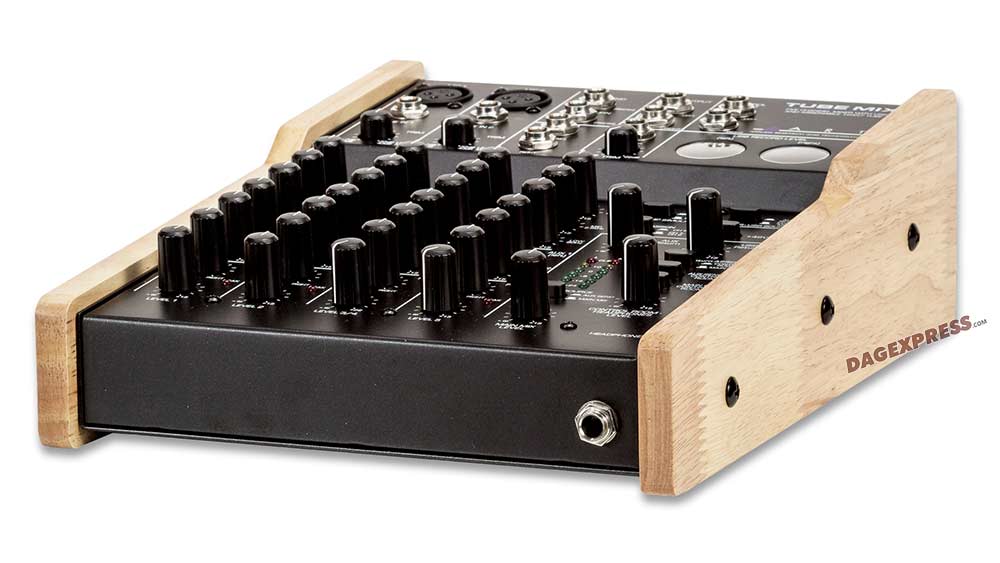

Art TUBEMIX ** - 5-Channel Mixer with USB I/O, a 12AX7 Tube assignable for one or both mic channels, and more!

Enlarge ↗
BrandArt ›
Price:$ 209.00

The ART Tube Mix provides a compact versatile audio interface. The Mixer supports two mic inputs, one high Impedance Instrument input, and two line inputs simultaneously. The Tube can be assigned to act as a dual channel tube mic preamp, or stacked and applied to the Instrument input for added warmth and tone with guitar or bass.

TubeMix Applications:

All input channels = fully featured with 3-band EQ, two aux sends, pan and level controls
Select inputs include input trim control and clip indicators for optimum level setting
High impedance instrument input has an amp simulation function
Versatile output section allows separate stereo monitor mix on the main buss while recording the via aux buss, or vice versa if required
Flexible Control Room/Headphone section allows routing to monitor the main mix, USB input and aux sends for maximum flexibility
Authentic VU meters and wood side panels add to the great vintage look and feel of the USB TubeMix

Input Impedance Microphone: 3.5k Ω
Line (CH1, CH2, CH3/4), 10k Ω
CH5 (Inst.), 1M Ω
Output Impedance Main, Control Room (Balanced/Unbalanced), 150/100 Ω
AUX Outputs, 150 Ω
Headphones, 100 Ω
Frequency Response 20-100kHz + 1dB
Maximum Input Level CH1, CH2 (Mic), +9dBu
CH1 CH2 (Line In), +20dBu
CH3/4 (EQ Flat), +20dBu
CH5 (EQ Flat), +16dBu
AUX Return, +24dBu
Maximum Output Level Main, Control Room (Balanced, Unbalanced), +20dBu/+17dBu
Aux Send, +20dBu
Headphones, 100mW / Ch @ 300 Ω, 50mW /Ch @32 Ω
Maximum Gain LINE IN to Main output (balanced), +63dB
CH 5 to Main output (balanced), 56dB
CH3/4 to Main output (balanced), +30dB
Equivalent Input Noise Microphone (@max gain), 127dBu “C”wtd.
Line (@max gain), -105dBu “C” wtd.
Instrument (@ max gain), -112dBu “C” wtd.
USB Computer Interface USB class compliant plug-and-play Mac and PC interface
A/D, D/A 16 Bit, 44.1 kHz or 48 kHz, USB selectable from computer
Phantom Power Switch selectable, +48V DC, filtered, current limited
Power Requirements 18 VAC, 1000mA
Dimensions 3.3″H x 7.8″W x 10.4″D (84mm x 198mm x 265mm)
Weight 5.5 lbs (2.5 kg)
Note 0 dBu = 0.775Vrms
