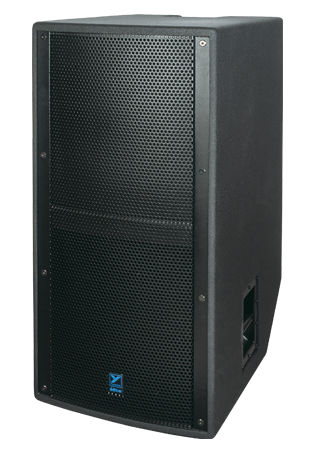

Yorkville UCS1P - Unity Series - 1500 watts - powered - 1/15 inch horn loaded - 15mm birch plywood/carpet

Enlarge ↗

❮❯

sites/dagexpress/products/Yorkville/thumbnails_60_60/Yorkville-UCS1P.jpg

sites/dagexpress/products/Yorkville/thumbnails_60_60/Yorkville-UCS1P-1.jpg

Brand	Yorkville ›
Price:	$ 1799.00

DESCRIPTION

Documentation ↗

Features
Integrated 2400 Watt Amplifier (1500 Watts Program)
15-inch Horn-Loaded Cabinet Design
Max SPL 139dB Peak (133dB Continuous)
37Hz - 150Hz with Adjustable HF Roll-Off
Bass Boost Level Control
High-Pass Output Roll-Off Switch
Paralleled XLR & 1/4-inch Inputs (Selectable Line or Speaker Level)
Solid 5/8-inch (15mm) Birch Plywood Construction
Made in Canada

Overview
This 1,500-Watt "earth mover" takes full advantage of its horn-loaded design to deliver fierce bottom end from a surprisingly compact, single 15-inch, back-loaded subwoofer. The high level of performance UCS1P delivers, especially considering its manageable size, is the direct result of outstanding driver, enclosure and electronic design. Optimized horn flare geometry, careful attention to the front and rear internal chamber dimensions, as well as the use of a high performance long excursion 15-inch driver, gives the UCS1 surprisingly high output volume and deep, extended bass response. Added to that, the onboard electronics include a 1,500-Watt amplifier, full-time soft limiting, an active, adjustable low-pass filter (HF Rolloff) and an adjustable pre-EQ curve (Shape) for plug-and-play ease of use!

The UCS1P enclosure is constructed from solid 15mm 11-ply birch and features a heavy gauge perforated metal grill , integrated tilt-back wheels and four strategically placed bar handles to make moving and stacking the UCS1P as easy as it can possibly be for a subwoofer in this class. It comes in a black carpet covering to mate with the U15, U15P and U215, or is available in a black painted Ultrathane finish (UCS1B) for use with the Ultrathane painted versions of the Unity™ loudspeakers. (U15B and U215B).

Specifications
System Type Horn Loaded Subwoofer
Active or Passive Active
Power Rating (Watts) 1500 Watts (2400 Watts Peak)
Max SPL (dB) 139dB Peak (133dB Continuous)
Frequency Response (Hz +/- 3dB) 37 - 150
Crossover Frequency (Hz) 90 - 110
LF Driver(s) 15 inch, Ceramic Magnet, 3 inch voicecoil
LF Protection Thermal / Overcurrent / Clip
LF Amplifier Type 3 tier class G
Cooling Scheme Dual speed controlled fans
Power Consumption (typ/max) 792/960VA (8A@120V, 4A@230V)
Inputs Line and Speaker
Inputs - 1/4" Jacks Combi-jack
Inputs - XLR 1 line/speaker level Combi-Jack input
Input Impedance (Bal/UnBal) Balanced
Input Sensitivity (Vrms Sine) 0.775
Level Controls Volume
EQ Controls Boost / Low Pass
Limiter Peak / Average
LED Indicators Clip / Limit

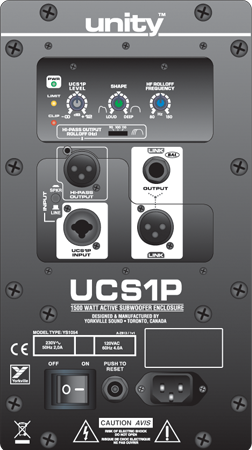

Other Controls / Features Active Controls:
Master Level
Bass Boost Level
HF Rolloff Frequency (80-150Hz)
Hi-Pass Output Rolloff Switch (90Hz, 100Hz, 110Hz)
Hi-Pass XLR Output
Speaker / Line level input switch
Corners Metal
Feet Rubber
Wheels 2 (Rear)
Bar Handles 2 (Side), 2 (Top), 1 (Bottom)
Pole Mount Adapter (1 3/8"-3.5cm) 1 (Top)
Enclosure Materials 15mm (5/8inch) 11-ply Russian Birch
Grille Perforated Metal
Covering / Finish Black Ozite (Carpet)
Dimensions (DWH xbackW, inches) 27 x 22.25 x 41
Dimensions (DWH xbackW, cm) 68.6 x 56.5 x 104
Weight (lbs/kg) 155 / 70.3
Specifications subject to change without notice
