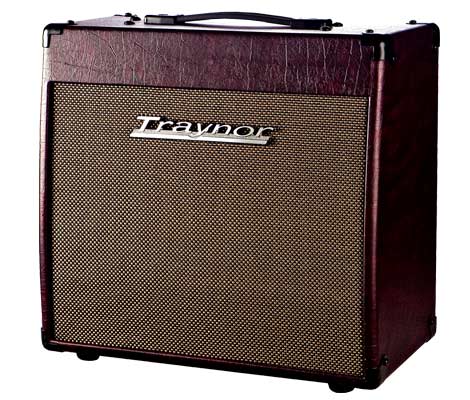

Traynor YCV20WR - Custom Valve 20WR - 20 Watt All Tube Guitar Combo with 12 inch Celestion G12M Greenback Speaker with Dual Footswitch - Wine Red Leatherette



YCV20WR - Custom Valve 20WR - 20 Watt All Tube Guitar Combo with 12 inch Celestion G12M Greenback Speaker with Dual Footswitch - Wine Red Leatherette
YCV20WR - Custom Valve 20WR - 20 Watt All Tube Guitar Combo with 12 inch Celestion G12M Greenback Speaker with Dual Footswitch - Wine Red Leatherette
YCV20WR - Custom Valve 20WR - 20 Watt All Tube Guitar Combo with 12 inch Celestion G12M Greenback Speaker with Dual Footswitch - Wine Red Leatherette
The Traynor Custom Valve 20WR answers the need for guitar players looking for superior sounding all-tube tone in a smaller, yet still feature loaded, lower-powered amplifier.

The Traynor Custom Valve 20WR is perfect for the studio or for any gig where 15 tube watts is more than enough power, but full functionality is required. Unlike competitive amplifiers in this class, the YCV20WR offers the discriminating player two discrete footswitchable channels with true independent gain and volume controls on each channel. A master three band EQ, effects loop, as well as an internal spring reverb are all standard equipment. Additional controls include bright switch on the clean channel and boost switch on the lead channel.

The YCV20WR is a Class-A power amplifier driven by three 12AX7A's and two EL84's and features a Celestion Greenback G12M 12 speaker for classic tone.

Class "A" Cathode bias amplifier
DC filaments on preamp tubes eliminate hum
Fully regulated power supply with tube rectifier emulation
Long spring reverb
Classic Celestion G12M "Greenback" speaker
Wine Red leatherette finsh with oatmeal grille
Speaker jack and selectable defeat for disabling the internal speaker
D.I. Output for connections straight to the board
All plywood enclosure
Heavy gauge perforated grille with cloth cover
Custom design "Chicken Beak" knobs

Cabinet Impedance (Ohms) 8
Power @ min. impedance (Watts) 15
Speaker Configuration - LF (Size / Power) Single 12 inch Celestion Greenback
Inputs 2

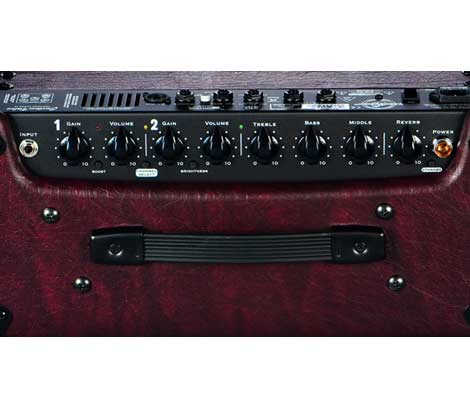

Channel 1 - Inputs 1/4 inch phono
Channel 1 - Controls Gain, Volume
Channel 1 - Switches Boost
Channel 2 - Inputs Shares Channel 1
Channel 2 - Controls Gain, Volume
Channel 2 - Switches Channel Select, Brightness
Main Tone Controls Bass, Mid, Treble

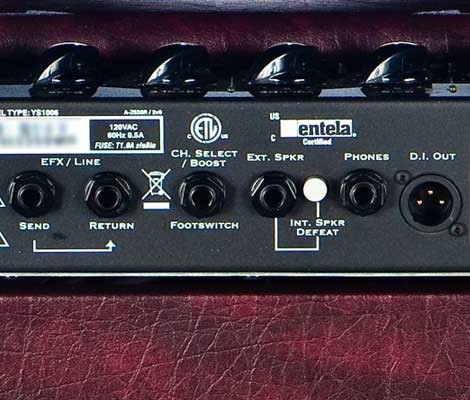

Line Out (type / configuration) 1/4 inch TRS / Rear
Effects Loop / Location Yes / Rear
Effects Footswitch / Function Yes / Channel Select / Boost
Internal Reverb / Effects Spring Reverb
LED Indicators Channel / Boost / Power / Standby
External speaker output / location Yes / Rear with intenral speaker defeat
Headphone Jack Yes
Dimensions (DWH, inches) 9.5 x 18 x 17
Dimensions (DWH, cm) 24 x 47 x 43
Weight (lbs / kg) 37.9 / 17.2
