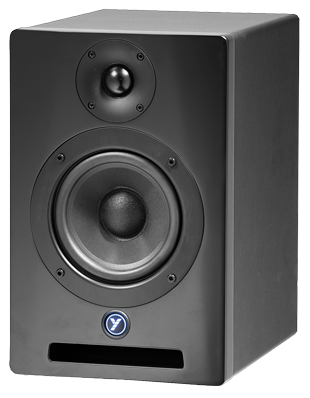

Yorkville YSM5 - Powered studio reference monitor - 5 inch BLACK woofer, 1 inch dome tweeter - 30w+15w biamp - power & clip LED's

Enlarge ↗

❮❯

sites/dagexpress/products/Yorkville/thumbnails_60_60/MicroMIX-YSM5.jpg

sites/dagexpress/products/Yorkville/thumbnails_60_60/MicroMIX-YSM5-1.jpg

Brand	Yorkville ›
Price:	$ 169.00

DESCRIPTION

Documentation ↗

Features
Reproduces source material with near pinpoint accuracy and detail
Contoured MDF baffle engineered to minimize front face reflections
Front facing port design eliminates bass coupling with back walls and corners in imperfect listening environments
Improved phase response provides a wider 'sweet spot' in the listening position
Strategic bracing and ample internal dampening eliminates unwanted low frequency rumble
Biamplified Power Module (40 watts woofer / 15 watts tweeter)
Custom designed soft dome tweeter
High quality low frequency 5-inch woofer
Rock-solid 3/4-inch MDF cabinet construction
XLR and ¼-inch TRS balanced inputs
4-position high frequency trim control to optimize response for recording space
Front mounted power switch for added convenience

Overview
Compatible with virtually any source, Yorkville YSM5 has a widely variable input trim control making it compatible with any source including direct connection to a soundcard, or connection to a professional console control room output. Four position high frequency trim controls (at -2, -1, 0 and +1.5dB) allow user adjustable EQ contour to compensate for speaker placement in less than perfect listening spaces.

Specifications
System Type 2-Way
Active or Passive Active
Power Rating (Watts) 55
Biampable Self Powered
Biamp Operation Only Yes
Max SPL (dB) 105
Frequency Response (Hz +/- 3db) 52-20,000
Crossover Frequency (Hz) 3000
HF Driver(s) 1 inch Neodymium soft-dome tweeter
HF Power Rating (Watts) 15
LF Driver(s) 5 inch Composite woofer
LF Power Rating (Watts) 40
LF Protection Thermal / Current Limit
HF Distortion 0.0003
LF Distortion 0.0002
Inputs 1 Combi-Jack
Mixer Controls HF Trim (-2,-1, 0,+1dB) 4-position preset
Level Controls Input Gain
Enclosure Materials MDF
Baffle Material MDF
Port(s) Yes - Front
Dimensions (DWH xbackW, inches) 9.5 x 7.5 x11.5
Dimensions (DWH xbackW, cm) 24 x 19 x 29
Weight (lbs/kg) 15 / 6.8
Specifications subject to change without notice
