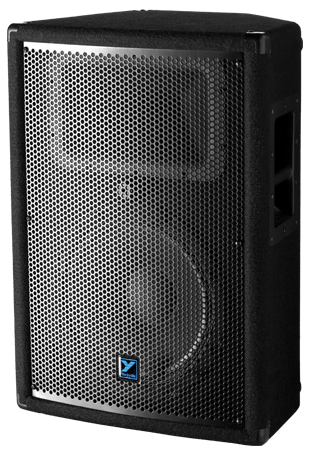

Yorkville YX12C - 200 watts - 8 ohms - 1/12" & 1 inch HF driver on 90°x40° horn - FOH/Monitor combo 2x 1/4 inch & 2x Speakon4 inputs, plywood/carpet enclosure


Enlarge ↗
×
BrandYorkville ›
Price:$ 419.00



Features
200 Watt Full Range Loudspeaker
12-inch Woofer
1-inch Compression Driver (1.4-inch Voicecoil)
Designed for Front-of-House or Monitor applications
90° x 40° Injection Molded ABS Waveguide Horn
Innovative Dual Bulb CTL™ High Frequency Driver Protection
2 x Speakon™ and 2 x 1/4-inch Parallel Inputs
Integrated All Metal Speaker Standmount Adaptor
Solid 5/8-inch (15mm) Plywood Construction
Made in Canada

Overview
The YX12C cabinet uses a single 12-inch driver and an injection molded 90 x 40 degree horn with 1-inch throat and 1.4-inch neodymium compression driver. Yorkville's tried and true dual-bulb CTL™ protection system protects the horn driver's aluminum diaphragm ensuring unmatched reliability in the field. The YX12C is built road-ready with easy-to-clean, durable black carpet covering, solid internal plywood bracing and reinforced internal component mounts.

Designed with working musicians in mind, the YX12 offers rugged 5/8-inch plywood cabinet construction, all metal bar handles, metal input plate, integrated speaker mounts and a custom punched, perforated metal grille to protect the speaker components. A modified trapezoidal shape ensures the YX12C can function equally as well as a front-of-house or monitor speaker.

Specifications
System Type 2-Way
Active or Passive Passive
Power Rating (Watts) 200
Biampable No
Nominal Impedance (Ohms) 8
Sensitivity (dB @1Watt/1m) 99
Max SPL (dB) 122
Frequency Response (Hz +/- 3dB) 65 - 20k
Crossover Frequency (Hz) 1800
Driver Configuration 12 inch / 1.4 inch
HF Driver(s) 1.4 inch Aluminum (1 inch Throat)
HF Horn Injection Molded ABS
HF Dispersion (°H x °V) 90 x 40
HF Protection CTL™
LF Driver(s) 12 inch Ceramic
LF Power Rating(Watts) 200
Inputs - 1/4" Jacks 2
Inputs - Speakon 4-pin 2
Corners Metal
Feet Plastic Glides
Bar Handles 2 (Side)
Pole Mount Adapter (1 3/8"-3.5cm) Yes
Enclosure Materials 15mm (5/8inch) Plywood
Grille Custom Punched Black Perforated Metal
Covering / Finish Black Ozite
Dimensions (DWH xbackW, inches) 13.75 x 18 x 25.5 x 8.5
Dimensions (DWH xbackW, cm) 34.9 x 45.7 x 64.8 x 21.6
Weight (lbs/kg) 37 / 16.8
Specifications subject to change without notice
