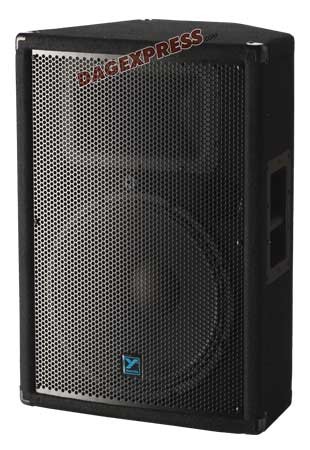

Yorkville YX15C - 300 Watt Full Range Loudspeaker with 15-Inch Woofer



YX15C - 300 Watt Full Range Loudspeaker with 15-Inch Woofer
YX15C - 300 Watt Full Range Loudspeaker with 15-Inch Woofer
Enlarge ↗
BrandYorkville ›
Price:$ 449.00



Overview
The YX15 cabinet uses a single 15-inch driver and an injection molded 90 x 40 degree horn with 1-inch throat and 1.4-inch neodymium compression driver. Yorkville's tried and true dual-bulb CTL™ protection system protects the horn driver's aluminum diaphragm ensuring unmatched reliability in the field. The YX15 is built road-ready with easy-to-clean, durable black carpet covering, solid internal plywood bracing and reinforced internal component mounts.

Designed with working musicians in mind, the YX15 offers rugged 5/8-inch plywood cabinet construction, all metal bar handles, metal input plate, integrated speaker mounts and a custom punched, perforated metal grille to protect the speaker components. A modified trapezoidal shape ensures the YX15 can function equally as well as a front-of-house or monitor speaker.

Features
300 Watt Full Range Loudspeaker
15-inch Woofer
1-inch Compression Driver (1.4-inch Voicecoil)
Designed for Front-of-House or Monitor applications
90° x 40° Injection Molded ABS Waveguide Horn
Innovative Dual Bulb CTL™ High Frequency Driver Protection
2 x Speakon™ and 2 x 1/4-inch Parallel Inputs
Integrated All Metal Speaker Standmount Adaptor
5/8-inch (15mm) Plywood Construction
Made in Canada

Specifications
System Type 2-Way
Active or Passive Passive
Power Rating (Watts) 300
Biampable No
Nominal Impedance (Ohms) 8
Sensitivity (dB @1Watt/1m) 99
Max SPL (dB) 124
Frequency Response (Hz +/- 3dB) 60 - 20k
Crossover Frequency (Hz) 1800
Driver Configuration 15 inch / 1.4 inch
HF Driver(s) 1.4 inch Aluminum (1-inch Throat)
HF Horn Injection Molded ABS
HF Dispersion (°H x °V) 90 x 40
HF Protection Dual Bulb CTL™
LF Driver(s) 15 inch Ceramic
LF Power Rating(Watts) 300
Inputs - 1/4" Jacks 2
Inputs - Speakon 4-pin 2
Corners Metal
Feet Plastic Glides
Bar Handles 2 (Side)
Pole Mount Adapter (1 3/8"-3.5cm) Yes
Enclosure Materials 15mm (5/8inch) Plywood
Grille Custom Punched Black Perforated Metal
Covering / Finish Black Ozite
Dimensions (DWH xbackW, inches) 15.5 x 19.25 x 27.5 x 7.5
Dimensions (DWH xbackW, cm) 39.4 x 48.9 x 69.9 x 19
Weight (lbs/kg) 45 / 20.4
Specifications subject to change without notice
