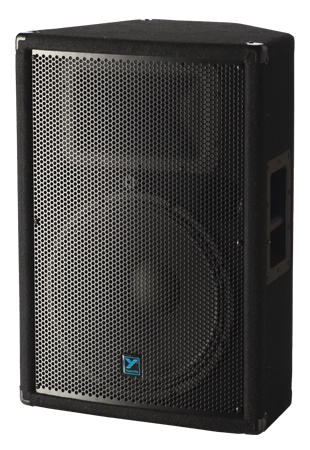

Yorkville YX15P - 300 watts - powered - 1/15 inch & 1 inch HF driver on 90°x40° horn - FOH/Monitor combo 250/50 watts bi-amp built in mixer with microphone and line inputs and more, plywood/carpet enclosure

Enlarge ↗

Brand	Yorkville ›
Price:	$ 439.00

DESCRIPTION

Documentation ↗

Features
Integrated 200 Watt Amplifier
Bi-Amplified Power Module
15-inch Woofer
1-inch Compression Driver (1.4-inch Voicecoil)
Designed for Front-of-House or Monitor applications
90° x 40° Horn with with Peak Limiter Protection
Built-in Mixer with Two Band EQ and LF Roll-Off Mode Switch
Paralleled XLR and 1/4-inch Inputs
Integrated All Metal Speaker Standmount Adaptor
Solid 5/8-inch (15mm) Plywood Construction

Overview
The 200-watt YX15P's compact design, integrated standmount and 90 x 40 degree horn make it a highly effective front of house box, or an ideal 'repeater' cabinet in more complex systems where additional cabinets are required to effectively distribute sound around a large room. The modified trapezoidal shape makes it ideal for front-of-house applications or for use as an active stage monitor.

XLR balanced microphone input as well as an XLR / 1/4-inch TRS balanced combi-jack line input on the power module means the YX15P can be easily connected to any source. A highly effective three-band EQ means the YX15P can be easily balanced for the room, ensuring simple system set-up. The XLR balanced line output allows multiple YX15P's to be linked together quickly and easily.

The YX15's horn amplifier uses a proven two-tier class A/B technology, allowing it to produce loud clean transients and extremely sharp sibilants. The woofer or low frequency amplifier uses an extremely efficient class-H two-tier amplifier technology that provides high headroom at a lower operating temperature, making it the ideal lightweight amplification solution to drive the YX15P's 15-inch woofer.

The rugged and reliable YX15P uses a full plywood cabinet construction, integrated stand mount adaptor, metal bar handles, a full metal amplifier chassis and all-metal grille to protect the speaker and amplifier components.

Specifications
System Type 2-Way
Active or Passive Active
Power Rating (Watts) 200
Biampable Self Powered
Max SPL (dB) 122
Frequency Response (Hz +/- 3dB) 60 - 20k
Crossover Frequency (Hz) 1800
Driver Configuration 15 inch / 1.4 inch
HF Driver(s) 1.4 inch Aluminum (1 inch Throat)
HF Horn Injection Molded ABS
HF Dispersion (°H x °V) 90 x 40
HF Protection Peak Limiter
LF Driver(s) 15 inch Ceramic
Total Power (Watts) 200
HF Power Amplifier (Watts) 20
HF Amplifier Type Class A/B
LF Power Amplifier (Watts) 180
LF Amplifier Type Two Tier Class H
Power Cable Yes
Power Switch Yes
Power Consumption (typ/max) 120 / 310 VA
Inputs 2
Inputs - 1/4" Jacks 1 Line / 1 Mic (XLR Combi jacks)
Input Sensitivity (Vrms Sine) +4dBv / 1.23V
Mixer Controls Mic Gain
Line In Gain
Bass/Mid/Treble
Level Controls Main Volume
Limiter Yes
LED Indicators Power/Activity/Limit
Corners Metal
Feet Plastic Glides
Bar Handles 2 (Side)
Pole Mount Adapter (1 3/8"-3.5cm) Yes
Enclosure Materials 15mm (5/8inch) Plywood
Covering / Finish Custom Punched Black Perforated Metal
Optional Covering / Finishes Black Ozite
Dimensions (DWH xbackW, inches) 15.5 x 19.25 x 27.5 x 7.5
Dimensions (DWH xbackW, cm) 39.4 x 48.9 x 69.9 x 19
Weight (lbs/kg) 51 / 23.1
Specifications subject to change without notice
