Yorkville ES12P - 1200 watts - powered - 1/12 inch - next generation horn loaded subwoofer - DSP limiters, and 3 performance presets. iOS and Android App for advance subwoofer control - birch plywood & painted finish.

ES12P - 1200 watts - powered - 1/12 inch - next generation horn loaded subwoofer - DSP limiters, and 3 performance presets. iOS and Android App for advance subwoofer control - birch plywood & painted finish.

Enlarge ↗

❮❯

sites/dagexpress/products/Yorkville/thumbnails_60_60/Yorkville-ES12P.jpg

sites/dagexpress/products/Yorkville/thumbnails_60_60/Yorkville-ES12P-1.jpg

Brand	Yorkville ›
Price:	$ 1949.00

DESCRIPTION

Documentation ↗

Features
Next Generation 1200-watt Rear Horn Loaded Powered Subwoofer Design
Custom Designed Long Excursion Cast Frame 12-inch Woofer with 4-inch Voice Coil
Proprietary DSP Based Limiters for Increased Output, Improved Sonic Quality and Greater Long Term Reliability
Three DSP Based Preset Modes for Increased Flexibility in Any Live Sound or Club Application (Punchy, Smooth or Deep Response Curves)
iOS and Android App for Added Subwoofer Control
Made in Canada

Specifications
System Type Rear Horn Loaded Subwoofer
Active or Passive Active
Power Rating (Watts) 1200 Watts (2400 Watts Peak)
Max SPL (dB) 132dB Peak (126dB Continuous)
Frequency Response (Hz +/- 3dB) 48Hz - 150Hz
LF Driver(s) 12-inch Cast Frame Woofer w/4-inch Voicecoil, +/-15mm max travel
LF Protection Thermal / Overcurrent (X-max) / Clip
Power Consumption (typ/max) 120V (4.0A / 5.6), 230V (2.0A / 2.8)

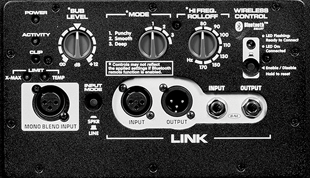

Inputs - 1/4" Jacks 2 Link Input & Link Output
Inputs - XLR 1 Mono blend line input, 2 Link Input & Link Output
Level Controls Master - Sub Level
Other Controls / Features Active Controls: Mode - 1 Punchy, 2 Smooth, 3 Deep
High Frequency Rolloff - 10Hz Steps from 80Hz to 150 Hz
Indicators - Power, Activity, Protection (Clip, X-Max, Temp) & Bluetotth
Feet Rubber
Wheels None
Bar Handles 1 (Left Side), 1 (Right Side)
Pole Mount Adapter (1 3/8"-3.5cm) 1 (Top)
Enclosure Materials 15mm (5/8inch) 11-ply Russian Birch
Grille Perforated Metal
Covering / Finish Black Ultrathane Paint (LS801PB)
Dimensions (DWH xbackW, inches) 17 x 17x 27
Dimensions (DWH xbackW, cm) 43 x 43 x 68.6
Weight (lbs/kg) 85 / 38.5
Specifications subject to change without notice
