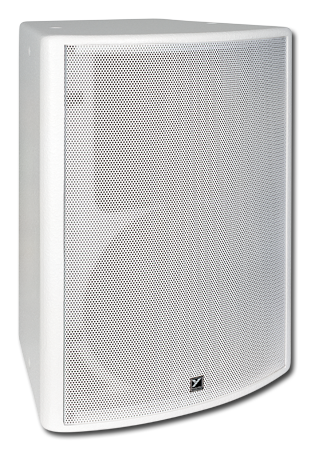

Yorkville C2285 - 300 watts - 12" spkr & 1 inch driver on 80°x50° rotatable horn, flying hdwr - two points on top & bottom plus

Enlarge ↗

Brand	Yorkville ›
Price:	$ 699.00

DESCRIPTION

Documentation ↗

Features
300 Watts / 8 ohms
12-inch Woofer / 1-inch Horn Driver
80° x 50° Rotatable Waveguide Horn
Proven CTL™ High Frequency Driver Protection
Integrated 3/8-inch flypoints
Solid 5/8-inch (15mm) Plywood Cabinet Construction
All Metal Grille
1/4-inch & Binding Post Inputs

Specifications
System Type Two Way
Active or Passive Passive
Power Rating (Watts) 300
Nominal Impedance (Ohms) 8
Sensitivity (dB @1Watt/1m) 99
Max SPL (dB) 124
Frequency Response (Hz +/- 3dB) 55 - 16k
Crossover Frequency (Hz) 2500
Driver Configuration 12 inch / 1 inch
HF Driver(s) 1 inch Mylar
HF Horn Rotatable ABS Waveguide
HF Dispersion (°H x °V) 80 x 50 Rotatable
HF Protection CTL
Inputs - 1/4" Jacks 2
Inputs - Binding Post 1 Pair
Flying Hardware 3/8 inch x 9
Enclosure Materials 15mm (5/8inch) 11-ply Russian birch
Grille Perforated Metal
Covering / Finish Two Part White Epoxy
Optional Covering / Finishes Special Order
Dimensions (DWH xbackW, inches) 14 x 17 x 24 x 11
Dimensions (DWH xbackW, cm) 36 x 43 x 61 x 28
Weight (lbs/kg) 44.5 / 20.2
Specifications subject to change without notice
