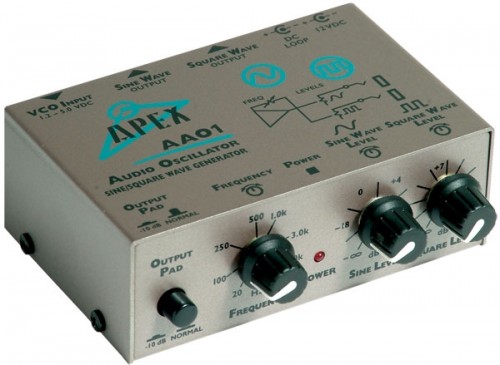

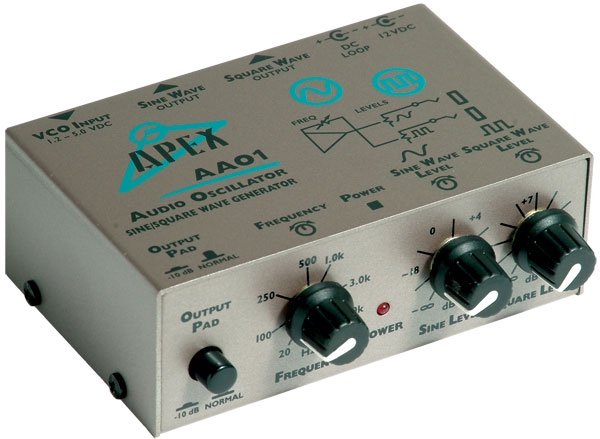

Apex AAO1 - Audio Oscillator - Sweepable - 10db Pad - Separate Square Wave / Sine Wave In/Out and Level Controls - 12v Ac Adaptor Included


Brand:Apex ›
 Other Solution Boxes ›
Sku:AAO1
Price:$ 86.99



Audio Oscillator - Sweepable - -10dB Pad - Separate Square Wave / Sine Wave In/out and level controls - 12V AC adaptor Included

Effective for testing audio circuits and speaker systems
Provides a steady-state sine wave and/or square wave at the frequency of your choice
Suitable for testing and measuring all types of audio circuits or checking the calibration of crossovers
Tunable from 20 Hz to 20 kHz and variable in gain over a wide range thanks to independent sine and square wave level controls
Overall -10dB output pad
Allows connection of an external source of DC control voltage (computer or keyboard instrument) to vary the AA01's oscillator frequency
All Metal Case
Specifications
Output Impedance: 100 Ohm
Drive Level Ability: +11dB Sine, +14dB Square
THD: Sine <1 %
Noise: N/A
