Amplifiers > Drum

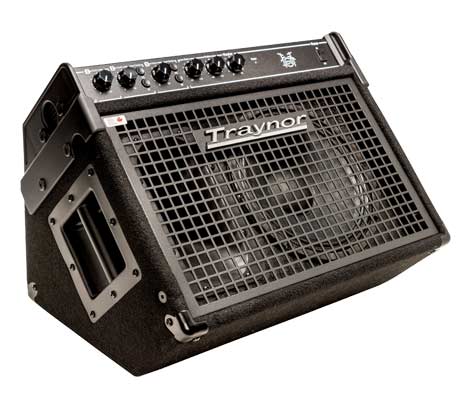

Traynor DW10 - 200 Watt 1x10 inch Electronic Drum Wedge, Compact and Lightweight with 3 channels
TRAYNOR Electronic Drum Amplifiers ›
Designed for the drummer, the Traynor DW10 200-watt combo amplifier easily handles the dynamics, percussiveness and transients of electronic drums. Built for practically any situation, the rugged wedge cabinet includes a built-in stand adapter helping it work on practically any stage.
The 200-watt amp driving the high power/low distortion 10-inch woofer and 1-inch compression driver deliver fantastic tone and clarity.
It is also a great little mixer featuring three discrete stereo input channels and a balanced stereo XLR DI output to send to the main mixing board. Channels 2 and 3 can bypass the DI output so monitor feeds or metronome sources can be mixed into the DW10, but not sent to the front-of house PA - making the DW10 combo the ideal monitoring solution for the working drummer.
1. Gain Control (Ch. 1-3)
The Gain controls on the channels set the relative levels of the instruments/sources connected to
the corresponding inputs.
2. Clip LED (Ch. 1-3)
The channels clip LEDs light up when the signal is about to distort, if it's blinking sporadically while
you are playing hard, it's set at the right level. If it's on fairly consistently, turn it down (to avoid distortion).
3. EQ Send Switch (Ch. 2-3)
Unlike Channel 1, you are able to bypass the DW10's tone controls for Channels 2 and 3. By
default, the signals from these channels bypass the bass and treble controls. If you wish for either of
them to be affected by the tone controls, press this switch in.
4. DI Send Switch (Ch. 2-3)
Channel 2 and 3 also feature the ability to choose whether or not to send the signals to the stereo
DI output. By default, the signals from these channels are not sent to the stereo DI, if you wish for
either of them to be sent to the DI out mix, press this switch in.
The 200-watt ultra-compact DW10 has been designed from the ground up to handle wide dynamic range and transient nature of modern electronic drum kits easily and effectively. Ideal for stage, private practice or rehearsal hall, the Traynor DW10 drum amplifier uses a compact wedge monitor format and a high power low distortion 10-inch woofer and 1-inch compression driver on a PA style horn to deliver maximum tone and clarity.
Three discrete stereo input channels with stereo XLR balanced DI output make the DW10 a perfect small mixer solution for live applications. Channels 2 and 3 can bypass the DI output so monitor feeds or metronome sources can be mixed into the DW10, but not sent to the Front-of-House PA - making the DW10 combo the ideal monitoring solution for the working drummer.
Solid plywood cabinet construction and an all metal grille ensure unmatched long term ruggedness and reliability.
Compact 200-watt Wedge Design
Tuned for Maximum Performance with Electronic Drum Kits
High Performance 10-inch Woofer
1-Inch PA Quality High Frequency Compression Driver
Three Discrete Stereo Input Channels
Selectable DI Send on Channel Three Allowing for Isolated Click Track or Local Monitoring
Stereo XLR Balanced Output
Power @ min. impedance (Watts) 200
Speaker Configuration - LF (Size / Power) 10-inch
Speaker Configuration - HF (Size / Power) 1-inch Compression Driver
Channel 1 - Inputs 2 x 1/4-inch Balanced/Unbalanced Stereo
Channel 1 - Controls Gain
Channel 2 - Inputs 2 x 1/4-inch Balanced/Unbalanced Stereo
Channel 2 - Controls Gain, EQ Send, DI Send
Channel 3 - Inputs 2 x 1/4-inch Balanced/Unbalanced Stereo
Channel 3 - Controls Gain, EQ Send, DI Send
Master Volume Control Yes
Line Out (type / configuration) XLR Balanced
LED Indicators Power, Ch. 1 Clip, Ch. 2 Clip, Master Clip
Dimensions (DWH, inches) 13.75 x 18.75 x 14
Dimensions (DWH, cm) 35 x 48 x 36
Weight (lbs / kg) 28 / 12.6
