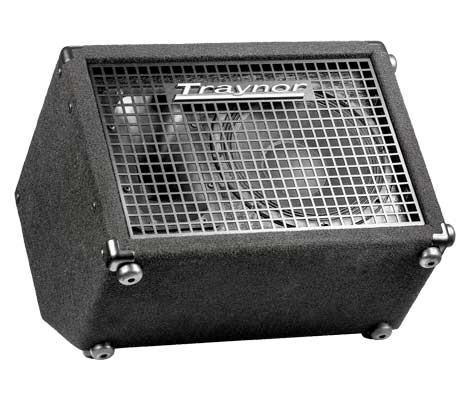

Traynor BLOCK12 - 200w 1x12 inch keyboard combo, compact and lightweight, 4 channel

Enlarge ↗
BrandTraynor ›
Price:$ 769.00

The Traynor Block12 keyboard combo amplifier delivers 200 Watts of clean power into a specially optimized 12-inch speaker/horn combination.

Four input channels allow direct connection to stereo keyboards, laptops, electronic drums, sound modules and microphones, making it the most compact mixer/speaker solution in the Traynor line. A handy link function allows two Block12 amplifiers to be connected for stereo operation with double the input channels.

Designed for maximum versatility, the Block12 uses a combination box design that allows the cabinet to operate in an upright position for small PA applications, or in a wedge format for use as a monitor. A solid plywood cabinet construction, black carpet covering, and a curved, perforated all-metal grille ensure unmatched long-term reliability. Integrated standmount adaptor allows the Block12 to be used on a standard speaker stand for added versatility.

Four Channel Integrated Mixer
XLR, TRS 1/4-inch and TRS 1/8th -inch Inputs
200 Watts
12-Inch Woofer / 1-inch Horn
XLR Balanced DI Output
Stereo Link Out for Stereo Operation and Expansion (when used with another Block12 Amplifier)
Solid Plywood Cabinet Construction
Wedge Design for Monitor Applications
Integrated Standmount Adaptor
Made in Canada

Cabinet Program Power (Watts) 200
Speaker Configuration - LF (Size / Power) 12-inch/200 watts
Speaker Configuration - HF (Size / Power) 1-inch /50 watts
Frequency Response (Hz +/- 3dB) 20 - 20k
Inputs 4
Channel 1 - Inputs 2 x 1/4-inch
Channel 1 - Controls Gain, 2 band EQ
Channel 2 - Inputs 1/4-inch/XLR
Channel 2 - Controls Gain, 3 band EQ
Channel 3 - Inputs Stereo 1/4-inch, Stereo 3.5mm
Channel 3 - Controls Gain
Channel 4 - Inputs Mono, 1/4-inch
Channel 4 - Controls Gain
Master Volume Control Yes
Input Sensitivity (mV) 250
Line Out (type / configuration) Balanced XLR (Pre/Post EQ, Pre Master)
Line Out Sensitivity (Vrms) 1 Vrms
LED Indicators Power, Ch. 1-3 Clip
Protection Thermal
Dimensions (DWH, inches) 14.3 x 21.25 x 14.65
Dimensions (DWH, cm) 36.5 x 54 x 37.5
Weight (lbs / kg) 33.5 / 15.2
