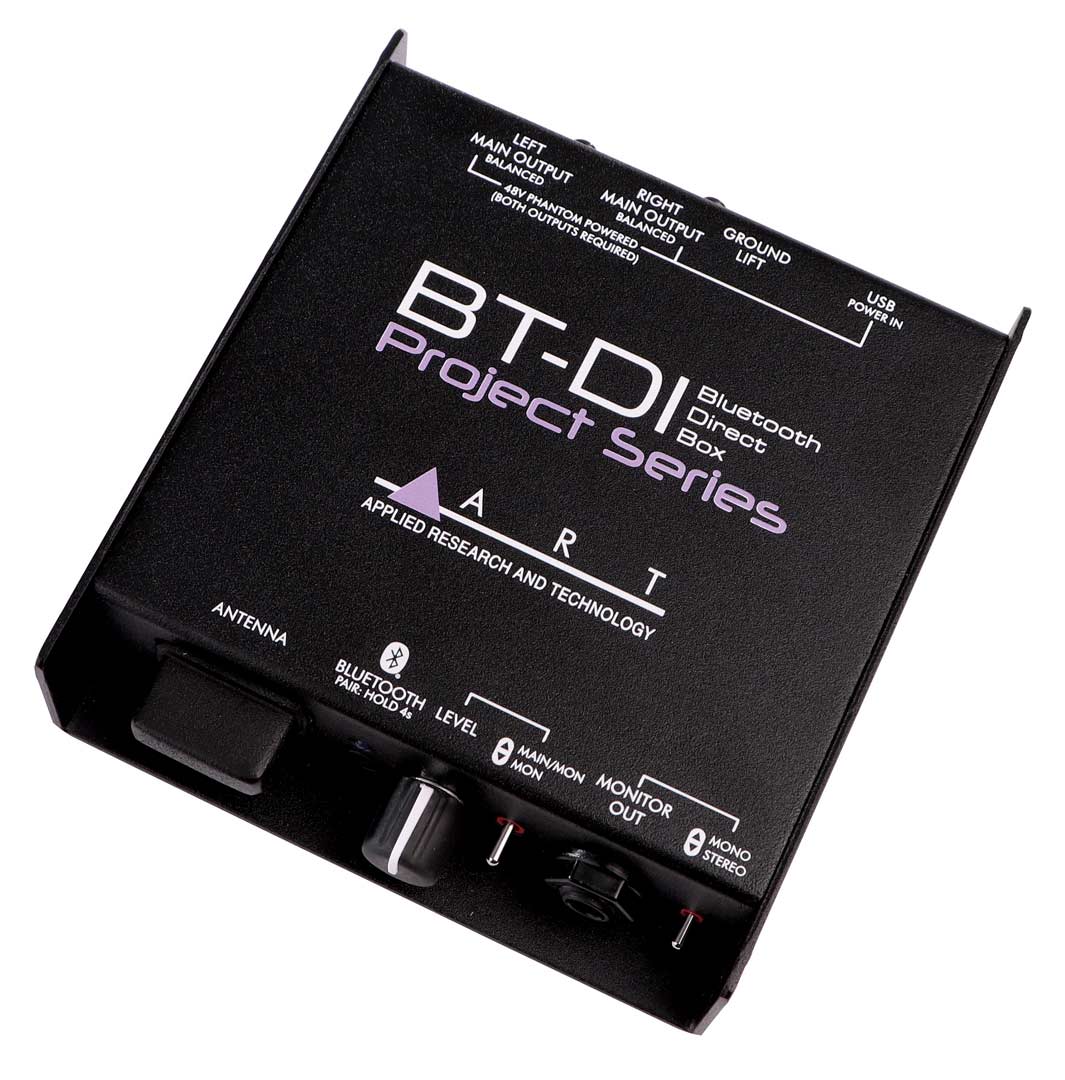

Art BT-DI Project Series Bluetooth Direct Box

Enlarge ↗
BrandArt ›
Price:$ 149.99

Make your professional audio devices Bluetooth compatible with the ART BT-DI, a rugged and flexible Bluetooth Audio DAC. The BT-DI is designed to provide a reliable Bluetooth interface from computers, phones, and legacy Bluetooth devices to any installation. Working as a remote extension of your mixer and mic outputs, the BT-DI utilizes phantom power, so an external power supply is not required.

Key Features
• Bluetooth 5.0 receiver
• External antenna for long-range operation
• Transformer isolated XLR outputs
• Headphone out
• Selectable fixed/external USB supply OR Phantom Power
• Headphone can be summed Mono
• Compact rugged package, extruded chassis
• Designed and developed in the USA

Main Output Connections: XLR (2) main output, transformer coupled, switchable ground.
Main Output Impedance: 300 Ohms.
Maximum Output Level: 30 dBu balanced Main output, 0 dBu Headphone output.
Signal to Noise Ratio: -90dB unweighted typical. THD <0.05% typical
Bluetooth Version: 5.0, up to 50m, Class 2 device (BDR/EDR)
Supported Audio: CODEC’s SBC, AAC
Power Requirements: 5V USB (80ma) or +48V, Phantom power w/both XLR’s connected.
Dimensions: (HxWxD 1.6-inch x 5.0-inch x 5.5-inch (36 x 126 x 140 mm)
Weight: 2.0 lbs. / 0.91 kg
