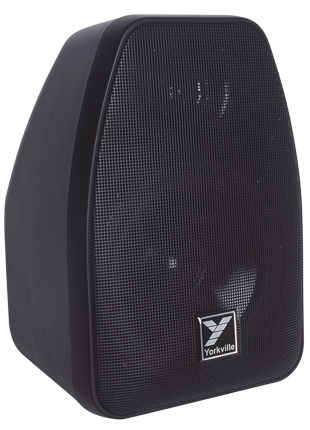

Yorkville C110 - Plastic speaker enclosure, 40 watt, 5" spkr with tweeter - integrated 70 volt transformer with 10w/20w/30w and bypass (8R) selector, keyhole mounting points and L-bracket - screw terminal inputs



C110 - Plastic speaker enclosure, 40 watt, 5 spkr with tweeter - integrated 70 volt transformer with 10w/20w/30w and bypass (8R) selector, keyhole mounting points and L-bracket - screw terminal inputs
C110 - Plastic speaker enclosure, 40 watt, 5 spkr with tweeter - integrated 70 volt transformer with 10w/20w/30w and bypass (8R) selector, keyhole mounting points and L-bracket - screw terminal inputs
Enlarge ↗
BrandYorkville ›
Price:$ 65.00




DESCRIPTION
Features
Two-Way Compact 70-volt Installation Loudspeaker
5-inch Woofer / 1-inch Mylar Dome Tweeter
Selectable 70-volt or 8-ohm Operation
Power Taps at 10, 20 and 30 Watts
40 watts (8-ohm mode)
Screw Terminal Input
ABS Plastic Cabinet and Metal Grille
Mounting L-Bracket Included

Overview

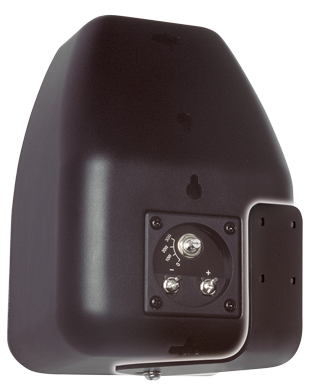

The C110 features an internal 70V matching transformer, which allows multiple C110's to be connected together without danger of overloading the power amplifier due to impedance drop. The user has a choice of three sensitivity settings (10W, 20W, 30W or off) selected via a rotary switch located on the rear panel of the speaker, allowing convenient adjustment of the relative volumes of multiple interconnected cabinets.

A wide variety of mounting options are available using the four integral screw-slots or the provided metal L-bracket which allows it to be angled up, down or sideways depending on the mounting orientation. The C110 is available in a low-reflectance black finish with a matching, perforated metal grille and can be painted to match its surroundings.

Specifications
System Type 2-way, Full Range
Active or Passive Passive
Power Rating (Watts) 40
Nominal Impedance (Ohms) 8
Sensitivity (dB @1Watt/1m) 92
Frequency Response (Hz +/- 3dB) 85 - 19,000
Driver Configuration Tweeter, 5 inch
HF Driver(s) Mylar Tweeter
HF Dispersion (°H x °V) 90x90
LF Driver(s) 5 inch
Inputs 1
Inputs - Screw Terminal 1
Other Controls / Features Internal 70V Transformer with Switchable Taps (10W / 20W / 30W / Off)
Flying Hardware L-Bracket, Rear Key Hole Mounts (4)
Enclosure Materials Injection Molded, ABS Plastic
Port(s) 1
Grille Perforated Steel
Covering / Finish Low Reflective Black
Dimensions (DWH xbackW, inches) 5.5 x 6.25 x 8.9
Dimensions (DWH xbackW, cm) 14 x 15.9 x 22.6
Weight (lbs/kg) 3.8 / 1.7
Specifications subject to change without notice
