Yorkville C120W - C120 in white

Enlarge ↗
BrandYorkville ›
Price:$ 109.00

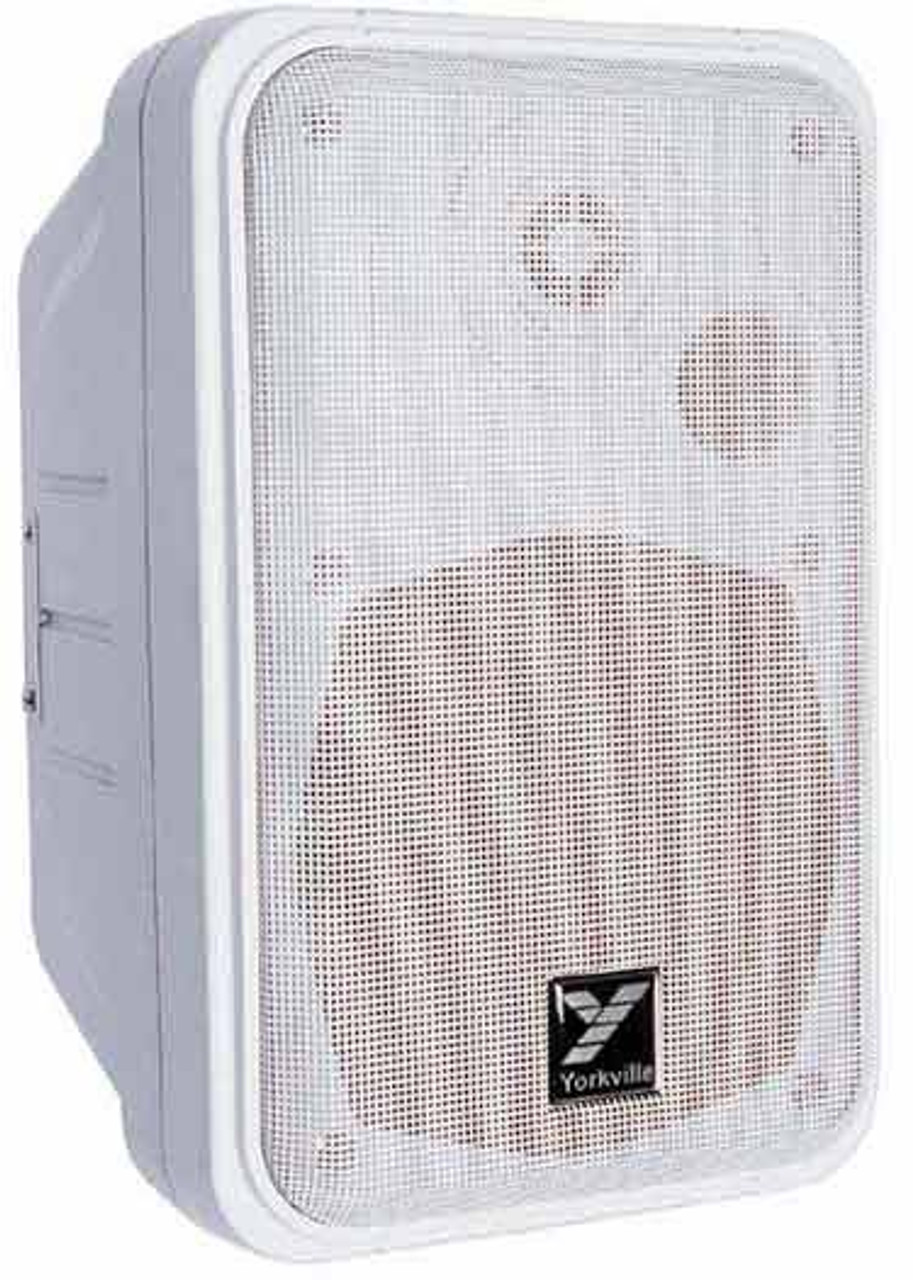

The Yorkville C120W Mini Loudspeaker is a high-end water resistant passive speaker featuring specially treated drivers and a sculpted ABS white plastic enclosure. This compact speaker is ideally suited for commercial installations, home theatre, home stereo, mobile applications, reference monitor, personal stage monitor and can even be used outdoors.
The Yorkville C120W Mini Loudspeaker (White) is a bass reflex enclosure with a tuned port and a 5" woofer, which provides improved bass performance over conventional 5" woofer enclosures. Removing the press-fit grille gives access to the eyeball tweeter, which can be swiveled to suit various listening positions. The Yorkville C120W will handle 100 Watts of continuous music and is accurate from 75 Hz to over 19 kHz.

The Yorkville C120W is designed to allow a multitude of mounting options including a 'press-fit' microphone stand mount, integral key hole screw-slots or the provided metal U-bracket which allows it to be angled up, down or sideways depending on the mounting orientation. For maximum convenience in live or mobile applications, the back plate features push terminals and dual 1/4" inputs.

Also available is the C120/70. The integrated 70V 'matching transformer' allows multiple Yorkville C120/70's to be connected together without danger of overloading the power amplifier due to impedance drop. The user has a choice of three sensitivity settings (10W, 20W, 30W or bypass) selected via a rotary switch located on the rear panel of the speaker, allowing convenient adjustment of the relative volumes of multiple interconnected cabinets.

The Yorkville C120 is available in both black (C120) and white (C120W) finishes, the perforated metal grille and can be painted to match its surroundings.

Yorkville C120W Mini Loudspeaker Applications
Commercial Installations
Home Theatre
Home Stereo
Mobile Applications
Reference Monitor
Personal Stage Monitor
Yorkville C120W Mini Loudspeaker Features
5-inch Woofer / Aimable Swivel 1-inch Mylar Tweeter
¼-inch and Push Terminal Inputs
ABS Plastic Cabinet and Metal Grille
Mounting U-Bracket Allows it to Be Angled Up
Available in Black (C120) Finishes
Also available in 70v Version (C120W/70)
Yorkville C120W Mini Loudspeaker Specifications
System Type: 2-Way
Active or Passive: Passive
Program Power (Watts): 100
Nominal Impedance (Ohms): 8
Sensitivity (dB @1Watt/1m): 94
Max SPL (dB): 104
Frequency Response (Hz +/- 3dB): 75 - 19,000
Driver Configuration: Tweeter, 5 inch
HF Driver(s): Aimable Mylar Tweeter
HF Dispersion (°H x °V): 90 x 90
LF Driver(s): 5 inch
Inputs: 3
Inputs - 1/4" Jacks: 2
Inputs - Screw Terminal: 1 (Push Terminal)
Enclosure Materials: Injection Molded, ABS Plastic
Port(s): 1
Grille: Perforated Steel
Covering / Finish: Low Reflective White (C120W)
Dimensions (D x W x H xbackW, Inches): 6.5 x 6.75 x 10.25 x 6
Dimensions (D x W x H xbackW, cm): 16.5 x 17 x 26 x 16
Weight: (lbs/kg) 4.7 / 2.1
Yorkville C120W Mini Loudspeaker Includes
1 x Yorkville C120W Mini Loudspeaker (White)
1 x U-Bracket
1 x Spec Sheet
2 Year Warranty
