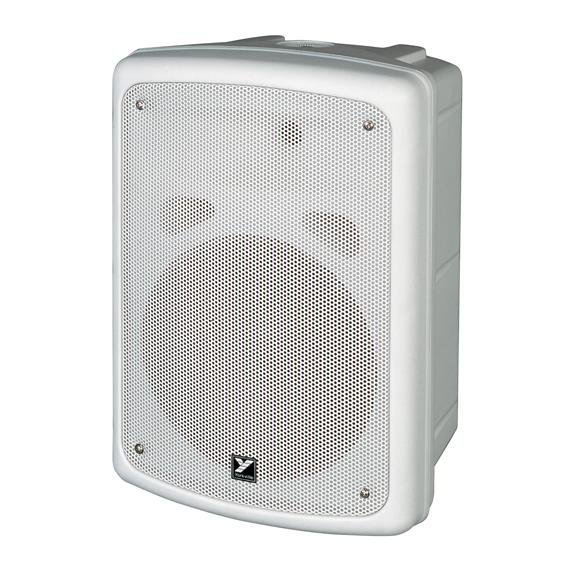

Yorkville C130W/70 - C130 with 70 volt taps @ 10w/20w/30w/bypass(8R) selector - White

Enlarge ↗

Brand	Yorkville ›
Price:	$ 119.99

DESCRIPTION

Overview
The trapezoidal shape makes the C130 ideal for install or array mounting in tight locations. Weather resistant plastic enclosure and Mylar components mean the C130 can be used indoors or outdoors, ideal for foyers, patio systems for music and paging systems. Shipped with a rugged proprietary U-bracket for wall or ceiling mounting, they may be the most versatile and cost-effective solution for small installations, or as a repeater or fill cabinet in larger venues.

The C130 is available either in an 8-ohm version, or as a 70-volt multi tapped transformer version designed for fixed installation systems (C130/70). The integrated 70-volt 'matching transformer' allows multiple C130/70's to be connected together without danger of overloading the power amplifier due to impedance drop. The user has a choice of three sensitivity settings (10W, 20W, 30W or bypass). Black or white versions are available.

Features
100 watt / 8-ohm Two-Way Installation Loudspeaker
6.5-inch Woofer / 1-inch Mylar Dome Tweeter
¼-inch and Binding Post Inputs
Weather Resistant Plastic Cabinet
Metal Grille
Mounting U-Bracket Included

Specifications
System Type Two Way
Active or Passive Passive
Program Power (Watts) 100
Nominal Impedance (Ohms) 8 (70 volt optional - C130/70)
Sensitivity (dB @1Watt/1m) 96
Max SPL (dB) 116
Frequency Response (Hz +/- 3dB) 75 to 20000
Driver Configuration 6 1/2 inch / 1 inch dome tweeter
HF Driver(s) 1 inch Mylar Dome Tweeter
HF Dispersion (°H x °V) 90 x 90
LF Driver(s) 6 1/2 inch
Inputs - 1/4" Jacks Yes - Two
Inputs - Binding Post Yes
Other Controls / Features Available in 70-Volt version C130/70
Included Hardware Mounting Bracket
Optional Covering / Finishes Available Black or White (C130W)
Dimensions (DWH xbackW, inches) 11.5 x 8.5 x 7.5 x 3.5
Dimensions (DWH xbackW, cm) 29 x 22 x 19 x 9
Weight (lbs/kg) 6.6 / 3.2
