Yorkville C15B - 500 watts - 15" spkr & 1 inch driver on 80°x50° rotatable horn, flying hdwr, plus Omnimount compatible rigging points. Black Finish - 8 ohms

Enlarge ↗

❮❯

sites/dagexpress/products/Yorkville/thumbnails_60_60/Yorkville-C15B.jpg

sites/dagexpress/products/Yorkville/thumbnails_60_60/Yorkville-C15B-1.jpg

Brand	Yorkville ›
Price:	$ 949.00

DESCRIPTION

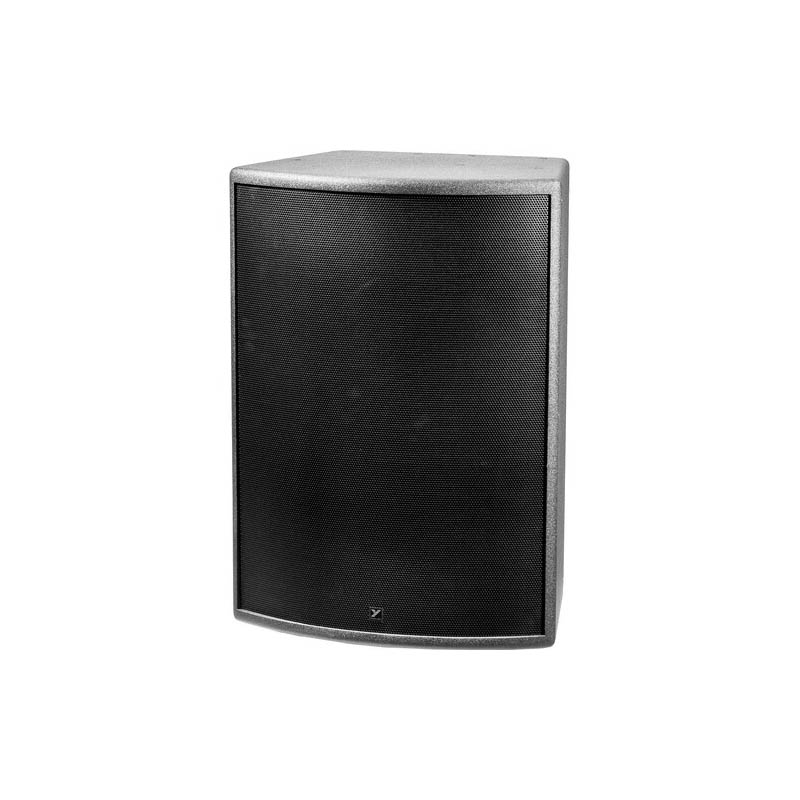

Yorkville C15B
500 watts - 15" spkr & 1” driver on 80°x50° rotatable horn, flying hdwr, plus Omnimount compatible rigging points. Black Finish - 8 ohms

500w, 15-inch / 1-inch

The new Canadian made Coliseum C15B installation loudspeaker uses a solid birch plywood cabinet construction, all metal grill and rotatable ABS 80° x 50° horn. Ample integrated flypoints for firm attachment to custom designed Yorkville flyware ensure cost effective rigging in single cabinet or arrays.

Overview

Additional Omnimount compatible rigging points make the 500 watt C15 an ideal solution for larger commercial installation or House of Worship PA applications.

The optional FH2B hardware kit has been specifically designed to expand the C12B and C15B's already advanced mounting capabilities. A single FH2B installation kit is the ideal rigging solution for installing either Yorkville Coliseum Series C12B or C15WB speakers in single point hangs for solo cabinets or two-box arrays.

The staggered hole pattern in the FH2W allows for a multitude of tilt angles simply by moving the shackle towards front or the rear of the bracket. If further down-tilt is required, simply attach an eyebolt in the pullback position of the cabinet in addition to the hang point. When using C12B or C15B cabinets in two cabinet arrays, the FH2B splays the loudspeakers at the ideal angles to minimize interference and lobing.

Features

500 Watts / 8 ohms
15-inch Woofer
1-inch Horn Driver with 3-inch Voicecoil
80° x 50° Rotatable Horn
Optional Versatile FH2W Flying Hardware Available
Also Compatible with 120.0WA Omnimount Bracket
Solid Birch Cabinet Construction
Extensive Internal Metal Bracing for Added Security and Long Term Reliability
All Metal Grille
Speakon™ & Terminal Strip Input
Made in Canada
Specs

System Type: Two Way
Active or Passive: Passive
Program Power (Watts): 500
Biampable: No
Nominal Impedance (Ohms): 8
Sensitivity (dB @1Watt/1m): 99
Max SPL (dB): 126
Frequency Response (Hz +/- 3dB): 50 - 20k
Crossover Frequency (Hz): 1100
Driver Configuration: 15 inch / 1 inch
HF Driver(s): 1 inch
HF Horn: Rotatable ABS Waveguide
HF Dispersion (°H x °V)80 x 50 Rotatable
HF Protection: CTL
Inputs - Speakon 4-pin: 2
Inputs - Screw Terminal: 1 Pair
Flying Hardware: 1/4 inch
Optional Flying Hardware: FH2B Flyware is available
Pole Mount Adapter (1 3/8"-3.5cm): No
Enclosure Materials: 15mm (5/8inch) 11-ply Russian birch
Grille: Perforated Metal
Covering / Finish: Two Part Black Epoxy
Other Details: Has rear mounted rigging points for Omnimount 120.0WA bracket
Dimensions (DWH xbackW, inches): 15.4 x 20.9 x 28.7 x 15.7
Dimensions (DWH xbackW, cm): 39.1 x 53.1 x 72.9 x 39.8
Weight (lbs/kg): 75 / 34.2
