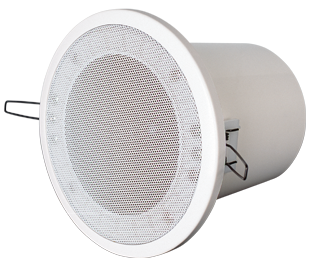

Yorkville C160W - 4 inch Pot light ceiling speaker - 50/70/100 volt wiring harness, 2.5w/5w/10w taps, Sealed plastic enclosure, clip mounting - white

Enlarge ↗

Brand	Yorkville ›
Price:	$ 25.00

DESCRIPTION

Features
4-inch Flush Mount 'Pot Light' Ceiling Speaker
70-volt Operation
Power Taps at 2.5, 5 and 10 Watts
Closed Back Design
Mounting Hardware Included

Overview
The C160W has built in 70-volt transformer and taps, and can operate at 2.5 watts, 5 or 10 watts. It also features an efficiency of 92dB (1 W/m) and a frequency response of 100 - 16kHz.

Rugged ABS plastic construction in a 'pot light' format with an all metal grille make the C160W ideal for any drywall or tile drop ceiling mount application. The C160W can be easily installed and driven by any 70-volt amplification system, including the Coliseum CA1 or CA1T.

Specifications
System Type Pot Light Speaker
Active or Passive Passive
Power Rating (Watts) 10
Nominal Impedance (Ohms) 8 / 70 Volt Transformer
Sensitivity (dB @1Watt/1m) 91
Frequency Response (Hz +/- 3dB) 150 - 20k
Driver Configuration Single 4 Inch
HF Dispersion (°H x °V) 90 x 90
Inputs - Screw Terminal Solder lugs
Enclosure Materials ABS Plastic
Grille Metal
Dimensions (DWH xbackW, inches) 5.5 x 4.8
Dimensions (DWH xbackW, cm) 14.2 x 12
Weight (lbs/kg) 3 / 1.4
Specifications subject to change without notice
