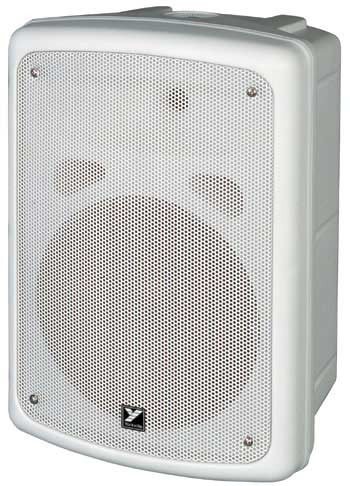

Yorkville C170 - Plastic Speaker Enclosure, 100 watt, 8 inch Speaker with Tweeter - White


The C170 is based on the already popular C110, C120 and C130, which have a complete list of features that make them an extremely good value for fixed installations. The C170, is a compact 100-watt loudspeaker enclosure made from ABS plastic with an 8-inch driver and 1 inch Mylar tweeter, and features both dual binding posts and 1/4" connectors for maximum versatility.

The trapezoidal shape makes the C170 ideal for install or array mounting in tight locations. Shipped with a rugged proprietary U-bracket for wall or ceiling mounting, they are a very versatile and cost-effective solution where superior sonic quality is required for small installations, or as a repeater or fill cabinet in larger venues. An optional polemount adapter (C170ADAPT) is also available for applications where placing the C170 on a speaker stand is required. The C170 is also available in white as the C170W, for situations where a more discreet speaker is required.

The C170 is available in both black (C170) and white (C170W) finishes.

High Performance Two-Way Installation Loudspeaker
8-inch Woofer / 1-inch Mylar Dome Tweeter
70-volt as well as 8-ohm Operation
Power Taps at 4, 8, 16, 32, or 100 watts
100 watts (8-ohm mode)
1/4-inch and Binding Post Inputs
Heavy Duty ABS Plastic Cabinet and Metal Grille
Mounting U-Bracket Included
Available in White (C170W) or Black (C170) Finishes
Optional Stand-Mount Adaptor (C170ADAPT) is Available

System Type 2-Way
Active or Passive Passive
Program Power (Watts) 100
Biampable No
Nominal Impedance (Ohms) 8
Sensitivity (dB @1Watt/1m) 93
Max SPL (dB) 113
Frequency Response (Hz +/- 3dB) 60 - 20000
Driver Configuration 8 inch / 1 inch dome tweeter
HF Driver(s) 1 inch Mylar Dome Tweeter
LF Driver(s) 8 inch
LF Program Power(Watts) 100
LF Impedance (Ohms) 8
Inputs - 1/4" Jacks 2
Inputs - Binding Post Yes
Feet Yes
Included Hardware Mounting Bracket
Pole Mount Adapter (1 3/8"-3.5cm) Optional Adapter (C170ADAPT)
Enclosure Materials ABS Plastic
Grille Perforated Metal
Optional Covering / Finishes Available Black or White (C170W)
Dimensions (DWH xbackW, inches) 11.25 x 9.75 x 16.25 x 9.5
Dimensions (DWH xbackW, cm) 28.5 x 25 x 42 x 24
Weight (lbs/kg) 14.5 / 6.6
