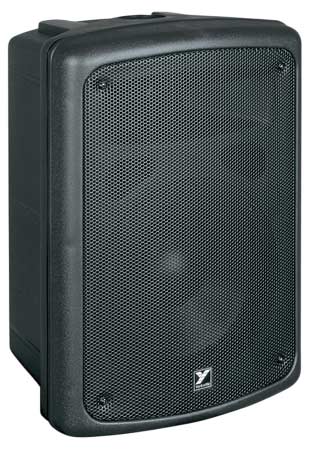

Yorkville C170P - 100 Watt Powered - 8 Inch Speaker with Tweeter


The trapezoidal shape makes the C170P ideal for install or array mounting in tight locations. Shipped with a rugged proprietary U-bracket for wall or ceiling mounting, they are a very versatile and cost-effective solution where superior sonic quality is required for small installations, or as a repeater or fill cabinet in larger venues. An optional polemount adapter (C170ADAPT) is also available for applications where placing the C170P on a speaker stand is required.

Exclusive features to the C170P include a 1/4" input and auxiliary out, controls for Gain, Volume and Tone, with a switchable mic/line input sensitivity, and a power switch.

High Performance Active Two-Way Loudspeaker
8-inch Woofer / 1-inch Mylar Dome Tweeter
100 Watt Integrated Amplifier
1/4-inch TRS Balanced Inputs
Accepts Microphone or Line Level Inputs
Gain, Volume and Tone Controls
Heavy Duty ABS Plastic Cabinet and Metal Grille
Mounting U-Bracket Included
Optional Stand-Mount Adaptor (C170ADAPT) is Available

System Type 2-Way
Active or Passive Active
Program Power (Watts) 100
Max SPL (dB) 113
Frequency Response (Hz +/- 3dB) 60 - 20,000
Driver Configuration 8 inch / 1 inch dome tweeter
HF Driver(s) 1 inch Mylar Dome Tweeter
LF Driver(s) 8 inch
Total Power (Watts) 100
Cooling Scheme Heat Sink
Power Cable Built-in
Power Switch Yes
Inputs 2 x 1/4inch TRS (Input/Aux Out)
Inputs - 1/4" Jacks 1 TRS
Mixer Controls Mic/Line sensitivity switch Gain, Tone, Volume controls
Feet Yes
Included Hardware Mounting Bracket
Pole Mount Adapter (1 3/8"-3.5cm) Optional Adapter (C170ADAPT)
Enclosure Materials ABS Plastic
Grille Perforated Metal
Dimensions (DWH xbackW, inches) 11.25 x 9.75 x 16.25 x 9.5
Dimensions (DWH xbackW, cm) 28.5 x 25 x 42 x 24
Weight (lbs/kg) 18.7 / 8.5
