Art CLEANBOXPRO - Two Channel Pro/Consumer Level Converter

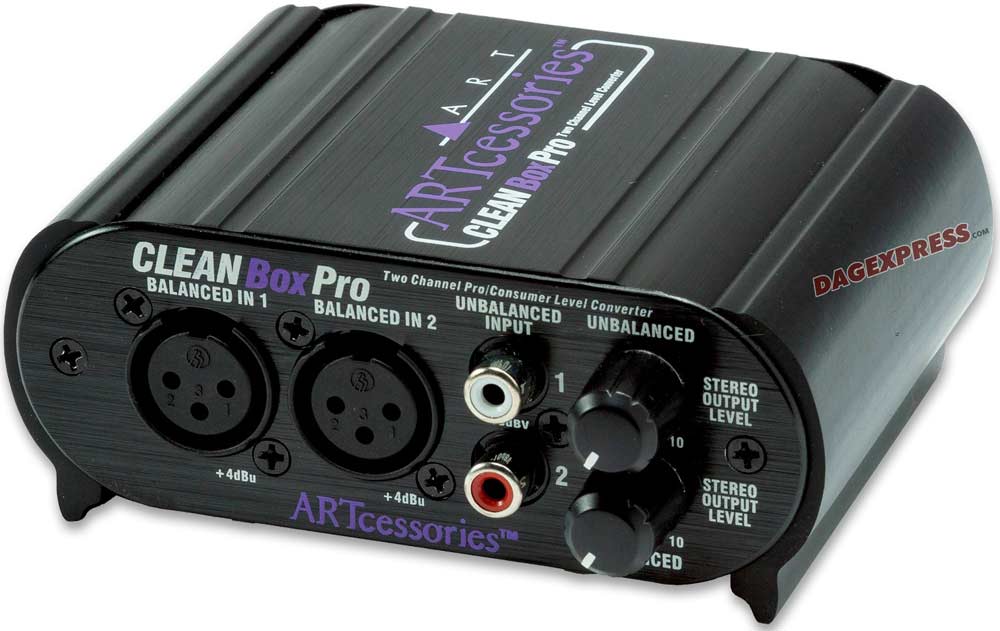

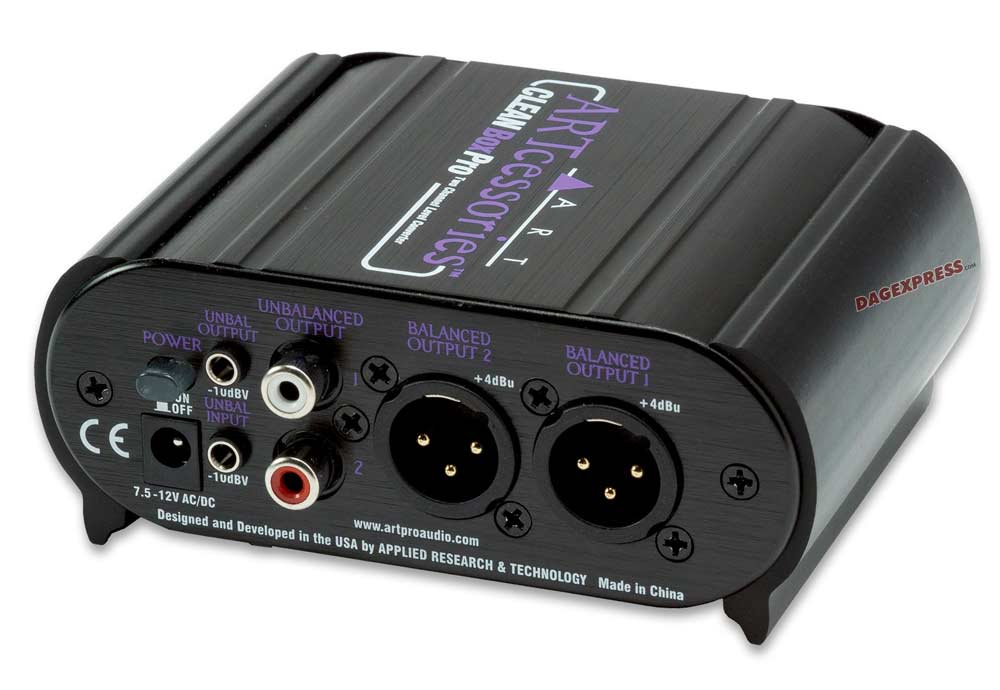

CLEANBOXPRO - Two Channel Pro/Consumer Level Converter
CLEANBOXPRO - Two Channel Pro/Consumer Level Converter
Brand:Art ›
 ARTcessories - Audio Solution Boxes ›
Sku:CLEANBOXPRO
Price:$ 69.00



Two Channel Pro/Consumer Level Converter. XLR, RCA and 1/8 inch I/O - 12V AC adaptor Included

The CLEANBoxPro provides two channels of unbalanced to balanced level conversion and two channels of balanced to unbalanced level conversion in a rugged, compact, and portable unit. Balanced lines offer increased immunity to external electrical noise, such as hum. Since a balanced system minimizes induced noise, it is the preferred method of connecting audio gear, especially when long lengths of cable are used. One section of the CLEANBoxPro converts two channels of consumer-level unbalanced input signals into two channels of pro line-level balanced output signals. It has two RCA jack inputs and a stereo mini-phone jack input connected in parallel. The balanced output feeds two XLR male jacks.
The other section of the CLEANBoxPro converts two channels of line-level balanced input signals into two channels of consumer unbalanced output signals. It has two XLR female input jacks. The unbalanced output feeds two RCA jacks and a stereo mini-phone jack connected in parallel. Each section has stereo level controls to optimize signal levels. An LED indicator lights when power is applied.

CLEANBoxPro Applications:

* Home or professional recording studios
* Live sound, PA, and permanent installs
* DJ, AV, and consumer HiFi
* Podcasting and broadcasting
* The CLEANBoxPro can be used with: mixers, audio processors, laptop computers, computer sound cards, CD/DVD players, video gaming machines, MP3 player/recorders, powered monitors and digital audio workstations


Key features

* XLR connectors for balanced inputs and outputs RCA phono jacks and stereo 1/8 inch mini-phone jacks for unbalanced inputs and outputs
* Stereo balanced output level control
* Rugged extruded aluminum case Lighted On/Off switch
* Comes with external power supply for operation with AC mains Low noise, low distortion circuit
* RCA phono jacks and stereo 1/8 inch mini-phone jacks for unbalanced inputs and outputs
* Lighted On/Off switch


Specifications

* Frequency Response - 20Hz to 20kHz, +/-1 dB
* Total Harmonic Distortion - <0.1% at 1 kHz
* Signal to Noise Ratio. - Balanced – 20k Ohm
Unbalanced – 100 Ohm
* Maximum Gain - Balanced to Unbalanced: -6 dB
Unbalanced to Balanced: +21 dB
* Maximum Input Level - +21 dBu
* Maximum Output Level - Balanced: +21 dBu
Unbalanced: +15 dBu
* Output Impedance - Balanced – 100 Ohm
Unbalanced – 300 Ohm
* Power Requirements - 7.5-12 V AC/DC, <150 mA
* Dimensions - 1.85 inches (H) x 4.6 inches (W) x 4.3 inches (D)
* Weight - 1.10 lbs
