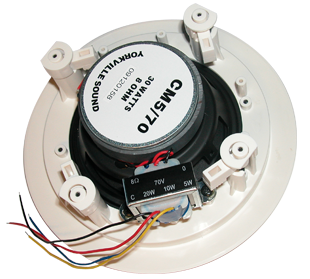

Yorkville CM5/70 - Ceiling Mount 5 inch speaker - 25 watts - Round - with metal grill & mounting hardware - integrated 70 Volt transformer with 5w/10w/20w and bypass (8R) taps

CM5/70 - Ceiling Mount 5 inch speaker - 25 watts - Round - with metal grill & mounting hardware - integrated 70 Volt transformer with 5w/10w/20w and bypass (8R) taps

Enlarge ↗

❮❯

sites/dagexpress/products/Yorkville/thumbnails_60_60/Yorkville-CM5_70.jpg

Brand	Yorkville ›
Price:	$ 30.00

DESCRIPTION

Features
5-inch High Performance Flush Mount Ceiling Speaker
Selectable 70-volt or 8-ohm Operation
Power Taps at 5, 10 and 20 Watts
30 watts (8-ohm mode)
Open Back Design
Mounting Hardware Included

Overview
Built in 70-volt taps at 5, 10 or 20 watts as well as optional 8-ohm (30 watt) operation means that virtually any amplification or paging system, including the Coliseum CA1 or CA1T can drive the CM5/70.Specifications
System Type Ceiling Speaker
Active or Passive Passive
Power Rating (Watts) 30
Nominal Impedance (Ohms) 8 / 70-volt Transformer
Sensitivity (dB @1Watt/1m) 91
Frequency Response (Hz +/- 3dB) 150 - 20k
Driver Configuration Single 5 inch
HF Dispersion (°H x °V) 90 x 90
Inputs - Screw Terminal Solder Lugs
Enclosure Materials ABS Plastic
Grille Perforated Metal
Wiring 5W (Blue) 10W (Yellow) 20W (Red) for 70V Operation
Dimensions (DWH xbackW, inches) 8 x 3
Dimensions (DWH xbackW, cm) 20 x 7.6
Weight (lbs/kg) 3.0 / 1.4
Specifications subject to change without notice
