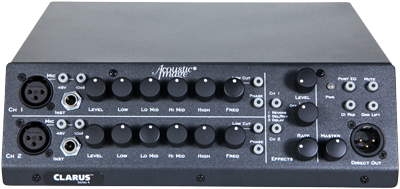

Acoustic Image Clarus 2 Channel 600W Integrated Amplifier with Effects
Enlarge ↗
×
❮
❯
Brand
Acoustic Image ›
Price:
$ 979.00
DESCRIPTION
Documentation ↗
CLARUS™
With 600 watts of power and two channels, instrumental and mic inputs, plus effects, Clarus is our most full-featured integrated amp.
Features
Extended frequency range, high fidelity sound
Light weight (<4 lbs.), small size (10.2 x 8.2 x 3.5)
Unique, slanted front chassis
Mounts in cabinet using Cabrio Docking System
Separate XLR and 1/4 inch inputs in each channel can be used simultaneously
48V phantom power and 10 dB gain select for mic input
Input level control per channel
Four band EQ per channel
Selectable phase reverse and sweepable low cut filter per channel (phase reverse can be converted to low pass speaker emulation filter with internal jumper option)
Effects loop per channel
Selectable reverb and delay effects with level and rate controls and pseudo stereo output
Direct out with selectable 10 dB pad, pre/post switch and ground lift-Headphone output
Switchable limiter
Mute switch
Mono or stereo output from the preamp section
Selectable internal jumper options for gain and stereo operation
High fidelity, low noise operation: 110 dB SNR at direct out
Automatic voltage switching for universal AC mains operation
650 Watt output at 4 ohms (music power)
Dual speaker outputs with speakon connectors
Comes with padded case
System
Frequency Response: 20 Hz-20 kHz (±0.5 dB)
AC Power: 100V to 240V, 50/60 Hz, automatically switched
Size: 10" x 8" x 3.5"
Weight: 4 lbs
Preamp
Frequency Response: 20 Hz - 20 kHz (±0.5 dB)
Signal to Noise Ratio: >110 dB at direct out
Controls and Inputs
Mic Input: 600 ohm balanced, XLR connector, switchable 10 dB gain
Phantom Power: 48 volts, on/off switch w/LED indicator
Instrument Input: 1 M Ohm impedance, 1/4 inch jack
Direct Out: +4 dB, balanced, XLR, ground lift, pre/post EQ selector, switchable 10 dB pad
Effects Loop: Parallel type
Low Control: Shelving type, ±12 dB at 50 Hz
Low Mid Control: ±12 dB at 250 Hz
Hi Mid Control: ±12 dB at 1200 Hz
Treble Control: Shelving type, ±12 dB at 8 kHz
Low Cut Filter: -12 dB/octave sweepable from 30 to 150 Hz
Phase Reverse: Switchable 180 degree phase reverse
Speaker Emulator: (if selected) -12 dB/octave at 4 kHz
Effects
Type: 24 bit digital with 3 programs
Programs
- Reverb with variable decay time,
- Delay/Reverb with variable delay time
- Delay with variable delay time
- All have variable wet/dry mix and “pseudo stereo” capability
Power Amp
Topology: Class D (PWM)
Switching Frequency: 500 kHz
Output Power 8 Ohm: 300W rms continuous, 350W rms music (40% duty cycle), 500W peak transient
Output Power 4 Ohm: 500W rms continuous, 650W rms music (40% duty cycle), 1000W peak transient
Supplied Accessories
Gig bag with shoulder strap
