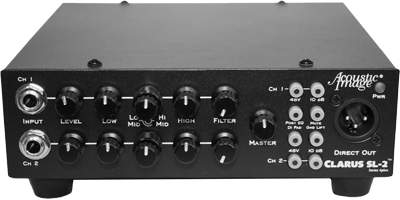

Acoustic Image Clarus SL-2 S4plus - Two Channel 600W Integrated Amplifier

Enlarge ↗

❮❯

sites/dagexpress/products/Acoustic_Image/thumbnails_60_60/Acoustic-Image-608-IA-Plus.jpg

sites/dagexpress/products/Acoustic_Image/thumbnails_60_60/Acoustic-Image-608-IA-Plus-1.jpg

sites/dagexpress/products/Acoustic_Image/thumbnails_60_60/Acoustic-Image-608-IA-Plus-2.jpg

Brand	Acoustic Image ›
Price:	$ 749.00

DESCRIPTION

Documentation ↗

Features
Extended frequency range, high fidelity sound
Light weight (<2.5 lbs.), small size (2.1x7.2x7.4 inches)
Two channels each with tone controls and filter
Tip Ring Sleeve ¼ inch input per channel, XLR adaptor included
Internal circuit automatically senses mic or pickup input
Channel and Master level controls
Four band EQ per channel
Sweepable low cut filter per channel
Direct out with selectable 10 dB pad, pre/post switch and ground lift
Mute switch
Selectable internal jumper options for gain and limiter
High fidelity, low noise operation: 110 dB SNR at direct out
Automatic voltage switching for universal AC mains operation
650 Watt output at 4 ohms (music power)
Dual speaker outputs with speakon connectors
Comes with padded case

Technical Specs
System
Frequency Response: 30 Hz-20 kHz (±0.5 dB)
Signal to Noise Ratio: >110 dB at direct out
AC Power: 100V to 240V, 50/60 Hz, automatically switched
Size: 2.1" x 7.2" x 7.4"
Weight: 2 lbs. 10 oz.

Preamp
Inputs: 1/4 inch Tip Ring Sleeve with automatic sensing for mic or pickup input
Mic input: 600 ohm balanced, switchable 48 V phantom power, switchable 10 dB gain
Instrument input: 1 Mohm
Direct Out: +4 dB, balanced, XLR connector, ground lift, pre/post EQ selector, 10 dB pad
Low Control: Shelving type, ±12 dB at 30 Hz
Low Mid Control: ±12 dB at 250 Hz
High Mid Control: ±12 dB at 1200 Hz
High Control: Shelving type, ±15 dB at 10 kHz

Power Amp
Topology: Class D (PWM)
Switching Frequency: 500 kHz
Output Power 8 Ohm: 300W rms continuous, 350W rms music (40% duty cycle), 500W peak transient
Output Power 4 Ohm: 500W rms continuous, 650W rms music (40% duty cycle), 1000W peak transient
External Speaker Out: Speakon type (pole 1), 2ohm min load

Supplied Accessories
Gig bag, XLR to 1/4 inch input adapter
