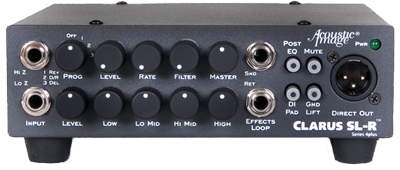

Acoustic Image Clarus SL-R S4plus - One Channel 600W Integrated Amplifier with Effects

Enlarge ↗

❮❯

sites/dagexpress/products/Acoustic_Image/thumbnails_60_60/Acoustic-Image-607-IA-Plus.jpg

sites/dagexpress/products/Acoustic_Image/thumbnails_60_60/Acoustic-Image-607-IA-Plus-1.jpg

sites/dagexpress/products/Acoustic_Image/thumbnails_60_60/Acoustic-Image-607-IA-Plus-2.jpg

Brand	Acoustic Image ›
Price:	$ 699.00

DESCRIPTION

Documentation ↗

Features
Extended frequency range, high fidelity sound
Light weight (<2.5 lbs.), small size (2.1x7.2x7.4 inches)
LoZ and HiZ 1/4 inch inputs for piezo pickup optimization
Input and Master level controls
Four band EQ I
Sweepable low cut filter
Effects loop
Selectable reverb and delay effects with level and rate controls
Direct out with selectable 10 dB pad, pre/post switch and ground lift
Mute switch
Selectable internal jumper options for gain and limiter
High fidelity, low noise operation: 110 dB SNR at direct out
Automatic voltage switching for universal AC mains operation
650 Watt output at 4 ohms (music power)
Dual speaker outputs with speakon connectors
Comes with padded case

Technical Specs

System
Frequency Response: 30 Hz-20 kHz (±0.5 dB)
Signal to Noise Ratio: >110 dB at direct out
AC Power: 100V to 240V, 50/60 Hz, automatically switched
Size: 2.1" x 7.2" x 7.4"
Weight: 2 lbs. 10 oz.

Preamp
Instrument Input: 1 Mohm or 10 Mohm, 1/4-nch jack
Direct Out: +4 dB, balanced, XLR connector, ground lift, pre/post EQ selector, 10 dB pad
Effects Loop: Parallel type
Low Control: Shelving type, ±12 dB at 30 Hz
Low Mid Control: ±12 dB at 250 Hz
High Mid Control: ±12 dB at 1200 Hz
High Control: Shelving type, ±15 dB at 10 kHz
Low Cut Filter: -12 dB/octave sweepable from 30 to 180 Hz

Effects
Type: 24 bit digital with 3 programs

Programs
Reverb with variable decay time,
Delay/Reverb with variable delay time
Delay with variable decay time
All have variable wet/dry mix

Power Amp
Topology: Class D (PWM)
Switching Frequency: 500 kHz
Output Power 8 Ohm: 300W rms continuous, 350W rms music (40% duty cycle), 500W peak transient
Output Power 4 Ohm: 500W rms continuous, 650W rms music (40% duty cycle), 1000W peak transient
External Speaker Out: Speakon type (pole 1), 2ohm min load

Supplied Accessories
Gig bag
