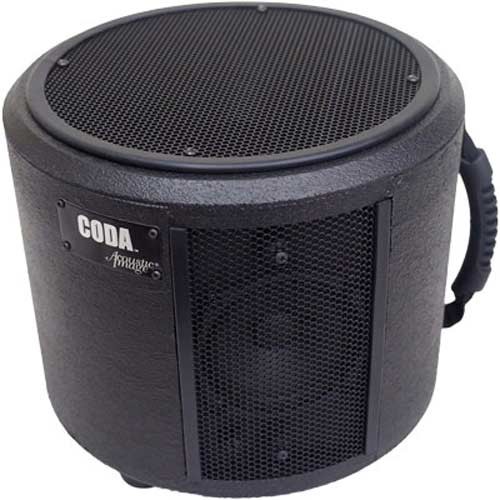

Acoustic Image Coda Speaker Cabinet - 1x10 and 1x5 speaker system for acoustic and electric instruments

Enlarge ↗
BrandAcoustic Image ›
Price:$ 499.00

The Coda is a compact (12in D x 11in H), lightweight (13 lbs.) 1x10 plus 1x5 speaker system for acoustic and electric instruments. The system is unique, with the woofer mounted in a upfiring configuration and the midrange firing forward. The result is a highly portable, yet great sounding speaker system.

The Coda is an evolution of our previous generation downfiring woofer systems. The upfiring woofer gives it a more open sound and the switchable midrange level allows it to sound more forward (like the previous generation Corus) or more neutral (like the previous generation Coda). Its small size belies its outstanding full range sound.

Designed for acoustic and electric instruments including bass, guitar and keyboards
Compact, highly portable, cylindrical shape fits in a drum case for transport
12 inches diameter, 11 inches tall, 13 pounds, small enough to fit in airline overhead storage bin or under seat
One custom 10-inch broad frequency range up-firing driver
One custom 5-inch forward firing midrange driver
Level switch on midrange for guitar or bass application
Two-way, alignment-corrected crossover
Omnidirectional sound fills the bandstand and venue
Optional mounting bracket allow semi-permanent attachment of Acoustic Image amp heads
Frequency response: 40 to 16kHz
Power rating: 300W
Max SPL: 113 dB/m
Impedance: 8 ohms
Input: Neutrik Speakon wired to pole 1

Replaces: Acoustic Image Coda EX S4 Extension Cabinet
