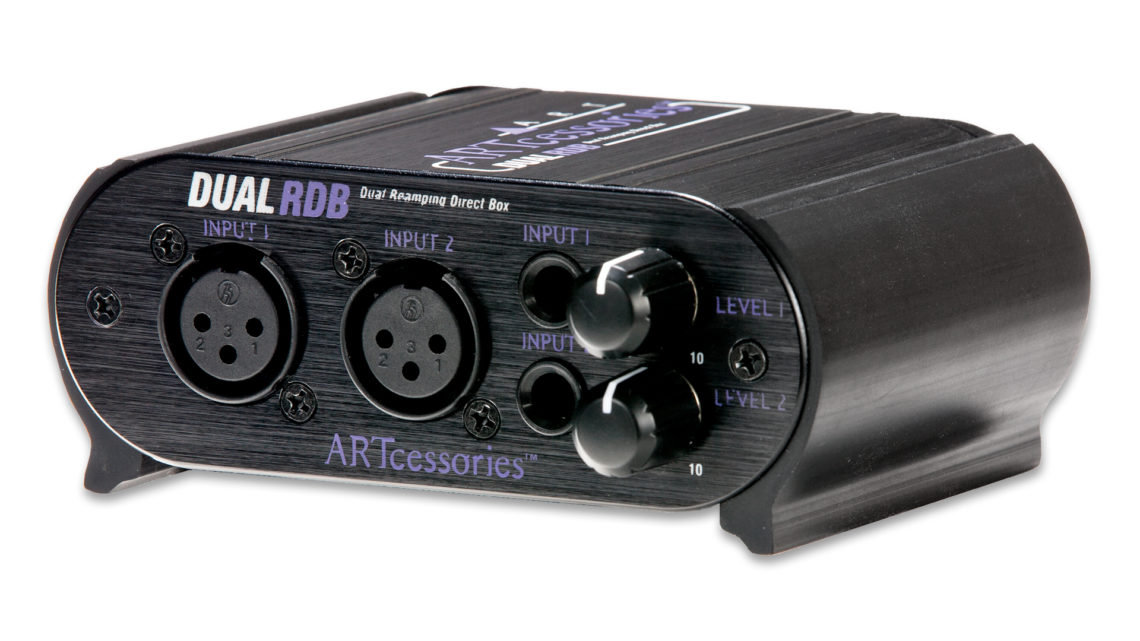

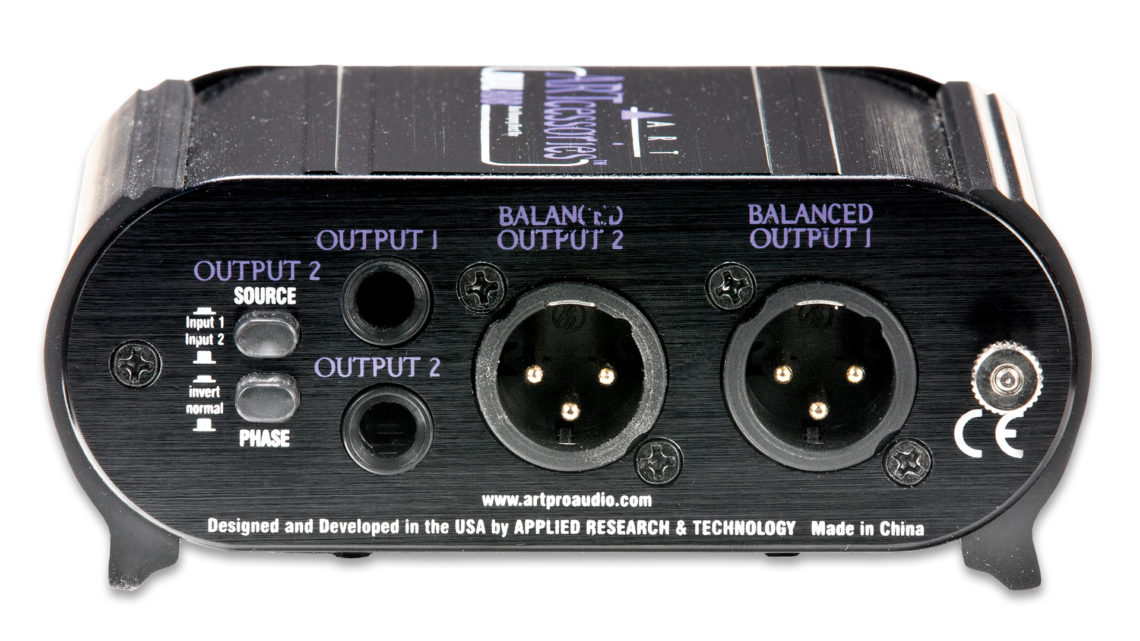

Art DUALRDB - Transformer Isolated XLR and 1/4-inch I/O DI box

Enlarge ↗

❮❯

sites/dagexpress/products/Yorkville/thumbnails_60_60/Art-DUALRDB.jpg

sites/dagexpress/products/Yorkville/thumbnails_60_60/Art-DUALRDB-back.jpg

Brand	Art ›
Price:	$ 95.99

DESCRIPTION

Documentation ↗

The Dual RDB is the ideal interface solution for any application where stereo or dual line level signals from recording interfaces, computers, mixers, iPods, consumer audio or video machines need to be connected to XLR microphone or ¼-inch instrument level inputs.

The unit has two high quality isolation transformers that prevent ground loops when connecting various systems together. The Dual RDB accepts 1/4″ TRS and XLR line level inputs and outputs mic or instrument levels. The Dual RDB’s variable level controls allow volume control to be set at the source rather than in the studio, AV room, audio closet or installation rack. A 20Hz to 20kHz frequency response ensures the Dual RDB will function transparently with any high quality audio source

Applications:
- Re-amping interface for multiple amps
- Stereo/Dual direct box
- Variable Input pad for mic or instrument inputs
- Stereo Audio/Video interface to low level inputs

Key Features
Re-amping interface for multiple amps
Stereo/Dual direct box
Variable Input pad for mic or instrument inputs
Stereo Audio/Video interface to low level input
Dual 1/4-inch TRS and XLR balanced line level inputs
Transformer isolated XLR balanced microphone level outputs
Transformer isolated 1/4-inch TRS balanced instrument level outputs
20Hz to 20kHz Frequency Response
Variable Level Controls with Mute
Channel Two source selectable between Channel One or Channel Two Input
Channel Two output phase switch

Specifications
Frequency Response 20 Hz – 20 kHz, ± 0.5 dB @ +4 dBu
Total Harmonic Distortion .01% @ 1kHz, +18 dBu
<.05% @ 100Hz, +18dBu
Channel Separation > 80 dB (typical)
Input Connections 1/4-inch TRS balanced,
XLR balanced female
Thru Connections 1/4-inch TRS balanced,
XLR balanced female
Insertion Loss -20dB @100k Ohm load,
-25dB @600 Ω load
Dimensions 1.85″H x 4.6″W x 3.9″D (47mm x 117mm x 99mm)
Weight 0.88 lbs (0.40 kg)
