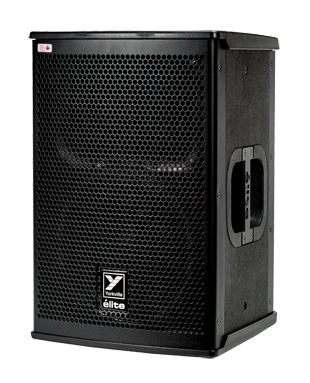

Yorkville EF10 - 1/10" & 2 inch HF driver on 60°x40° horn - 325w PGM, 650w peak - Dedicated FOH Cabinet


Enlarge ↗
×
BrandYorkville ›
Price:$ 759.00



Features
Ten-inch Two-Way Passive speaker
325 Watts (650 Watts Peak / 250 Watts Continuous)
127dB Peak (124dB Continuous) Max SPL
65 - 20k (Hz +/- 3dB)
Made in Canada

Overview
Building on the market success and positive user reaction to the Elite powered cabinets, Yorkville Sound introduces three new elite passive speakers. Now available in 10, 12 and 15-inch configurations, the passive elites' provide the perfect solution for installations and venues with existing power amps.

Specifications
System Type Two Way
Active or Passive Passive
Power Rating (Watts) 325 Watts (650 Watts Peak / 250 Watts Continuous)
Biampable No
Nominal Impedance (Ohms) 8
Sensitivity (dB @1Watt/1m) 99
Max SPL (dB) 127dB Peak (124dB Continuous)
Frequency Response (Hz +/- 3dB) 65 - 20k
Crossover Frequency (Hz) 2900
Driver Configuration 10-inch / 1-inch
HF Driver(s) 1-inch throat (1-inch Titanium Diaphragm)
HF Horn ABS plastic custom Waveguide
HF Dispersion (°H x °V) 100x30
HF Protection 2xSK3 protection bulbs
LF Driver(s) 10-inch (2-inch voicecoil)
Inputs - 1/4" Jacks 2
Inputs - Speakon 4-pin 2
Bar Handles 1
Flypoints 8 x ¼-20 (2 Top, 2 Bottom, 2 Each Side) + 1 Pullback (Back)
Pole Mount Adapter (1 3/8"-3.5cm) Yes
Enclosure Materials 15mm (5/8inch) 11-ply Russian Birch
Grille Perforated Metal
Covering / Finish Black Ultrathane Paint
Dimensions (DWH xbackW, inches) 13 x 13.7 x 20 x 11.1
Dimensions (DWH xbackW, cm) 33 x 34.8 x 50.8 x 28.2
Weight (lbs/kg) 42.5 / 19.4
Specifications subject to change without notice
