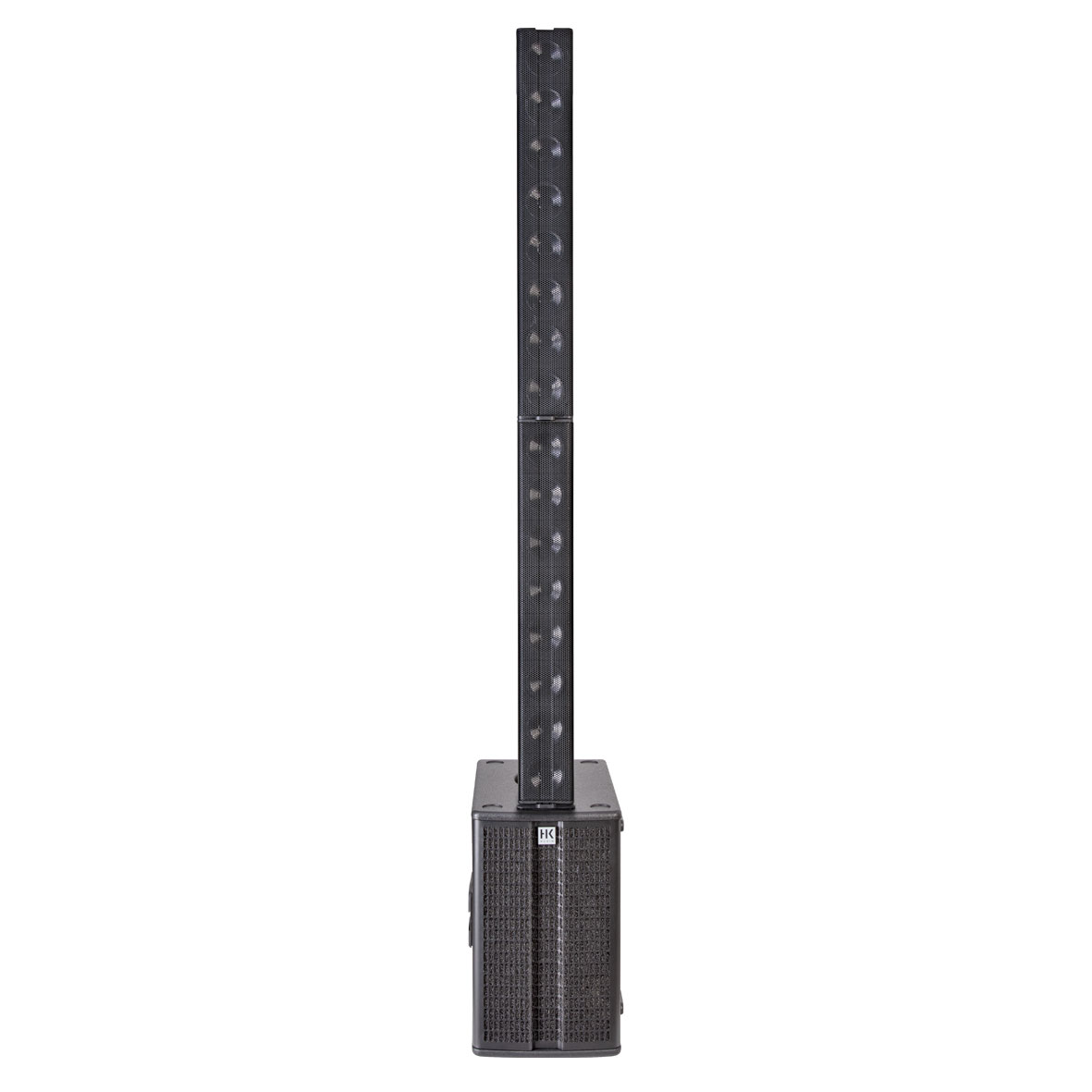

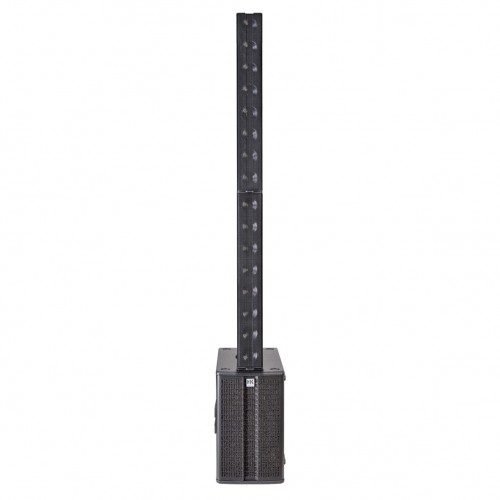

HK Audio EL-LINE - Line Base Element Portable 2400 Watt Active PA System with 1x E110AS and 2x E835
Enlarge ↗
×
Brand
HK Audio ›
Price:
$ 1999.00
DESCRIPTION
Documentation ↗
LINE BASE SINGLE
The Line Base single system is composed of two E 835 mid/high units in a mono column format, and it offers genuine long-throw sound reproduction properties for bigger indoor venues and open air concerts too. If more bass is required, the system can easily be expanded with a passive E 110 SUB subwoofer and/or with the active L Sub 1500 A of the Linear Series. In case of DJ applications or open-air applications, where there is a demand for more low end, the 1200-watt 15″ subwoofer is the first choice. A bass extension via the L 1500 A subwoofer provides the possibility of a straight line, so that you can feel the bass even in the last rows.
Elegant design
Scalable and flexible to expand
Practically cable-free
Lightweight and compact
Maximum output: 2,400 watts
Long-throw properties
5-year HK Audio warranty
Active mono PA system, 2 x E 835 mid/high units, 1 x E 110 SUB AS subwoofer, flexibly extendable for deeper bass with a passive E 110 SUB subwoofer, maximum output 2,400 watts
E-835:
Power-handling nominal (RMS) 300 W
Nominal impedance 8 ohms
Sensitivity 1W/1m 100 dB (half space)
Frequency response -10 dB 140 Hz – 20 kHz, via active system
Speaker 8 x 3,5" broadband
Directivity 70° horizontal
Crossover frequency 140 Hz, 12 dB/oct.
Connections 1 x E-Connect-In
1 x E-Connect-Out 1 x E-Connect-Out
Dimensions (WxHxD) 11 x 74,5 x 12 cm (exkl. E-Connect- sleeves)
Weight 4,5 kg, 9.9 lbs
E-110 Sub AS:
Headline System Subwoofer
Frequency response -10 dB 45 Hz – 150 Hz (measured with active separation)
Power Rating 1200 W
Amplifier Class D
Active protection circuits RMS limiter, subsonic filter; DC, load, & thermal (temp.- controlled fan)
LF Speaker 1x 10" (2" voice coil)
Connections 1 x XLR-Kombi-In, 1 x XLR-Through, 2 x Speakon-Out (1 x Sub + 1 x Mid-High), 2 x E-Connect-Out
Input Sensitivity (selectable) +4 dBu / -10 dBu
Pole mount 2x E-Connect
Dimensions (WxHxD) 30 x 48 x 46 cm
Weight 18,5 kg / 40,8 lb
