Speakers > Subwoofers

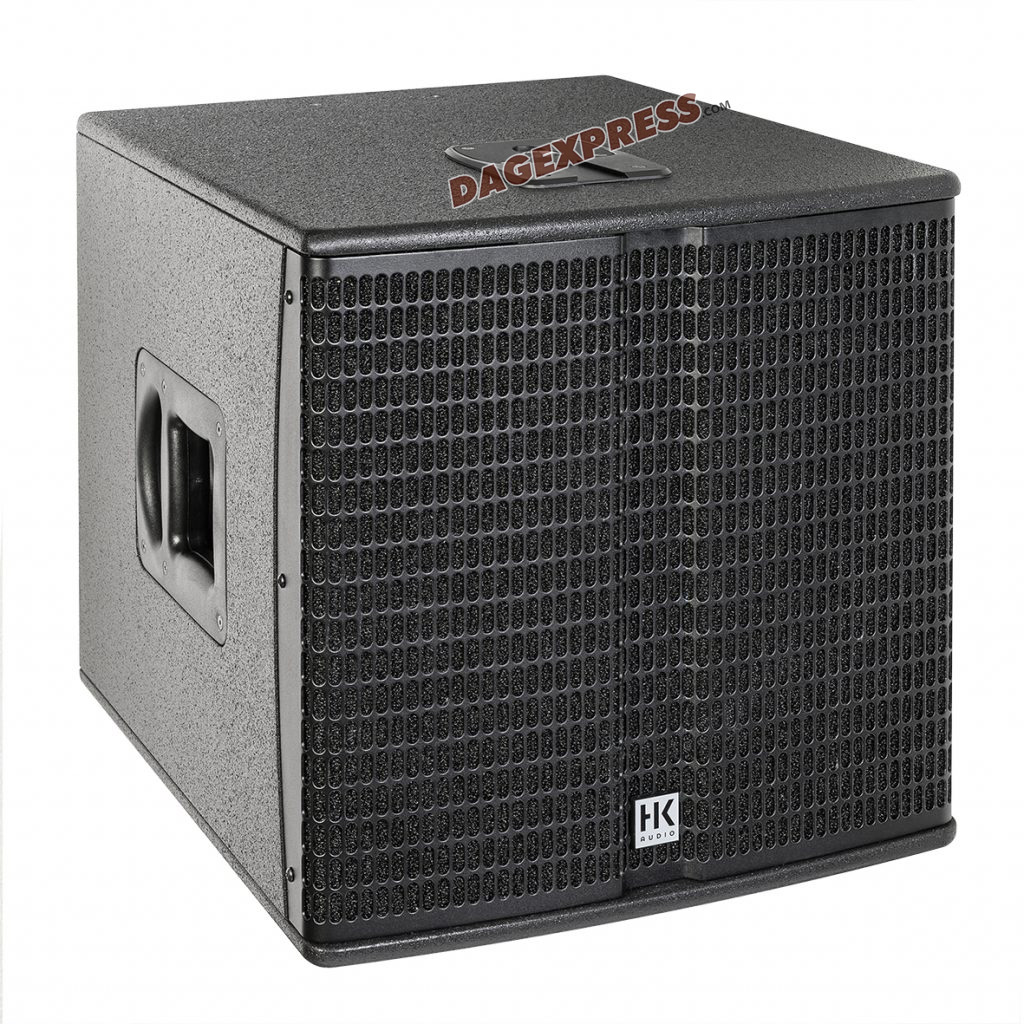

HK Audio ELEMENTS E115 SUB D - 1500-watt Active Subwoofer
HK Audio ›
Compared to the subwoofers already available in the ELEMENTS family, the new ELEMENTS E 115 Sub D subwoofer delivers significantly increased bass performance. In combination with the 1500-watt power amplifier, the 15″ woofer achieves considerably more sound pressure right into the low end. As a system subwoofer, it also offers a 900-watt power amplifier as a powerful drive for up to three E 835 mid/high units.
High-performance 15″ system subwoofer with 2,400 watts total power (1,500 watts for bass and 900 watts for up to three E 835 mid/high units)
Integrated, network controllable DSP with 4 presets and Plug'n'Play Cardioid Out
Full control over all functions, EQ, limiter, delay, presets etc.
HK Audio DSP CONTROL software for full compatibility with LINEAR 7, can be operated together with LINEAR 7 speakers in the same network
Subwoofer can be expanded with the LINEAR SUB 1500 A, also as a Cardioid setup
Perfect expansion for existing ELEMENTS users thanks to compatibility with E 835/435 and the EP 1/2 and EF 45 accessories
Extremely simple handling: even a large Cardioid setup with two 15″ basses and three E835s can be transported in a station wagon and set up by a single person.
5-year manufacturer warranty after registration
Max. SPL @ 10 % THD 125 dB, @ 90 Hz, half space
Max. SPL peak @ 10 % THD 128 dB, 40 Hz - x-vver, half space
Frequency response +/-3 dB 48 Hz – x-over
Frequency response -10 dB 44 Hz – x-over
Power amp output bass 1,500 W
Power amp output column 900 W
Amp type Class D
LF driver 1x 15"
Active crossover frequency 160 Hz

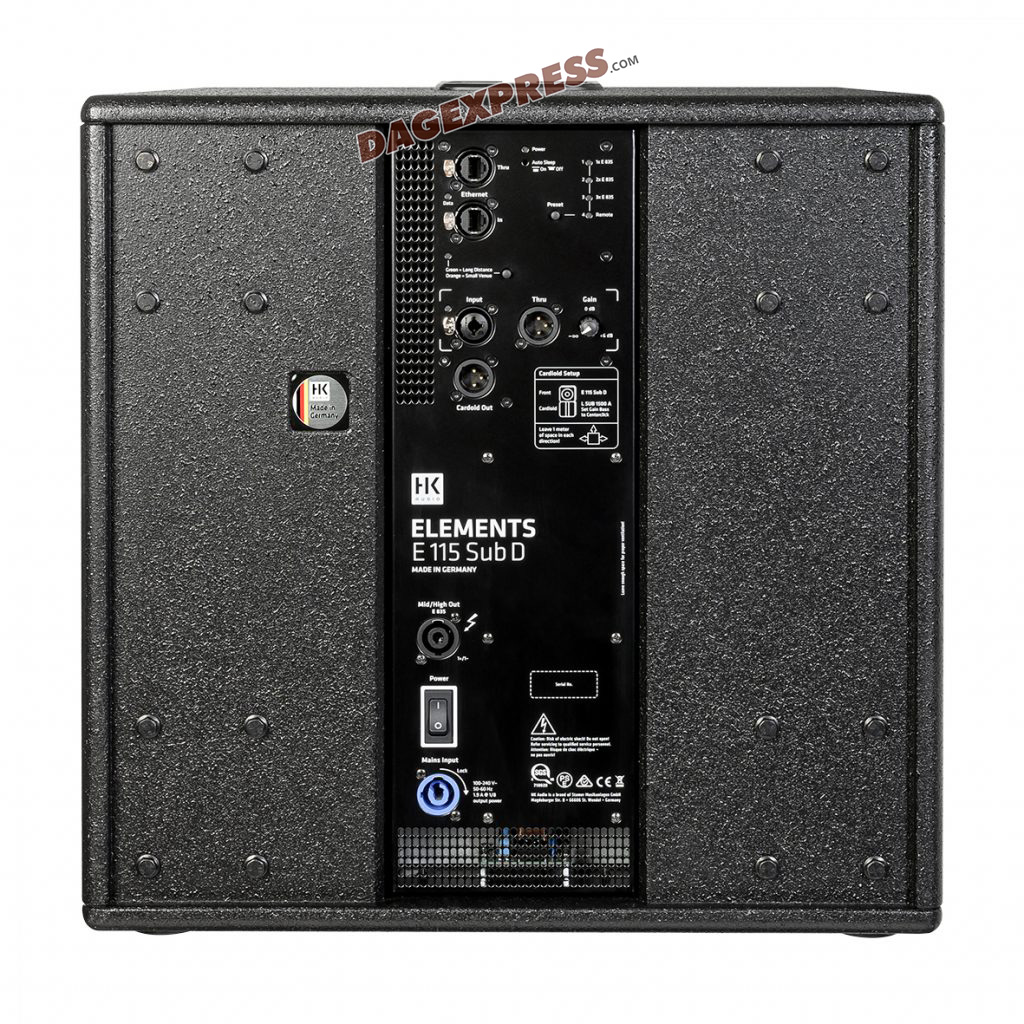

Analog inputs 1x XLR combo balanced
Analog thru 1x XLR balanced
Cardioid out 1x XLR balanced
Network port Ethercon RJ45, 1x In, 1x Thru
Filter presets 1x E 835, 2x E 835, 3x E 835, Remote
Remote software DSP CONTROL (Windows, Mac OS)
DSP-Funktionen Fully parametric 10-band EQ with variable filter characteristics, High-Pass Filter, Low-Pass Filter, Polarity, Level, Delay, Limiter, Mute
Sample rate 96 kHz
System latency Less than 2.6 ms
Mains connector 1x Powercon NAC3 In, 100–240 V
Speaker outputs 1x E-Connect, 1x Speakon
Power consuption 1 A / 100–240 V nominal according to EN 62368-1
Carrying handles 2x MultiGrip
Finish Water-based paint, black
Front grille 2 mm metal grille backed with black acoustic foam
Dimensions (WxHxD) 48.5 x 48.5 x 59.5 cm
Weight 29.6 kg
Network capable and remote controllable
It is possible to network several ELEMENTS E 115 Sub D basses (including in combination with LINEAR 7 series speakers) and control them centrally, for example from the FoH position. The HK Audio DSP CONTROL software for MacOS and Windows is available for this. It allows you to adjust the volume of the system and the lines, as well as a fully parametric 10-band EQ, tunable high and low pass filters, delay times, limiters and other parameters.
Plug & Play Cardioid – control bass radiation simply and effectively
In more and more event situations, there are clear specifications when it comes to sound distribution. The new ELEMENTS E 115 Sub D also has a practical answer to this: To do this, simply connect the inexpensive HK Audio LINEAR SUB 1500 A to the ELEMENTS E 115 Sub D Cardioid Out. The result is a powerful focusing of the forward bass radiation with rear bass attenuation by around 30 dB.
The perfect upgrade for existing ELEMENTS systems
The new ELEMENTS E 115 Sub D system subwoofer is the optimal basis for a advanced equipped, extremely powerful and scalable line system. One advantage in terms of economy and sustainability is that existing E 835 or E 435 mid/high units can also be integrated into the system.
