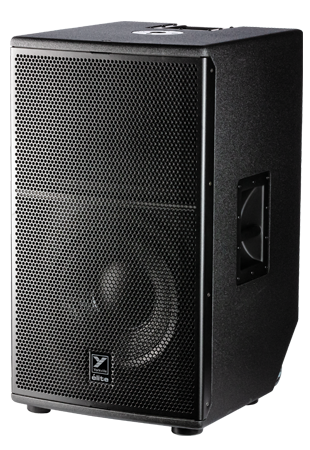

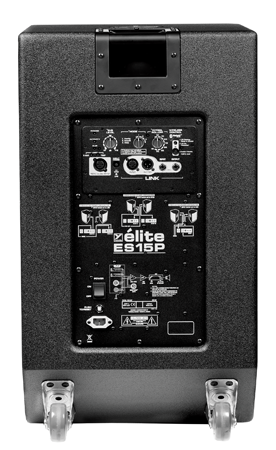

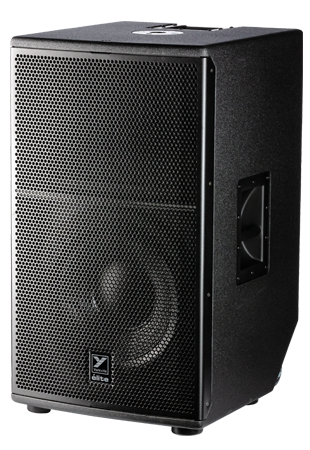

Yorkville ES15P - 1800 watts - powered - 1/15 inch - next generation horn loaded subwoofer - DSP limiters, and 3 performance presets. iOS and Android App for advance subwoofer control - birch plywood & painted finish.

ES15P - 1800 watts - powered - 1/15 inch - next generation horn loaded subwoofer - DSP limiters, and 3 performance presets. iOS and Android App for advance subwoofer control - birch plywood & painted finish.

Enlarge ↗

❮❯

sites/dagexpress/products/Yorkville/thumbnails_60_60/Yorkville-ES15P.jpg

sites/dagexpress/products/Yorkville/thumbnails_60_60/Yorkville-ES15P-1.jpg

Brand	Yorkville ›
Price:	$ 2109.00

DESCRIPTION

Documentation ↗

Features
Next Generation Rear Horn Loaded Powered Subwoofer Design
Class Leading Output and Bass Response
Astonishing Output for a 'Car Friendly' 15-inch Subwoofer
Custom Designed Long Excursion Cast Frame 15-inch Driver with 4-inch Voicecoil
Proprietary DSP Based Limiters for Increased Output, Improved Sonic Quality and Greater Long Term Reliability
Three DSP Based Preset Modes for Increased Flexibility in Any Live Sound or Club Application (Punchy, Smooth or Deep Response Curves)
iOS and Android App for Added Subwoofer Control (Coming Soon)
Made in Canada

Overview
The ES18P is a modern-day update of our flagship 'giant killer', the LS801P. The cabinet dimensions have been altered to offer better mobility, but the punch is still there. We've also added a little-brother to the family, by scaling down the 18" subwoofer design into a 15" platform. The ES15P design dials up the watts and incorporates a custom engineered 15" woofer to produce an astonishing amount of low end output in a 15" subwoofer.

Specifications
System Type Rear Horn Loaded Subwoofer
Active or Passive Active
Power Rating (Watts) 1800 Watts (3600 Watts Peak)
Max SPL (dB) 138dB Peak (132dB Continuous)
Frequency Response (Hz +/- 3dB) 45 - 150 (Hz +/- 3dB)
LF Driver(s) 15-inch Cast Frame Woofer w/4-inch Voicecoil
LF Protection Thermal / Overcurrent (X-max) / Clip
Power Consumption (typ/max) 120V (5.5A / 6.9A), 230V (2.9A / 3.6A)
In / Out Connections 1 x XLR Input
1 x XLR Mono Blend Input
1 x ¼-inch Link Input
1 x ¼-inch Link Output
1 x XLR Link Output
Level Controls Master - Sub Level
LED Indicators Power, Activity, Protection (Clip, X-Max, Temp) &
Other Controls / Features Active Controls: Mode - 1 Punchy, 2 Smooth, 3 Deep
High Frequency Roll-off - 80Hz to 150 Hz
Wheels 2 x Rear tilt-back
Bar Handles 1 x (Top Rear Edge ), 1 x (Bo
Pole Mount Adapter (1 3/8"-3.5cm) 1 (Top) (1 3/8"-3.5cm)
Enclosure Materials 15mm (5/8inch) 11-ply Russian Birch
Covering / Finish Black Ultrathane Paint
Dimensions (DWH xbackW, inches) 21 x 18 x 32
Dimensions (DWH xbackW, cm) 53.3 x 45.7 x 81.3
Weight (lbs/kg) 110 / 50
Specifications subject to change without notice
