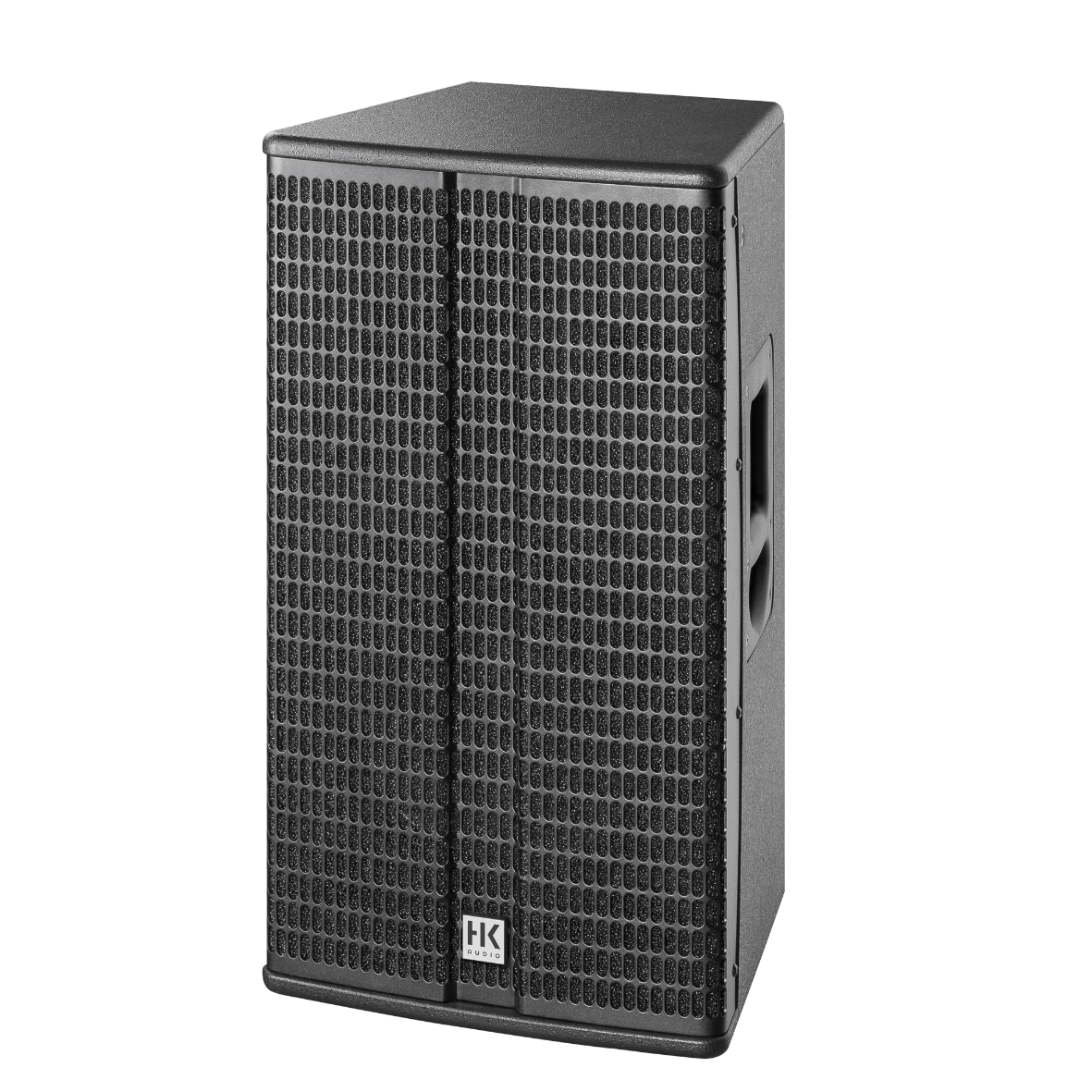

HK Audio L3-112FA - HK AUDIO LINEAR 3 112 FA



L3-112FA - HK AUDIO LINEAR 3 112 FA
L3-112FA - HK AUDIO LINEAR 3 112 FA
Enlarge ↗
BrandHK Audio ›
Price:$ 919.00




DESCRIPTION
The active 12″/1″ full-range mid/high unit is incredibly powerful with its 1,200 watts of power. The four different EQ presets – Bass Boost, Flat (LF), Flat (HMF) and Contour – also make it suitable for a wide range of applications and offer top performance and easy handling in every situation.

Technical data
Max. SPL @ 10% THD 126 dB half space (70 Hz – 12 kHz averaged)
Max. SPL peak @ 10 % THD 135 dB half space
Frequency response +/-3 dB 65 Hz – 19 kHz
Frequency response -10 dB 58 Hz – 18 kHz
Power amp output (peak power) 1200 W
Preamp DSP (Time Alignment)
Amp type Class D - biamped
Active protective circuits Under-voltage, thermal, short circuit, over-current protection, subsonic filter, look ahead temperature control, peak, RMS and multiband limiters
Low-/mid speaker 1x 12", 2" voice coil
HF driver 1", 1" voice coil
Horn directivity 90° x 55° CD horn
Active crossover frequency 2.3 kHz FIR X-over with 72 dB/oct.

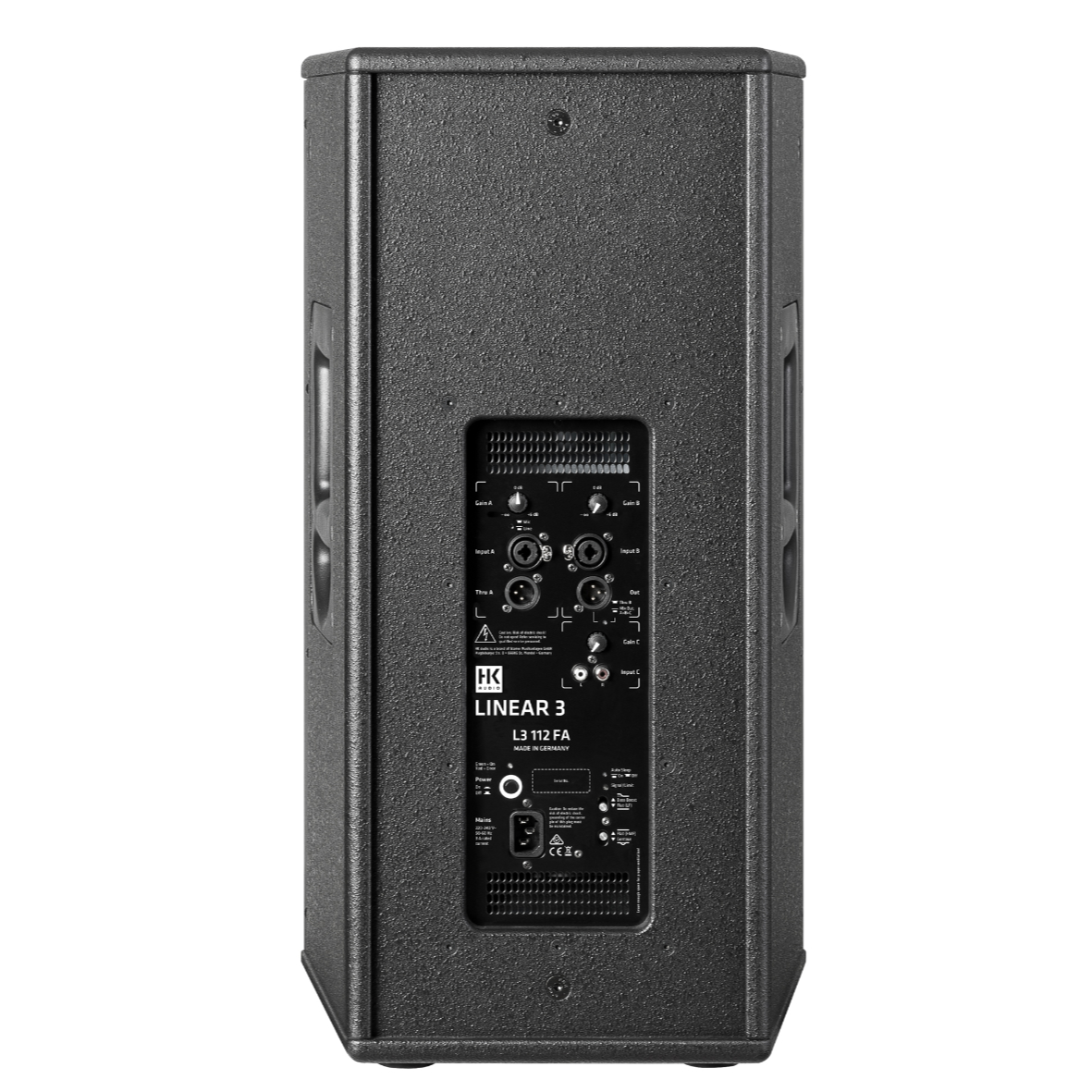

Analog inputs 2x XLR combo balanced, 1x Stereo RCA
Analog outputs 2x XLR Thru balanced, 1x XLR Mix Out
Input sensitivity +4 dBu @ Gain center-notched
Sensitivity switch Line/Mic Input A
Filter presets 2 EQ switches: Bass Boost/Flat & Flat/Contour
Mains connector 1x IEC socket with V-Lock cord retainer
Power consumption 3 A / 220-240 V (6 A / 100-120 V) nominal according to EN 60065
Pole mount DuoTilt 3°/7°
Rigging points 4x M8 (AP-8)
Carrying handles 2x MultiGrip
Housing 16 mm MDF
Finish Black acrylic enamel
Front grille 2 mm metal grille backed with black acoustic foam
Dimensions (WxHxD) 36 x 66 x 36.7 cm 14-11/64 x 26 x 14-31/64"
Weight 21.5 kg / 47.4 lbs
