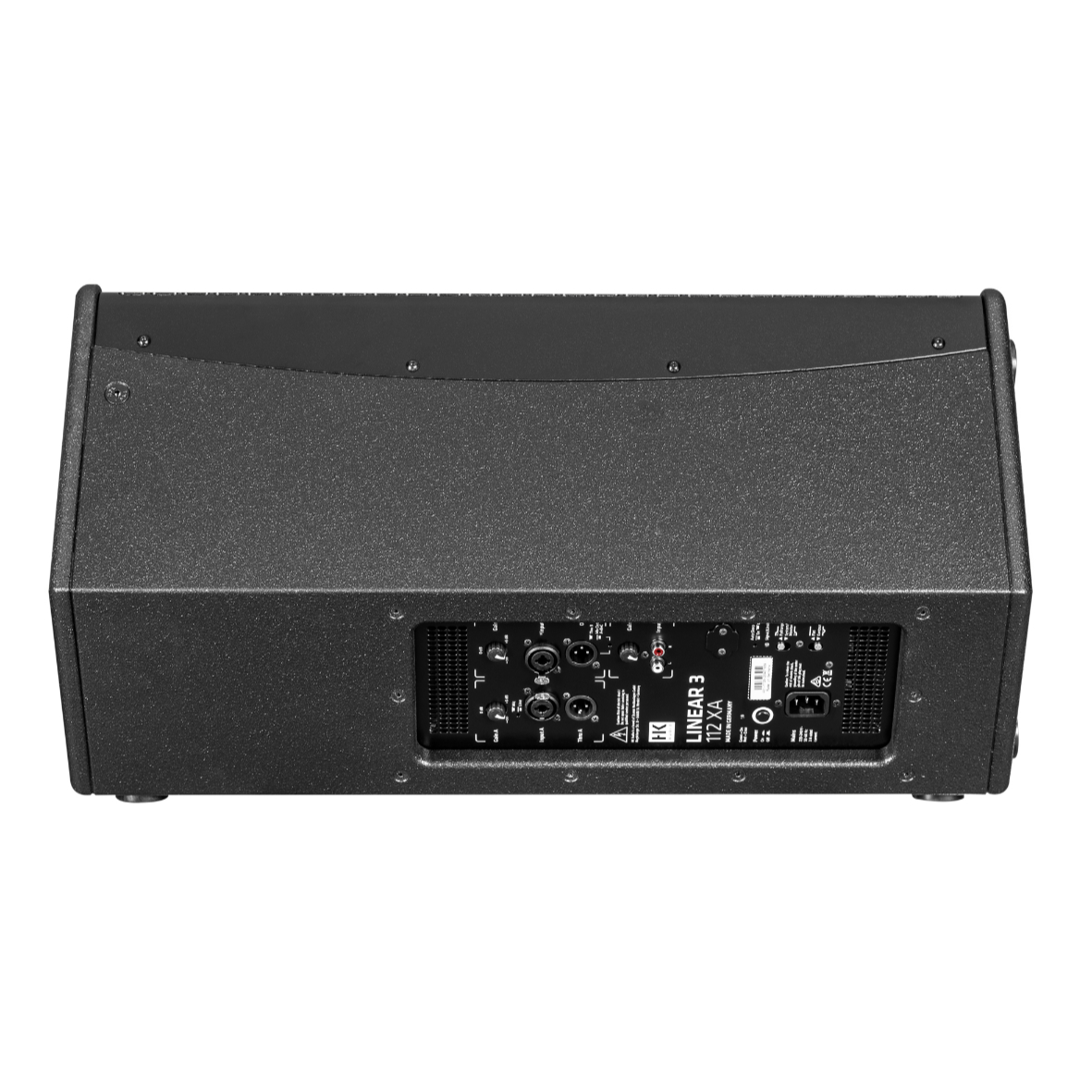

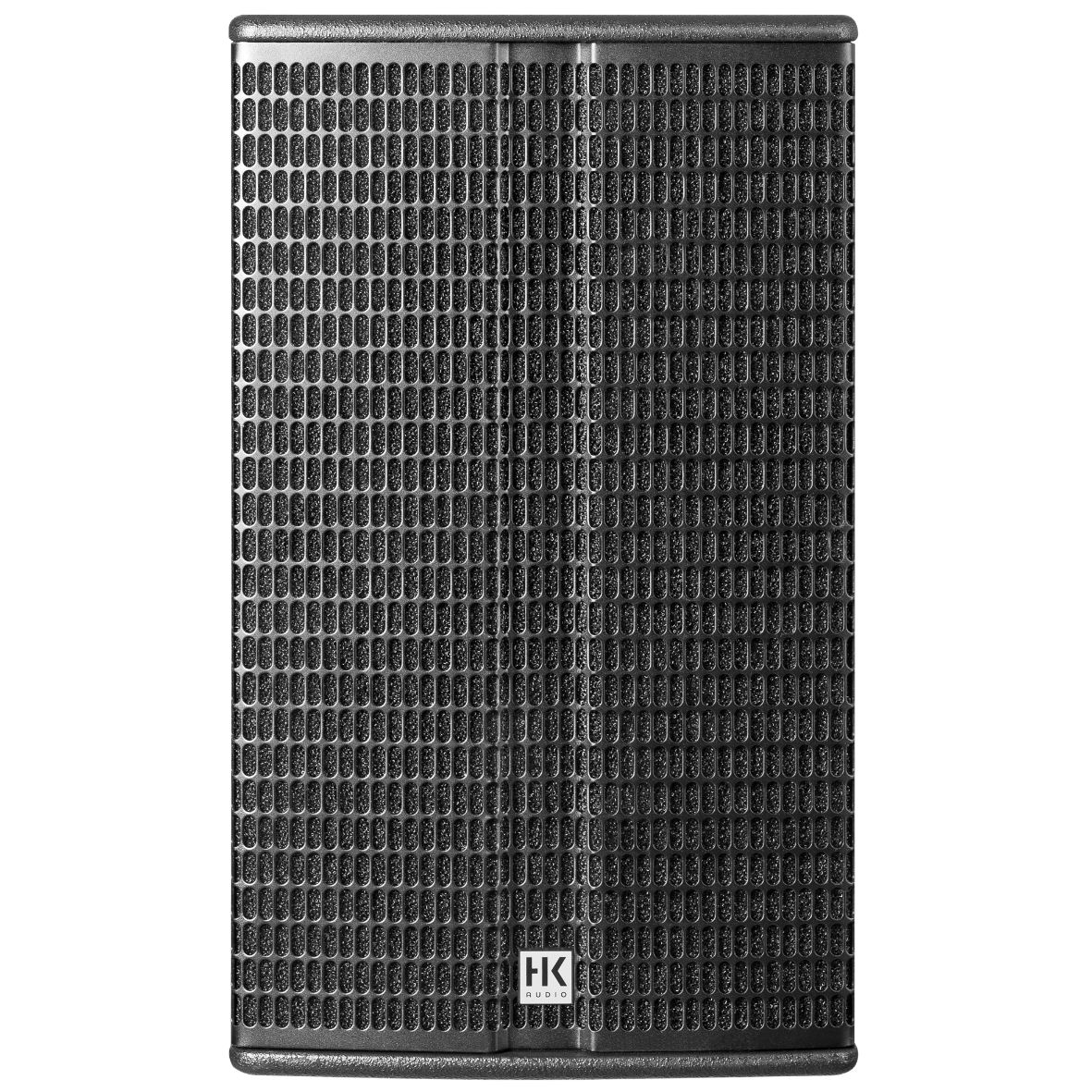

HK Audio L3-112XA - HK AUDIO LINEAR 3 112 XA

Enlarge ↗

❮❯

sites/dagexpress/products/Yorkville/thumbnails_60_60/HK-Audio-L3-112XA.jpg

sites/dagexpress/products/Yorkville/thumbnails_60_60/HK-Audio-L3-112XA-1.jpg

Brand	HK Audio ›
Price:	$ 919.00

DESCRIPTION

The active 12″/1″ speaker is extremely flexible thanks to its multifunctional cabinet. It is suitable for use both as a front PA with ample cabinet volume and as an assertive stage monitor.

Technical data
Max. SPL @ 10% THD 126 dB half space (70 Hz – 12 kHz averaged)
Max. SPL peak @ 10 % THD 135 dB half space
Frequency response +/-3 dB 67 Hz – 18 kHz
Frequency response -10 dB 62 Hz – 18 kHz
Power amp output (peak power) 1200 W
Preamp DSP (Time Alignment)
Amp type Class D - biamped
Active protective circuits Under-voltage, thermal, short circuit, over-current protection, subsonic filter, look ahead temperature control, peak, RMS and multiband limiters
Low-/mid speaker 1x 12", 2" voice coil
HF driver 1", 1" voice coil
Horn directivity 90° x 50° CD horn
Active crossover frequency 2.3 kHz FIR X-over with 72 dB/oct.
Analog inputs 2x XLR combo balanced, 1x Stereo RCA
Analog outputs 2x XLR Thru balanced, 1x XLR Mix Out
Input sensitivity +4 dBu @ Gain center-notched
Sensitivity switch Line/Mic Input A
Filter presets 2 EQ switches: Bass Boost/Flat & Flat/Contour
Mains connector 1x IEC socket with V-Lock cord retainer
Power consumption 3 A / 220-240 V (6 A / 100-120 V) nominal according to EN 60065
Angels up (Monitor angle) 33°
Pole mount DuoTilt 3°/7°
Rigging points 4x M8 (AP-8)
Carrying handles 1x SingleGrip, 1x MultiGrip
Housing 16 mm MDF
Finish Black acrylic enamel
Front grille 2 mm metal grille backed with black acoustic foam
Dimensions (WxHxD) 39.5 x 66 x 34 cm 15-9/16 x 26 x 13-25/64"
Weight 20.6 kg / 45.5 lbs
