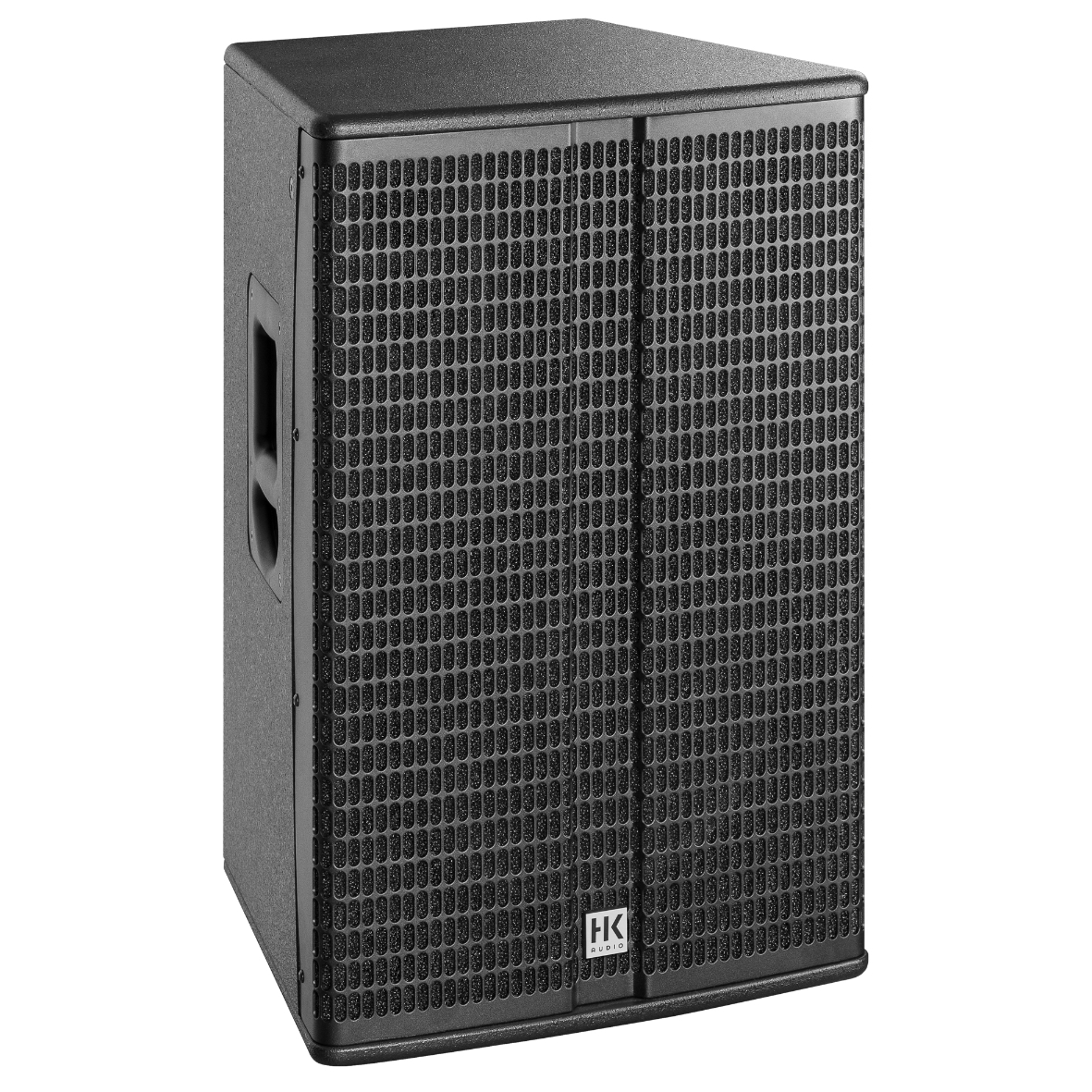

HK Audio L3-115FA - HK AUDIO LINEAR 3 115 FA



L3-115FA - HK AUDIO LINEAR 3 115 FA  L3-115FA - HK AUDIO LINEAR 3 115 FA
Enlarge ↗
BrandHK Audio ›
Price:$ 1099.00




DESCRIPTION
Compared to the 12″ version, the active 15″/1″ speaker offers even more depth with the same features. Especially in standalone use, it impresses with powerful bass and a balanced, crystal-clear sound across the entire frequency spectrum.

Technical data
Max. SPL @ 10% THD 126 dB half space (58 Hz – 12 kHz averaged)
Max. SPL peak @ 10 % THD 135 dB half space
Frequency response +/-3 dB 58 Hz – 16 kHz
Frequency response -10 dB 49 Hz – 18 kHz
Power amp output (peak power) 1200 W
Preamp DSP (Time Alignment)
Amp type Class D - biamped
Active protective circuits Under-voltage, thermal, short circuit, over-current protection, subsonic filter, look ahead temperature control, peak, RMS and multiband limiters
Low-/mid speaker 1x 15", 2.5" voice coil
HF driver 1", 1" voice coil
Horn directivity 90° x 55° CD horn
Active crossover frequency 2.3 kHz FIR X-over with 72 dB/oct.
Analog inputs 2x XLR combo balanced, 1x Stereo RCA
Analog outputs 2x XLR Thru balanced, 1x XLR Mix Out
Input sensitivity +4 dBu @ Gain center-notched
Sensitivity switch Line/Mic Input A
Filter presets 2 EQ switches: Bass Boost/Flat & Flat/Contour
Mains connector 1x IEC socket with V-Lock cord retainer
Power consumption 3 A / 220-240 V (6 A / 100-120 V) nominal according to EN 60065
Pole mount DuoTilt 3°/7°
Rigging points 4x M8 (AP-8)
Carrying handles 2x MultiGrip
Housing 16 mm MDF
Finish Black acrylic enamel
Front grille 2 mm metal grille backed with black acoustic foam
Dimensions (WxHxD) 44 x 69 x 44.5 cm 17-21/64 x 27-11/64 x 17-33/64"
Weight 27.9 kg / 61.5 lbs
